Ins t a ll i n g a n d co n n ec t i n g | Se t t ing t h e s wit c hin g p o i nts o f a n e le c t ro n i c hoi s t li m it s wi tch
26

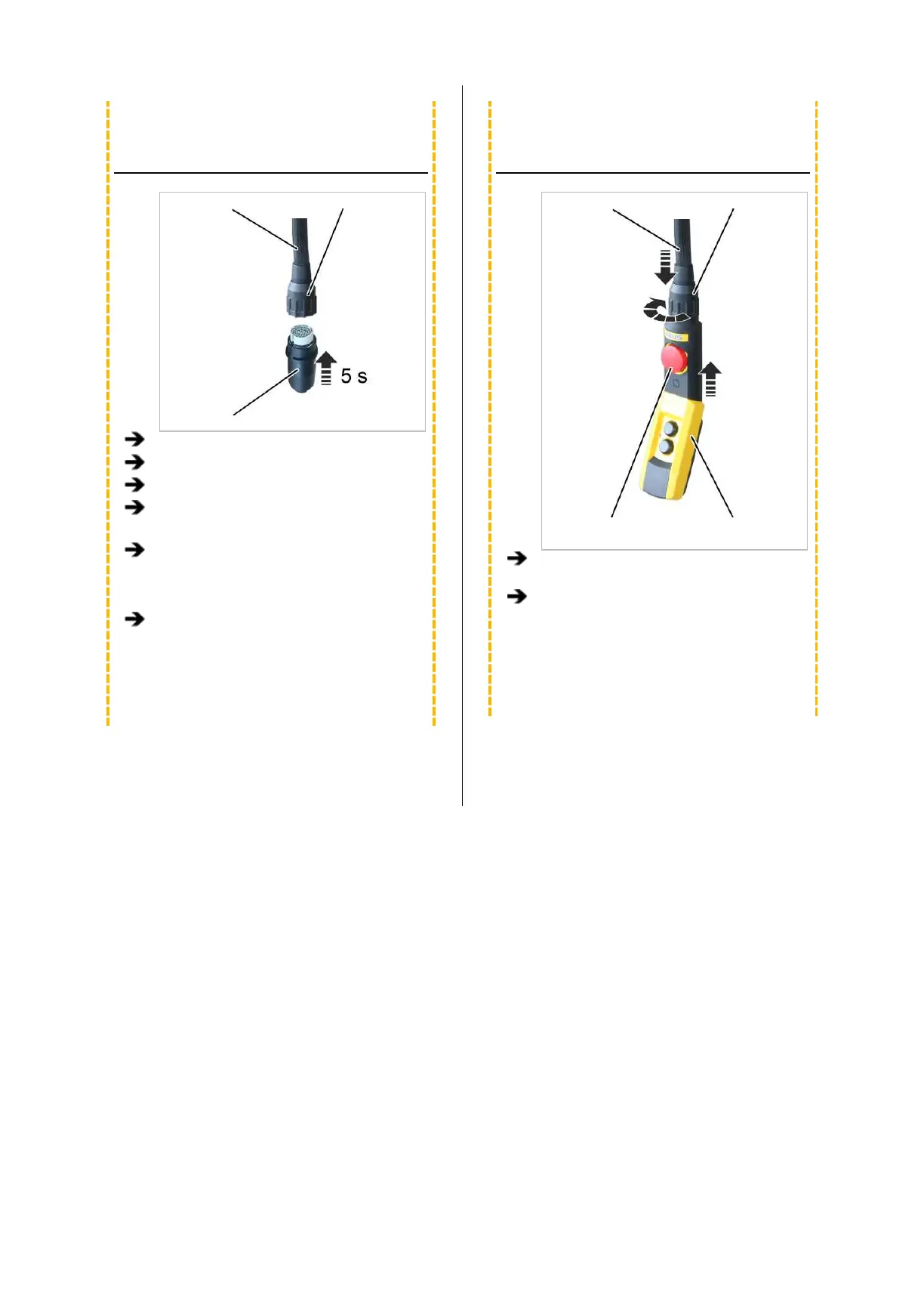

INSERTING THE TEACH-IN
MODULE
Control cable Bayonet nut
Teach-in module
Remove the pendant control.
Insert the teach-in module.
Wait at least 5 s.
Remove the teach-in module.
Only with pendant control with teach-in
button: Instead of inserting the teach-in
module, press and hold the teach-in button
for 5 seconds.
Only with ABURemote AC with teach-in:
Instead of inserting the teach-in module,
press and hold the “teach-in” direct access
button (T with arrow) for 5 seconds.
INSERTING THE PENDANT
CONTROL
Control cable Bayonet coupling
Emergency stop
button
Pendant control
Only with teach-in module: Insert pendant
control.
Only with teach-in module: Unlock
emergency stop button.
● The upper switching point is saved.
