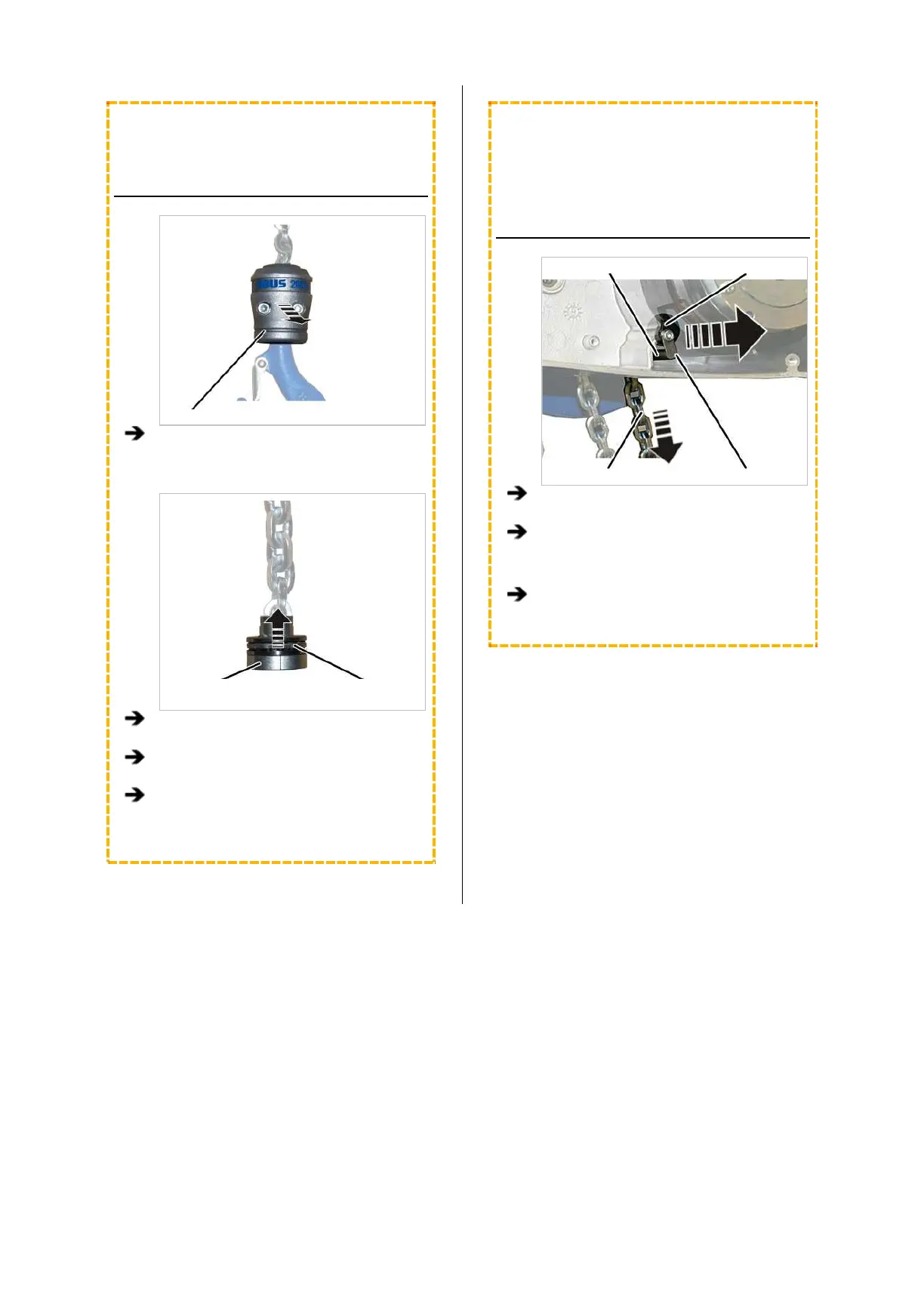

Ma in t e nan c e | Exch a ng i ng t h e c h ain a nd c h ai n s p r o ck e t

ONLY FOR SINGLE-FALL CHAIN

HOISTS

DISASSEMBLING THE LOAD HOOK

Hook assembly

Screw the hook assembly apart.

Chain fastening

element half

Deep groove ball

thrust bearing

Push the three-piece deep groove ball

thrust bearing upward.

Remove both chain fastening element

halves from the chain.

Note the layout position of the deep groove

ball thrust bearing and remove it from the

chain.

ONLY FOR TWIN-FALL CHAIN

HOISTS GM2 AND GM4

DISASSEMBLING THE BOTTOM

BLOCK AND CHAIN ANCHOR

POINT

Bolt Brake bearing shield

Second fall Tab washer

Unscrew the tab washer on the brake

bearing shield.

Hold the second fall while pulling out the

bolt.

● The chain is now released.

Pull the chain out of the bottom block on the

load hook.
