Ma in t e nan c e | Exch a ng i ng t h e c h ain a nd c h ai n s p r o ck e t
47

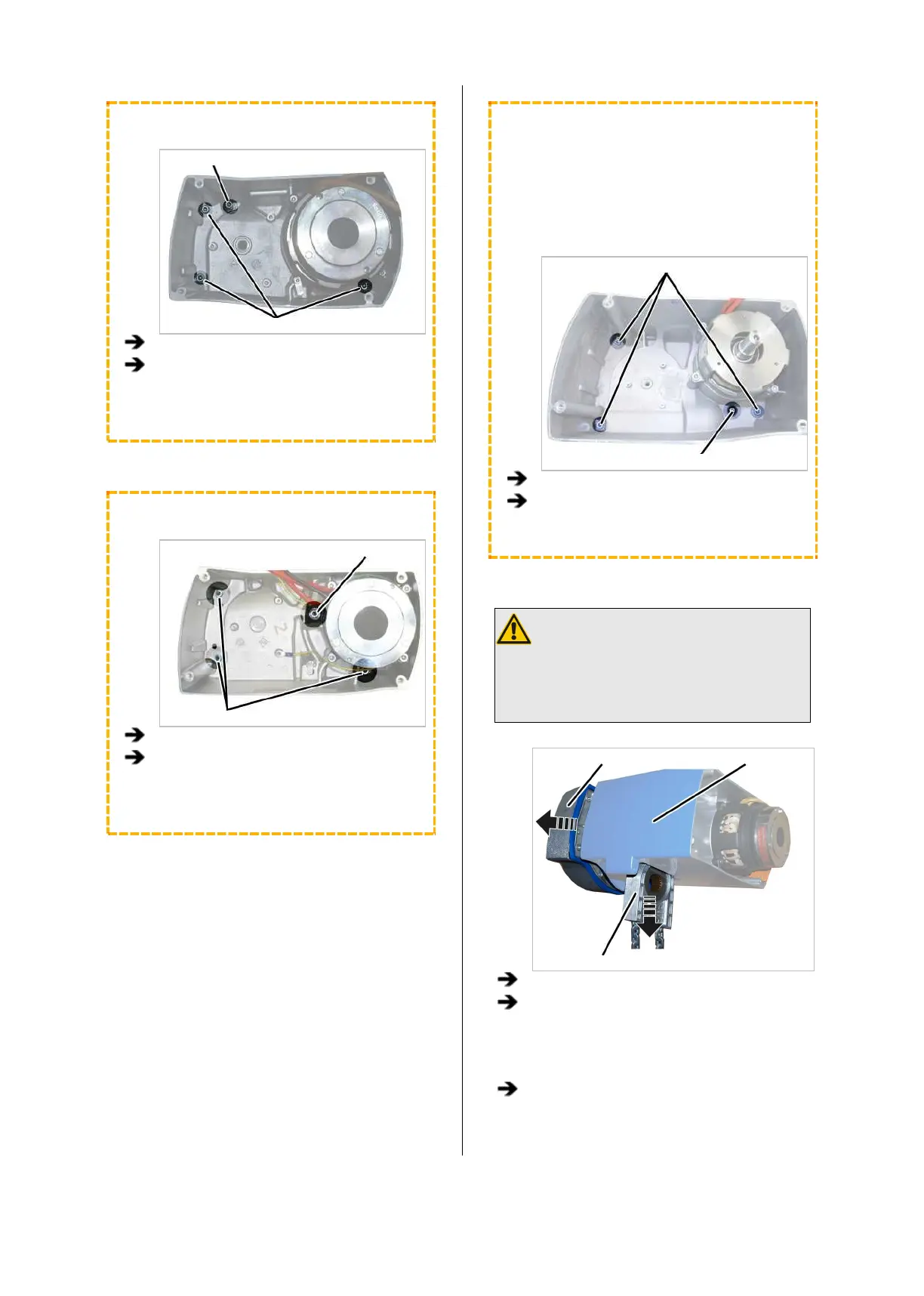

ONLY FOR GM4
Locking screw
Fillister-head screws
Unscrew the fillister-head screws (3x).
Leave the locking screw tightened.
It later ensures that the gear unit cannot not
fall down.
ONLY FOR GM6
Locking screw
Fillister-head screws
Unscrew the fillister-head screws (3x).
Leave the locking screw tightened.
It later ensures that the gear unit cannot not
fall down.
ONLY FOR GM8
Tip:
The chain guide, chain and gear unit of the chain
hoist are very heavy. Therefore unhook the chain
hoist and remove the chain guide lying flat.
Fillister-head screws
Locking screw
Unscrew the fillister-head screws (3x).
Leave the locking screw tightened.
It later ensures that the gear unit cannot not
fall down.
CAUTION
-
DANGER OF
INJURY!
When pulling off the gear unit, the
chain guide can fall down and injure
people. Hold the chain guide firmly
or otherwise secure it!
Gear unit Housing
Chain guide
Hold the chain guide firmly.
Pull the gear unit from the housing.
The locking screw secures the gear unit so that
it need not be completely removed.
● The chain guide is now released.
Pull the entire chain guide downward out of the
housing.
