Ma in t e nan c e | Exch a ng i ng t h e c h ain a nd c h ai n s p r o ck e t
52

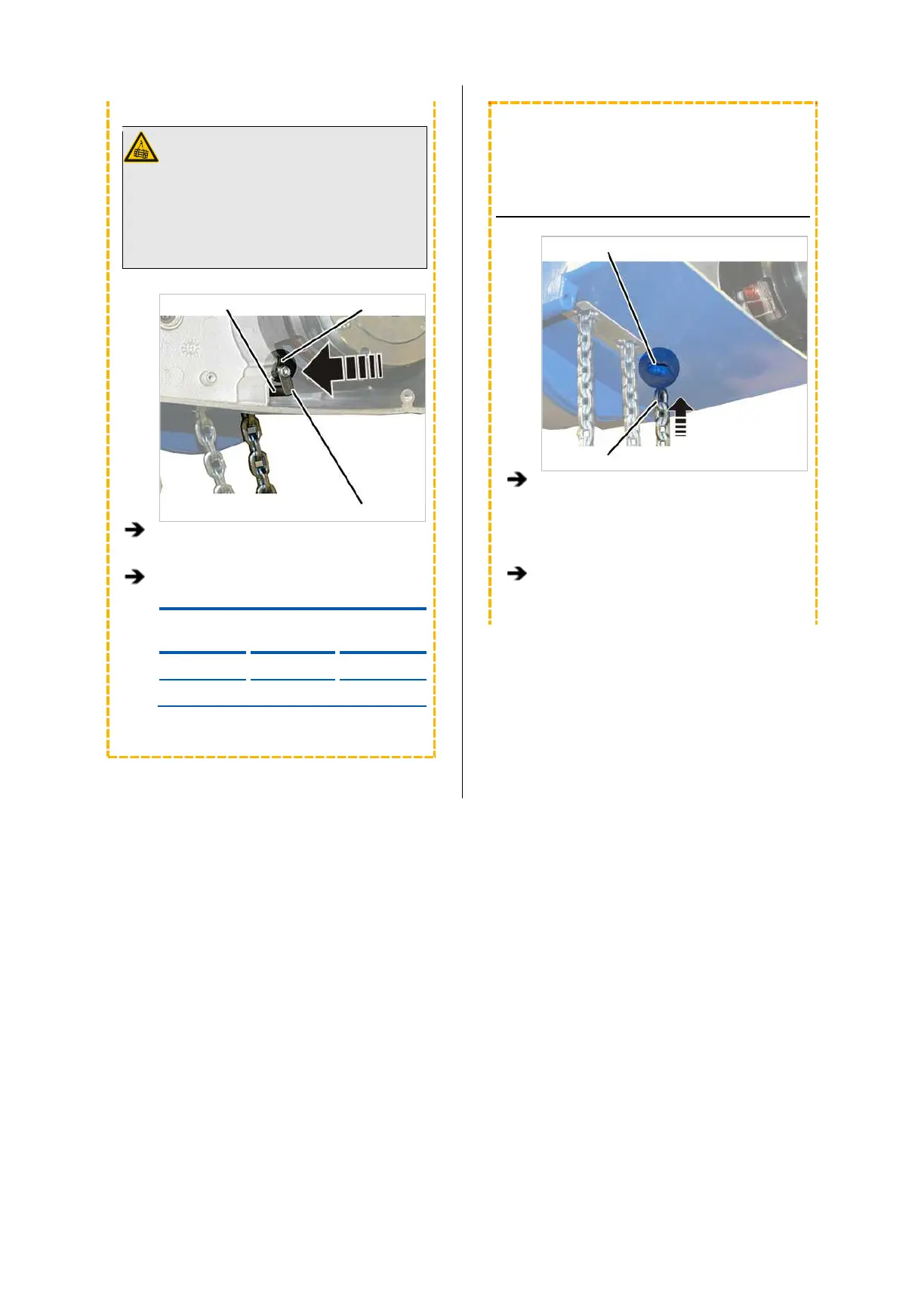

SUSPENDED LOAD!
The bolt can become loosened by
vibration. The chain and load
could fall, injuring or killing people.
Bolt on the tab washer!
Bolt Brake bearing shield
Tab washer
Insert the bolt.
● The second fall is now held by the bolt.
Bolt the tab washer with fillister-head screw
onto the brake bearing shield.
Size Type and
length
Tightening
torque
GM2 M5x20 4 Nm
GM4 M5x20 4 Nm
ONLY FOR TWIN-FALL CHAIN
HOIST GM6
INSTALLING THE CHAIN ANCHOR
POINT
Chain anchor point
Second fall
Turn the chain so that it is straight and push
the second fall from below into the chain
anchor point.
The chain should not be allowed to twist as
it is pushed into the chain anchor point.
If necessary: Remove a single chain link so
that the second fall can be inserted straight.
