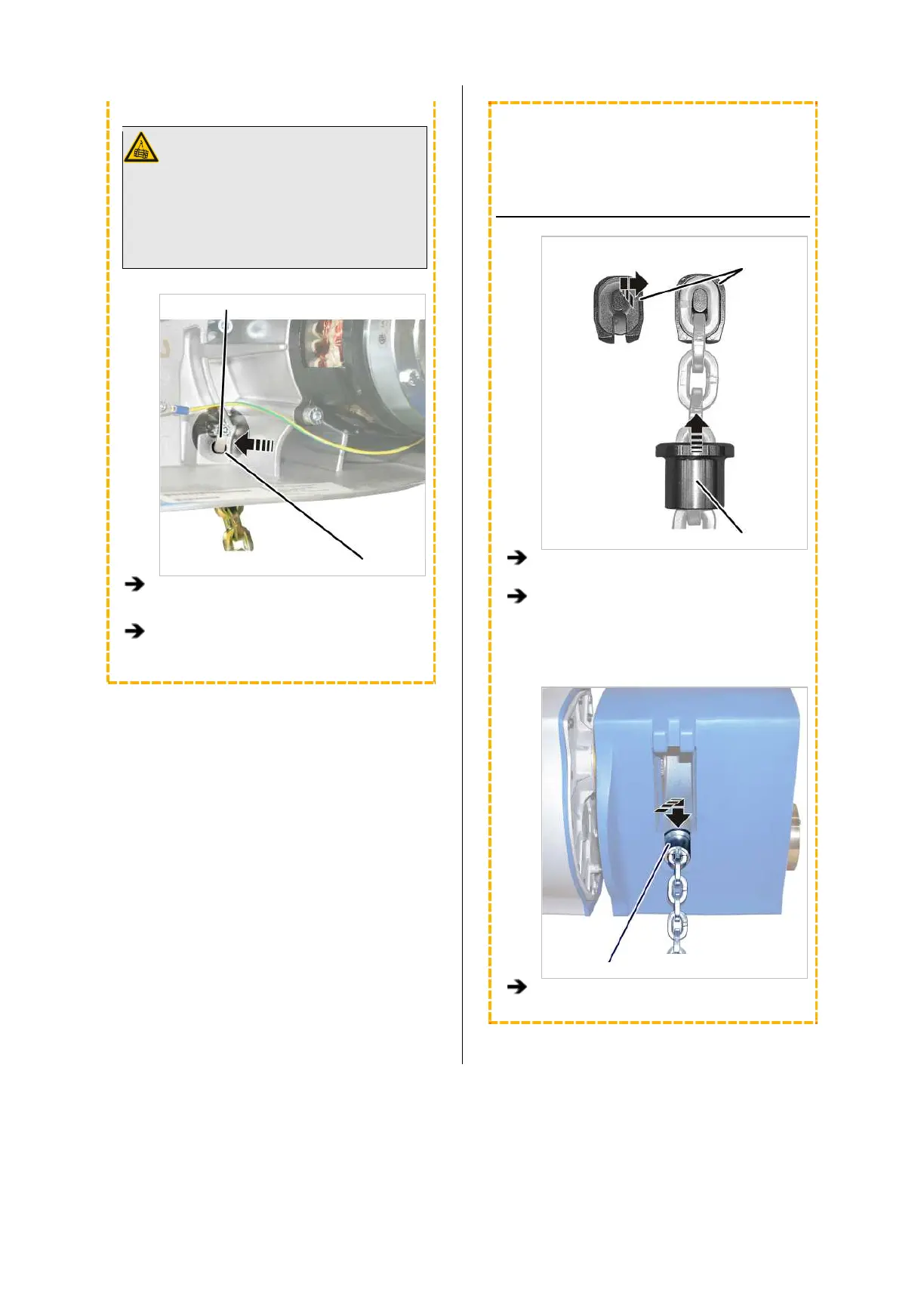

Ma in t e nan c e | Exch a ng i ng t h e c h ain a nd c h ai n s p r o ck e t

DANGER FROM FALLING

SUSPENDED LOAD!

The bolt can become loosened by

vibration. The chain and load

could fall, injuring or killing people.

Bolt on the tab washer!

Tab washer

Bolt

Insert the bolt.

● The second fall is now held by the bolt.

Bolt on the tab washer with the M5x10

fillister-head screw. 3 Nm.

ONLY FOR TWIN-FALL CHAIN

HOIST GM8

INSTALLING THE CHAIN ANCHOR

POINT

Chain fastening

element halves

Flange sleeve

Push the flange sleeve onto the second fall

of the chain.

Place the chain fastening element halves

from both sides on the last chain link and

slide a flange sleeve over it.

Flange sleeve

Push the flange sleeve into the housing.
