Main t e nan c e | Ref e r e n c ing t he e l ect r o nic h ois t l i m i t swi t c h
61
Overview of referencing the hoist limit
switch:
(Described in detail below)
─ Switch off the chain hoist, wait 30 seconds,
then switch on the chain hoist again.
─ Only with teach-in module: Remove the
pendant control, plug in the teach-in
module, wait 5 seconds, then remove the
teach-in module and insert the pendant
control.
Only with pendant control with teach-in
button: Press teach-in button for 5 seconds.
Only with ABURemote AC with teach-in:
Press “teach-in” direct access button (T
with arrow) for 5 seconds.
─ Move to the reference point. This
should be
as high up as possible without the load
hook coming into contact with the housing.
─ The last movement command before teach-
in must be the “Lift” button.
─ Only with teach-in module: Remove the
pendant control, plug in the teach-in
module, wait 5 seconds, then remove the
teach-in module and insert the pendant
control.
Only with pendant control with teach-in
button: Press teach-in button for 5 seconds.
Only with ABURemote AC with teach-in:
Press “teach-in” direct access button (T
with arrow) for 5 seconds.
SWITCHING THE CHAIN HOIST OFF
AND ON

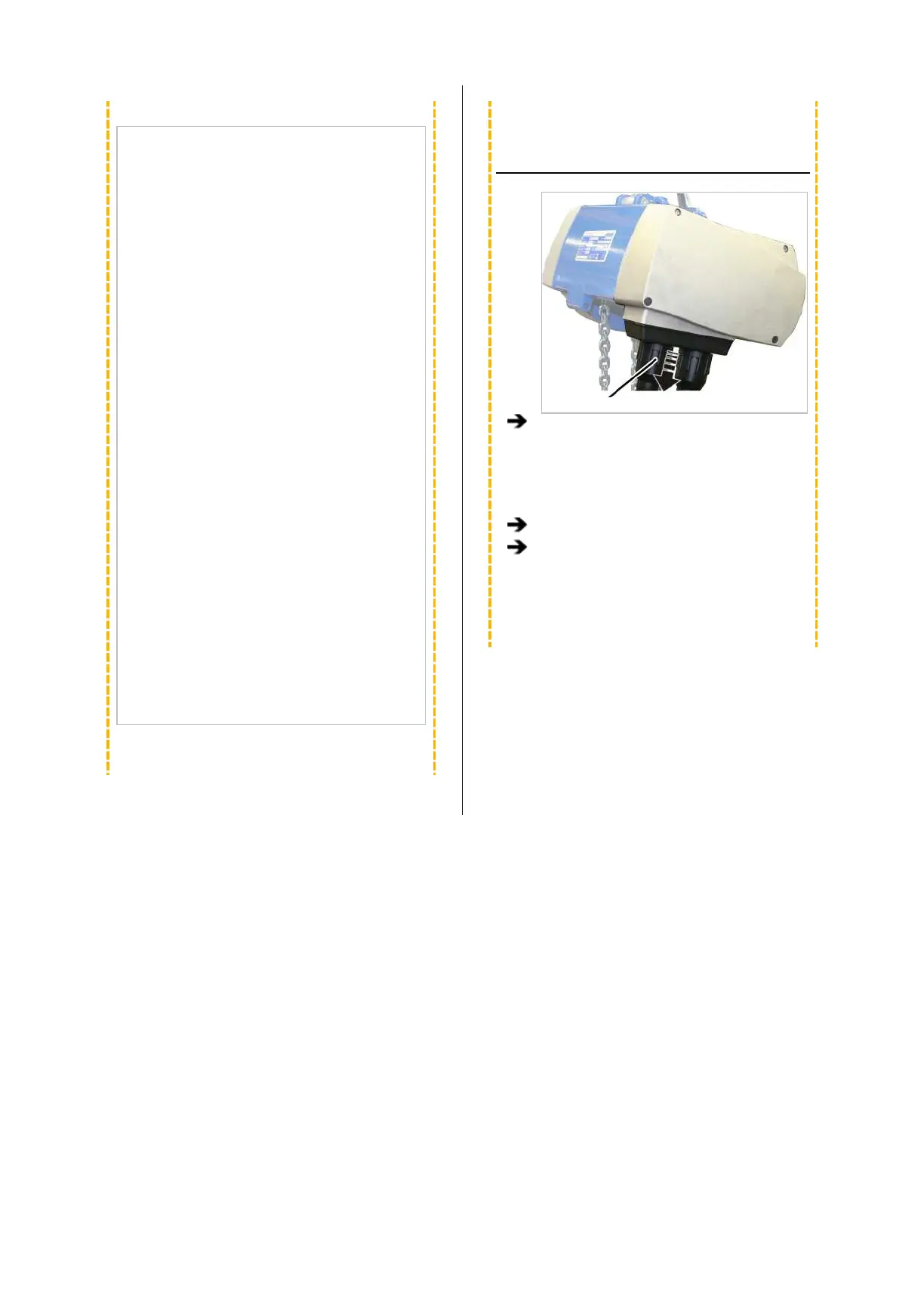

Connection cable
Loosen the bayonet nut and unplug the
connection cable.
Or:
Switch off the chain hoist at the mains
switch.
Wait at least 30 s.
Plug in the connection cable.
Or
Switch on the chain hoist at the mains
switch.
