Accu-Chek Aviva User Manual

You need the meter, a test strip, a lancing device with a drum loaded, and the AST cap from the kit.

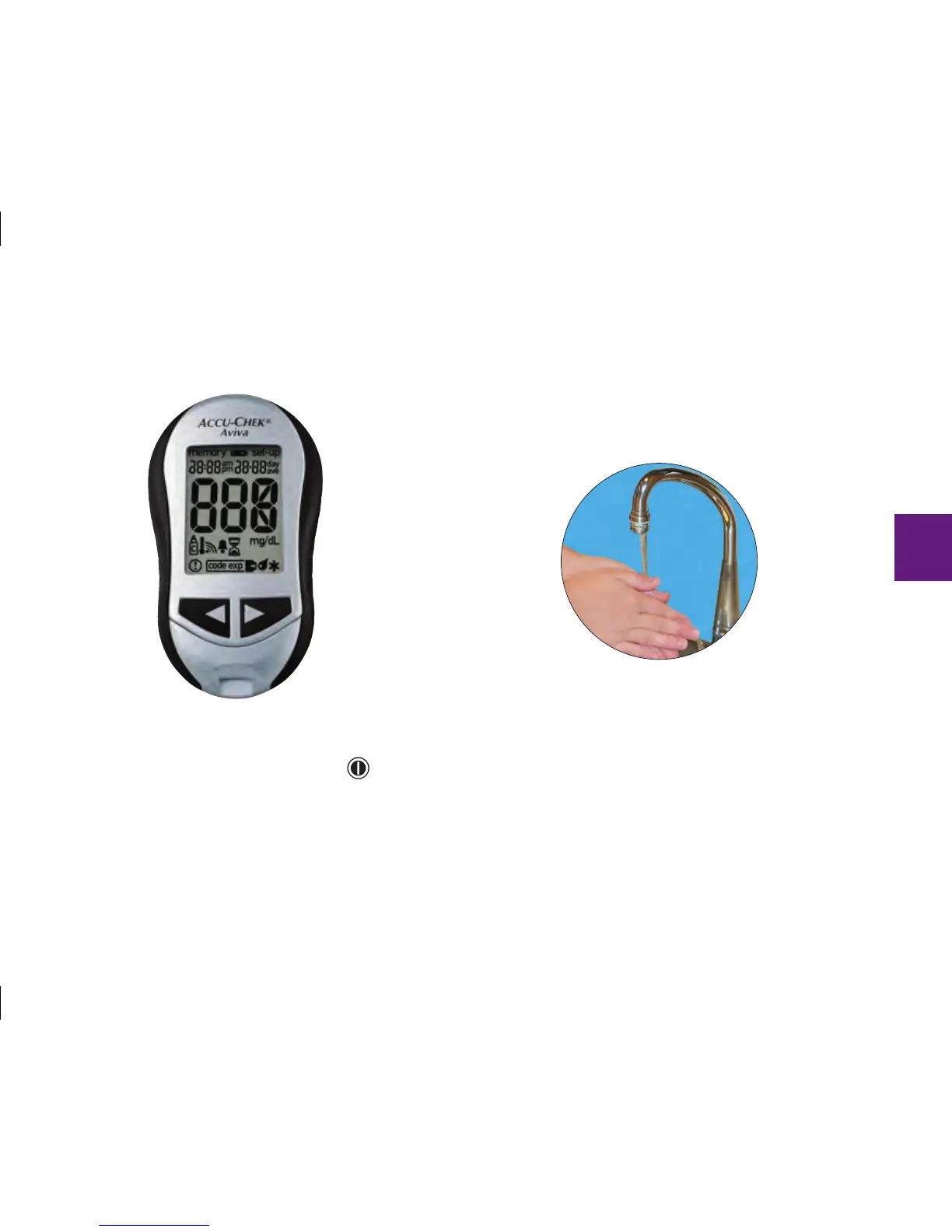

1. To make sure the display is working properly, turn
o the meter, then press and hold
to see the
complete display. All segments should be clear
and look exactly like the picture. If any segments
are missing from the display, there may be a
problem with the meter. Contact the ACCU‑CHEK
Customer Care Service Center at
1‑800‑858‑8072.
2. Wash your hands and the test site with warm,
soapy water and dry thoroughly.
41

Accu-Chek Aviva Specifications

General

Sample Size	0.6 µL
Test Time	5 seconds
Coding	No coding required
Battery Life	Approximately 1000 tests
Memory	500 test results
Battery Type	1 x 3V lithium (CR2032)
Operating Humidity	10% to 90% RH
Meter Weight	59 g
Measuring Range	10 mg/dL to 600 mg/dL
Automatic Shut Off	After 90 seconds of inactivity
