Accu-Chek Compact Plus Reference Manual

142

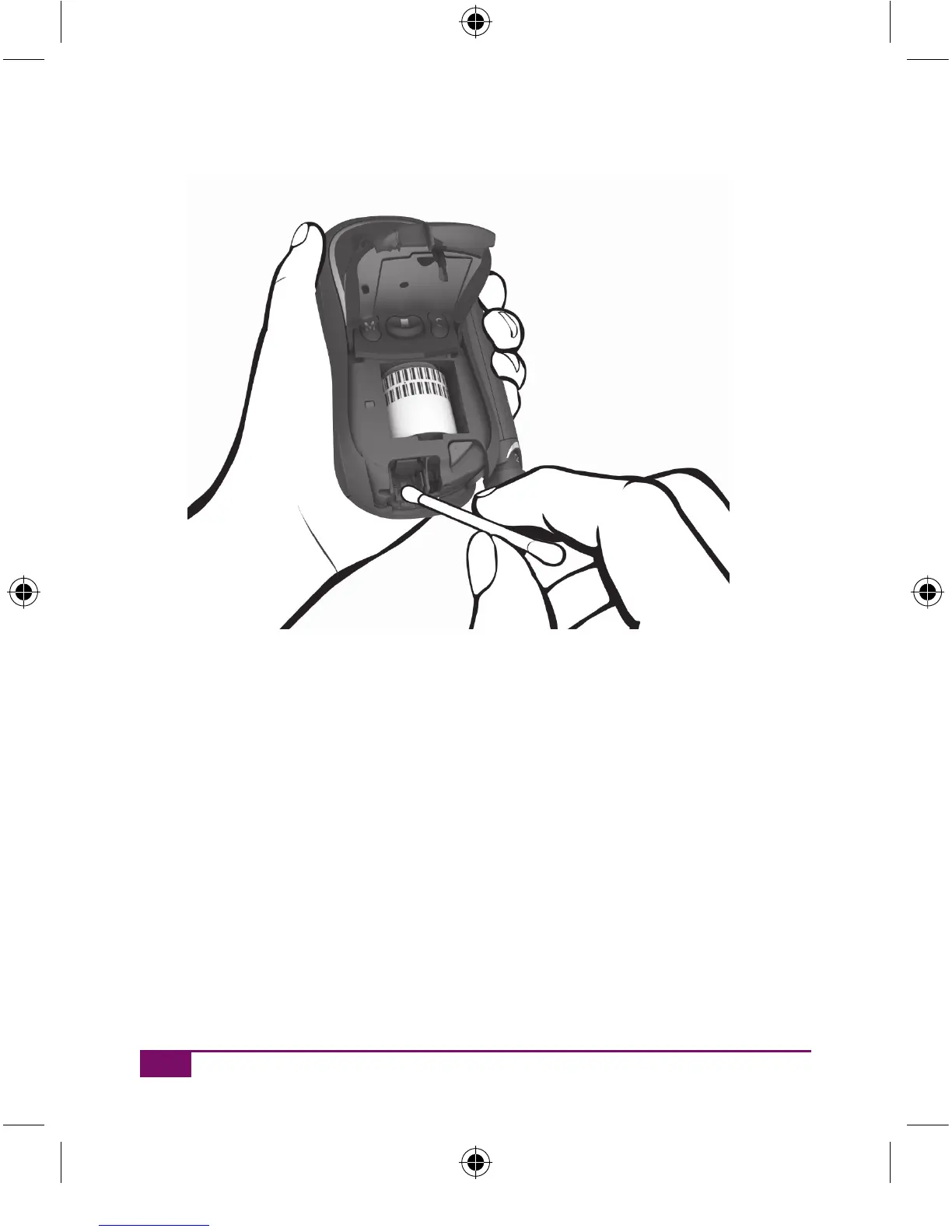

Cleaning the meter and finger pricker
 Wipe the measuring window and the area surrounding it with a cot-
ton swab lightly moistened with cold water or 70 % ethanol.
 Remove any fluff or lint that may remain.
 Allow areas you have wiped time to dry thoroughly.
 Fold the drum compartment cover down and press it shut. There will
be an audible CLICK.
 Perform a performance check (see Chapter 7).
AC_CP_LCM_Manual_EN-UK final.indd 142_CP_LCM_Manual_EN-UK final.indd 142 20.6.2007 11:04:3320.6.2007 11:04:33

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
