Accu-Chek Compact Plus Reference Manual

58
Settings

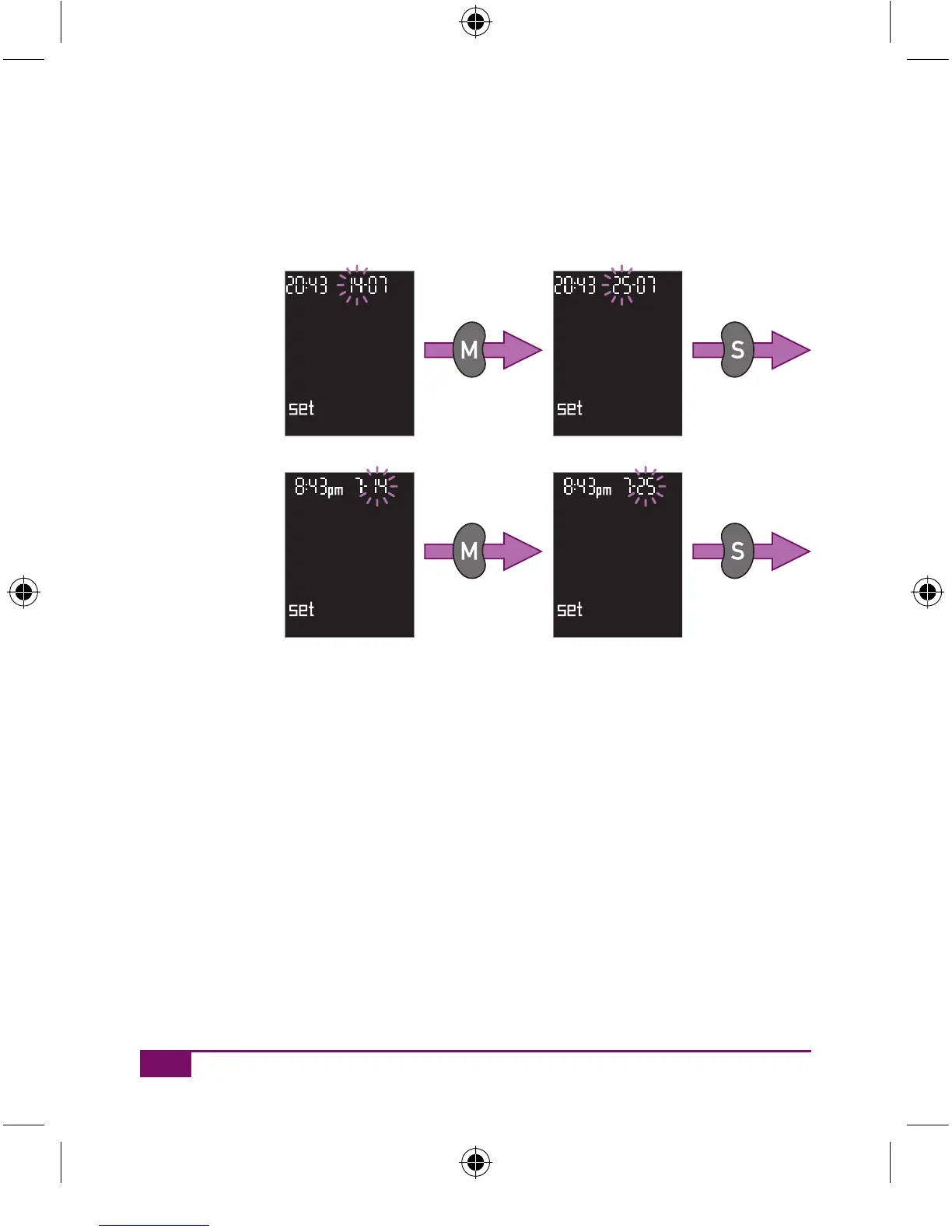

The day flashes at top right of the display.
 Press the M button repeatedly, or press and hold it down, until the
required day is displayed.
 Press the S button to save the chosen setting.
The alarm clock settings come next.
24-hour format
(DD-MM)
12-hour format
(MM-DD)
AC_CP_LCM_Manual_EN-UK final.indd 58_CP_LCM_Manual_EN-UK final.indd 58 20.6.2007 11:04:0720.6.2007 11:04:07

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
