Altos RAIDWatch User Guide

5 Click OK to save the new channel configuration into the non-volatile memory (NVRAM) of the

controller. You will be prompted for a password in order to complete the changes.

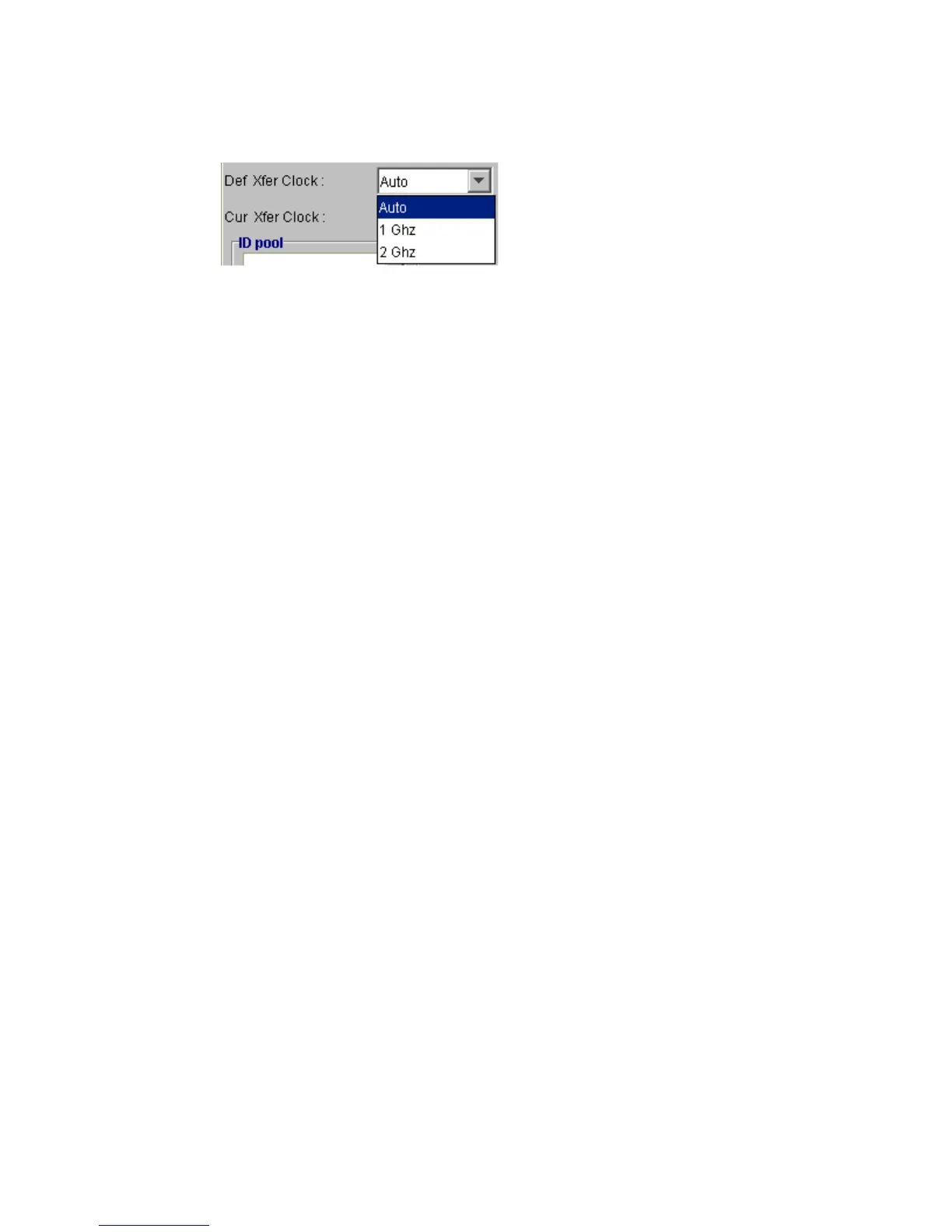

Figure 7–3 Def Xfer Clock options
