Acer Aspire 7560 User Manual

Machine Maintenance Procedures 3-27
Upper Cover Removal 0
NOTE:
NOTE:
Only the secondary HDD module is a prerequisite to remove the upper cover.
Prerequisite:
Main and Secondary HDD Module Removal
1. Remove screws (A) from lower cover. (Figure 3-29)

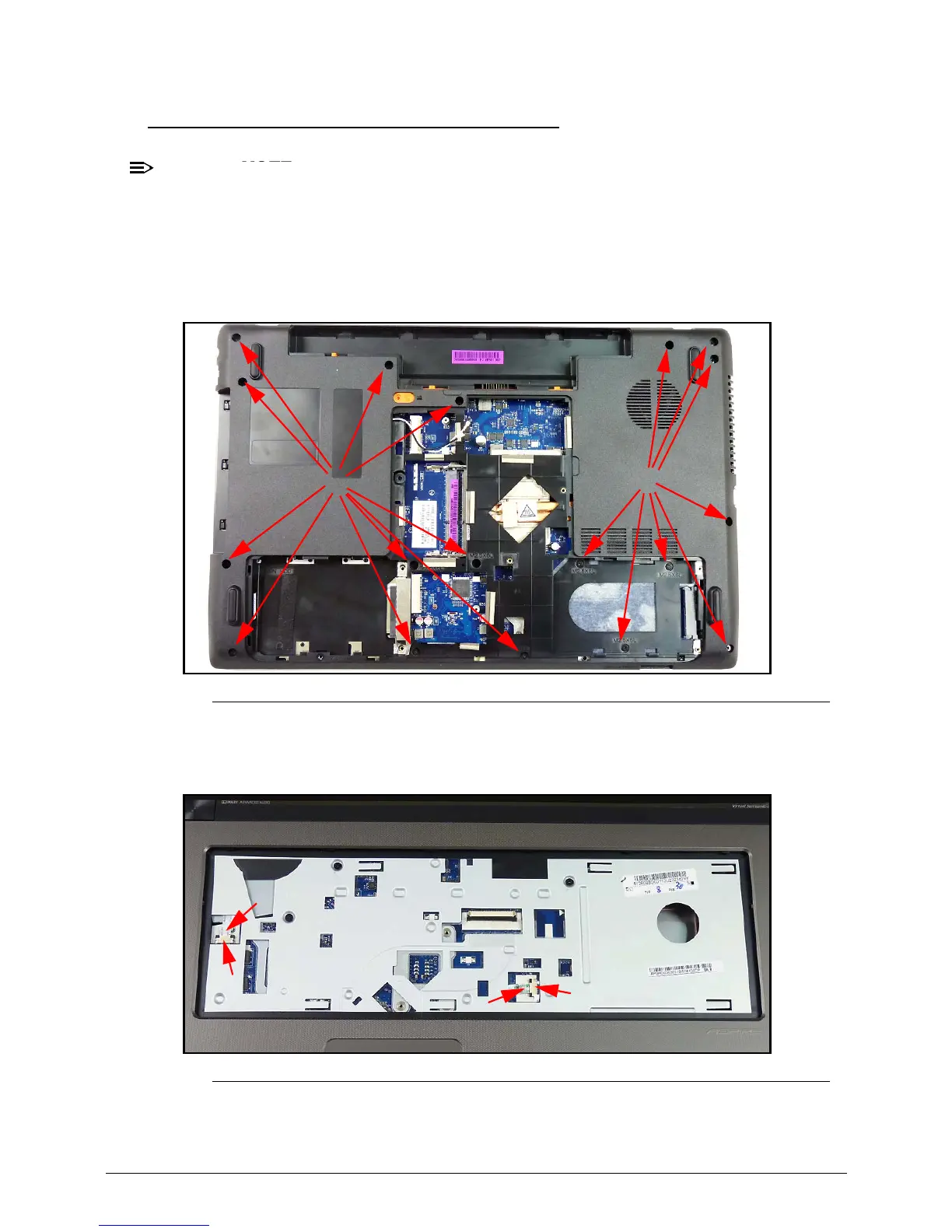

Figure 3-29. Lower Cover Screws
2. Show upper cover. (Figure 3-30)
Figure 3-30. Upper Cover FFC and Mainboard Connectors
3. Disconnect power board FFC (A) from mainboard connector (B).
A
A
A
B
C
D
