Machine Maintenance Procedures 3-35

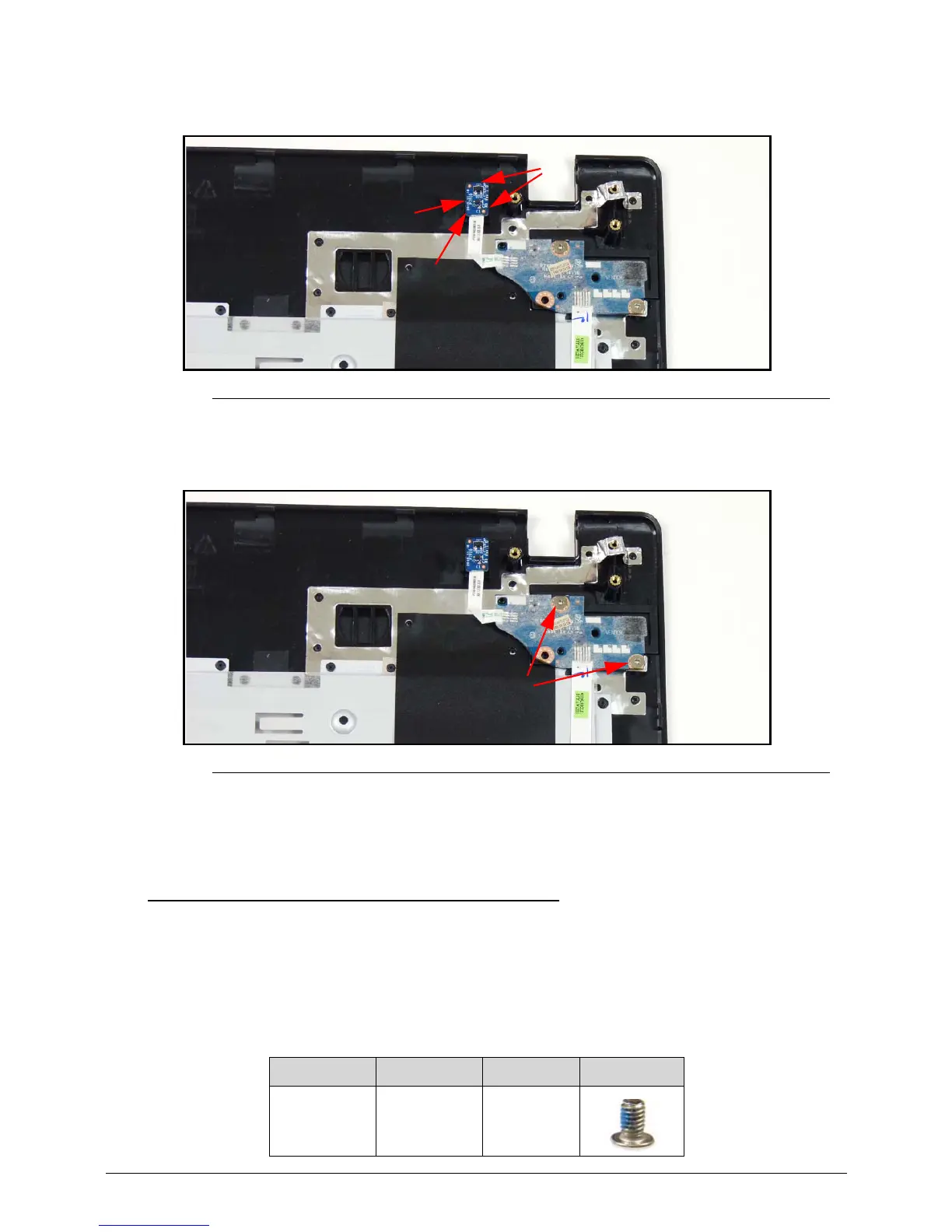

3. Remove sleep sensor board (C) from upper cover guides (D). (Figure 3-42)
Figure 3-42. Sleep Sensor Board
4. Remove screws (E) from power board. (Figure 3-43)
Figure 3-43. Power Board Screws
5. Remove power board and sleep sensor board from upper cover.
Power Board Installation 0
1. Install power board on upper cover. (Figure 3-43)
2. Install and secure screws (E) to power board.
3. Align and install sleep sensor board (C) in upper cover guides (D). (Figure 3-42)
4. Install tape (B) securing sleep sensor board to upper cover. (Figure 3-41)
ID Size Quantity Screw Type
E M2.5x3.0 Ni 2
