CSC400 Front Panel Buttons and LED Display
The CSC400 Controller provides a simple status and control interface to the user on the overlay mounted on the outside of the
CSC400's box. A 4-line, 20-character LED display provide temperature status, 4-20mA input levels, and shutdown status and
feedback while six membrane push buttons provide control for setting temperature setpoints, selecting menu options, and
configuring the CSC400.
After configuring options and setting the setpoints, pressing the Menu key will go back to the Main Screen of the display,
showing the actual thermocouple temperature readings. The measured temperatures and the setpoint displayed are
configurable in the menu settings but the default settings show a typical profile: TC1 and TC2 displayed with setpoints and
IGN1 enabled with IGN1's solenoid output status.
The display will show "Disab" when thermocouples are not enabled through the menu system.
The display will show "OPEN" if the thermocouples are not connected or if they have failed in an open condition.

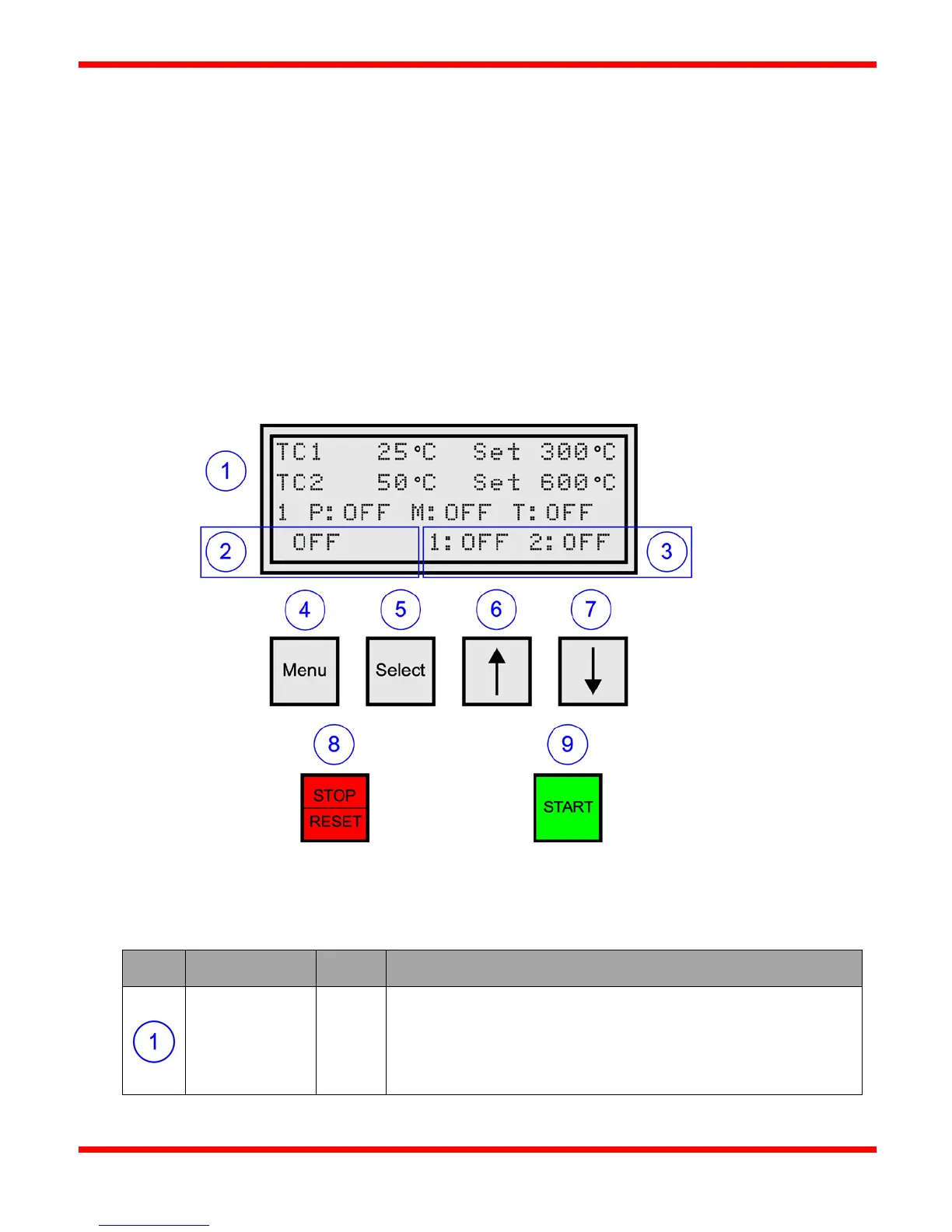

Figure 4 - CSC400 Controller Front Panel Overlay
Display
4-Lines, 20
characters per line
The LED display shows the temperature for thermocouples 1, 2, and 3,
any selected 4-20mA input levels, and provides a variety of shutdown
and solenoid status messages to the user.
The information displayed per line is user configurable. For example, any
of three thermocouples can be displayed, solenoid status of either Ignitor,
To Next Page
