Wiring Diagrams - FI (Flame Ionization)
The following diagram shows the wiring connections for the CSC400 Combustion Safety Controller.

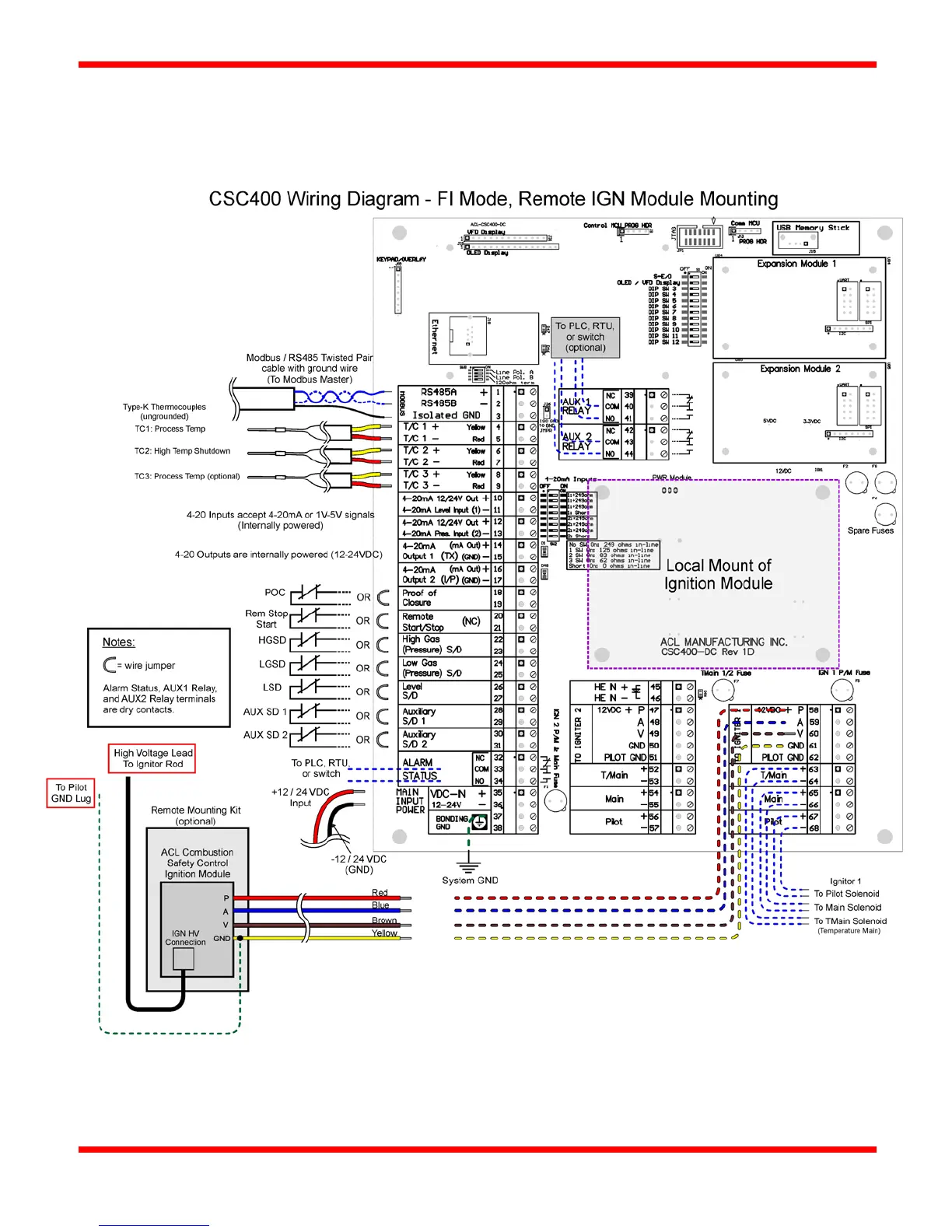

Figure 8 - CSC400 Wiring Diagram - FI (Flame Ionization), Remote IGN Module
