ACT ACTPRO 4000 - Page 44

Max cable length is 5m using standard alarm cable
or 30m using twin twisted-pair (use 0V in each pair)
DB25 Male
(Rear View)
7
2
3

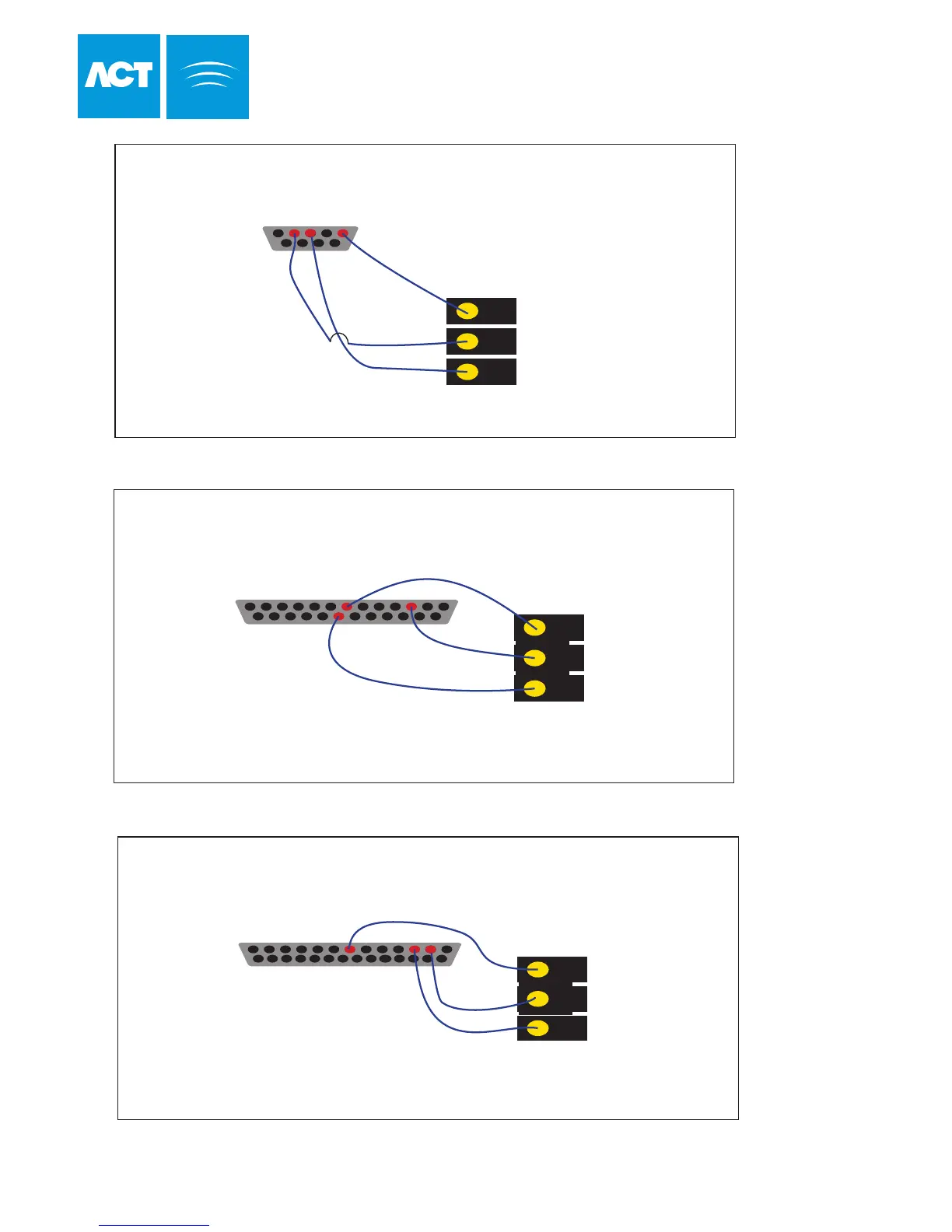

Serial Modem Cable (Modem to Controller)
ACT 4000
Serial/Printer
Max cable length is 5m using standard alarm cable
or 30m using twin twisted-pair (use 0V in each pair)
0V
TX
RX
0V
TX
RX
0V
TX
RX
DB9 Female
(Rear View)
12345
6789
Direct Connection Cable (PC COM Port to Controller)
Max cable length is 5m using standard alarm cable
or 30m using twin twisted-pair (use 0V in each pair)
DB25 Male
(Rear View)
7
20
3
Serial Printer Cable
ACTpro 4000
Serial/Printer
40
ACTpro 4000 Cable Connections
