200S 37
I - 4 Turning Specific Operations
Press the ENTER key.
Select the axis (X) key.
Enter the position of the tool tip, for example, X= Ø .100”.
Remember to ensure the 200S is in diameter display mode (Ø) if the
input is a diameter value.

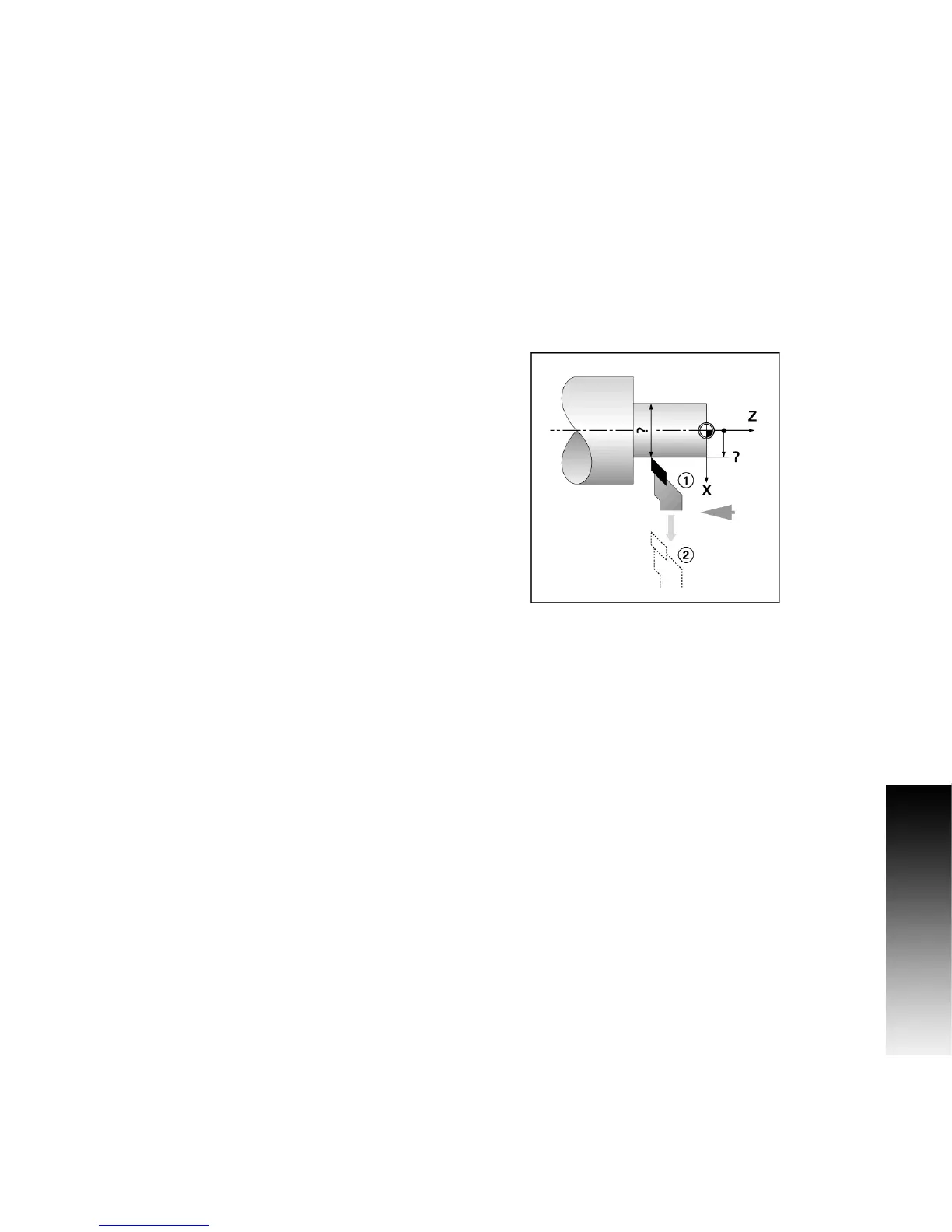

Touch the workpiece face with the tool (1).
Cursor to the Z axis (2), then set the position display for the tool tip
to zero, Z=0.
Press ENTER.
Setting Tool Offsets using the LOCK AXIS Function
The LOCK AXIS function can be used to set a tool’s offset when a tool
is under load and the diameter of the workpiece is not known.
The LOCK AXIS function is useful when determining tool data by
touching the workpiece. To avoid losing the position value when the
tool is retracted to measure the workpiece, this value can be stored by
pressing LOCK AXIS.
To use the LOCK AXIS function:
Press the TOOL soft key.
Select tool and press ENTER.
Press the X axis key.
Turn a diameter in the X axis.
