ACU-RITE 200S READOUTS - I;O Connections; Pin layout for Electronic Edge Finder

56 I
II - 4 I/O Connections
II - 4 I/O Connections
Encoders are plugged into connectors marked Inputs 1, 2, & 3.

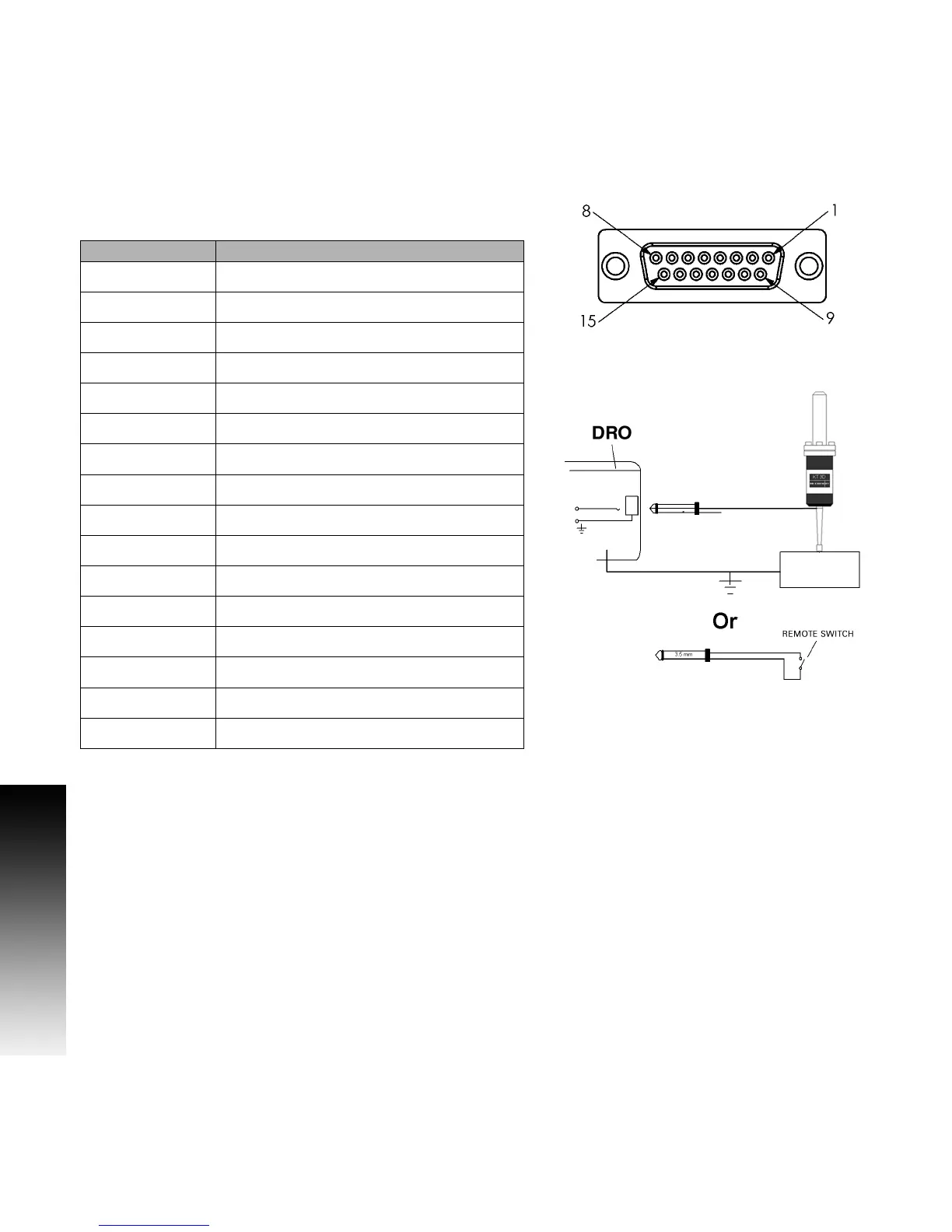

Pin layout for Electronic Edge Finder
15 Pin receptacle connector for Edge Finder.
Grounding Edge Finder / Remote Switch
Pin Assignment
1 0V (Inner shield)
2 Stand By
3
4
5
6+5V
7
80V
9
10
11
12
13 Switch Signal
14
15
Housing External Shield
