This section discusses operations, and soft key functions specific to
milling applications only.
Soft Key Functions
Tool Soft Key
The TOOL soft key opens the tool table, and provides access to the
Tool form for entering a tool’s parameters. The 200S can store up to
16 tools within the tool table.

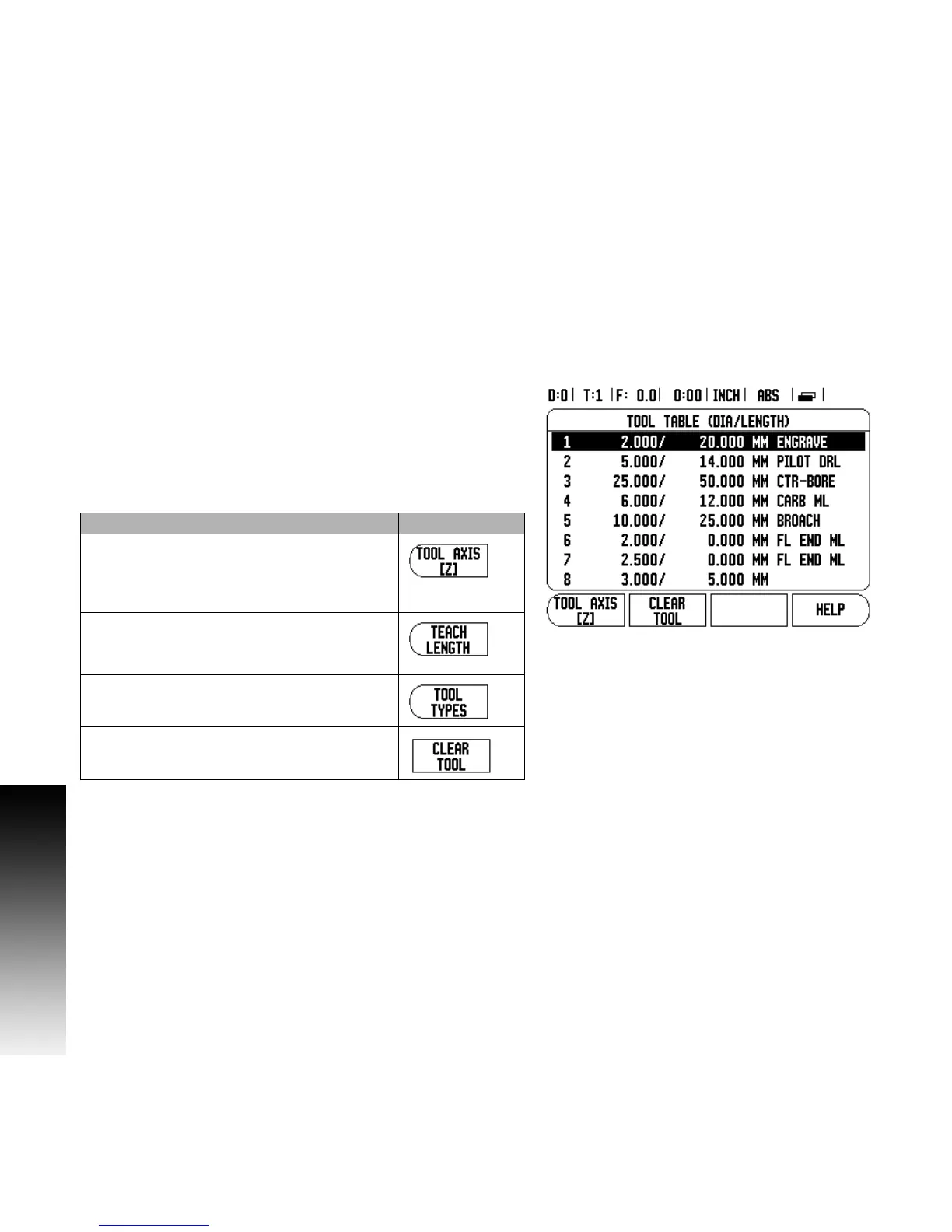

Tool Table
The 200S tool table provides a convenient way to store diameter and
length offset information for each of the tools that may be commonly
used (up to 16 tools).
The following soft keys are available while in the Tool Table form, or in
the individual tool data form:
Function Soft key
Use this key to select which axis all the tool
length offsets will affect. The tool’s diameter
values will subsequently be used to offset the
remaining two axes.
Press to automatically enter the tool offset
length. This key is only available in the TOOL
LENGTH field.
The Tool Types form is opened using this key,
and is only available in the Type field.
To remove a tool from the table, use the
CLEAR TOOL key.
To Next Page
