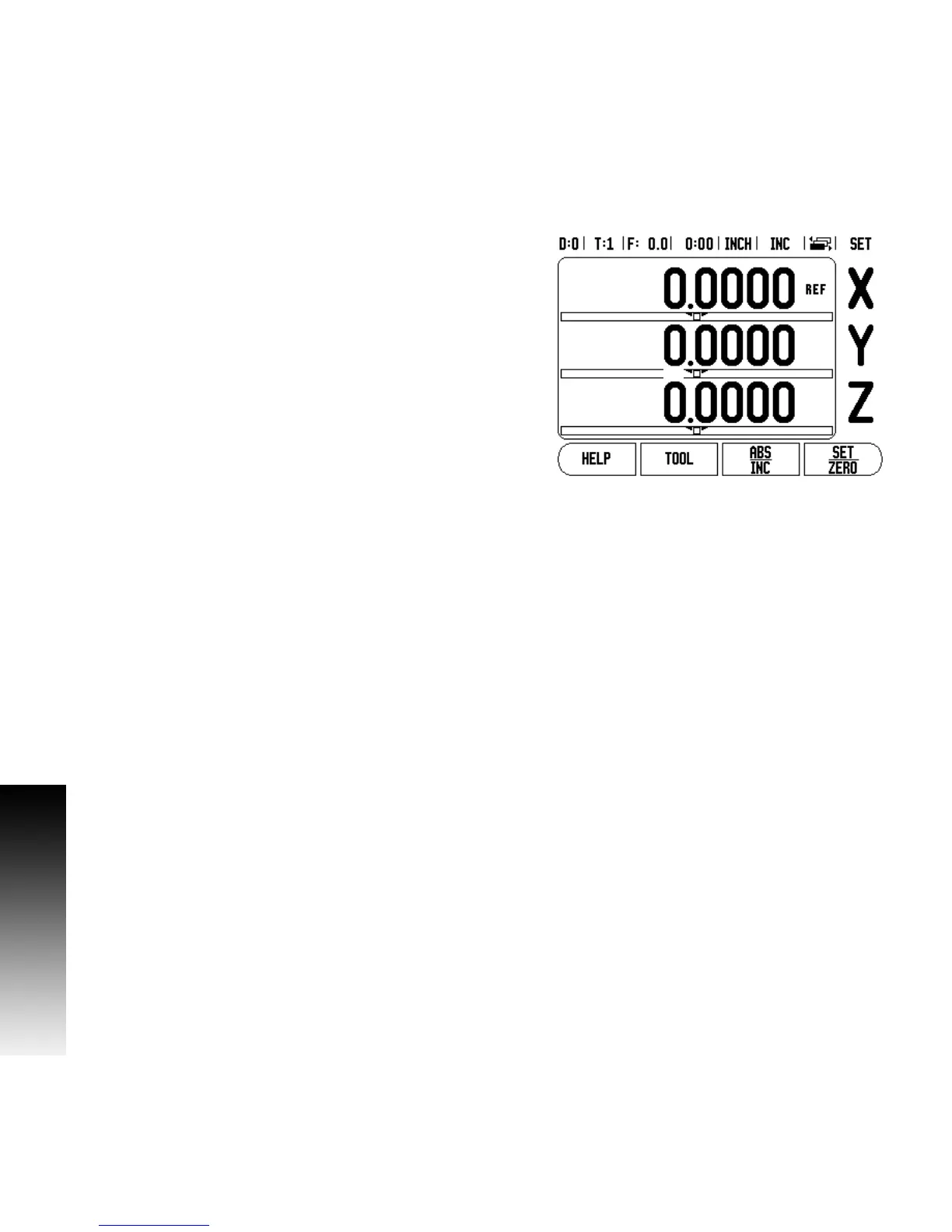

Screen Layout
ACU-RITE’s 200S readout provides application-specific features that
allows you to obtain the most productivity from your manual
machine tools.
Status Bar - This displays the current datum, tool, feed rate, job
clock time, unit of measure, operating mode status, page indicator,
and set/zero. See Job Setup for details on setting up the Status
Bar parameters.
Display Area - Indicates the current position of each axis. Also
shows forms, fields, instruction boxes, error messages and
help topics.
Axis Labels - Indicates axis for corresponding axis key.
Ref Symbols - Indicates current reference mark status.
Soft key Labels - Indicates the various milling or turning functions.
1 Datum
2 Tool
3 Feed Rate
4 Job Clock
5 Unit of Measure
6 Operating Modes
7 Page Indicator
8 Set/Zero
9 Axis Labels
10 Ref Symbol
11 Soft key Labels
12 Display Area
13 Near Zero Warning (In Distance-To-Go mode only)
