200S i

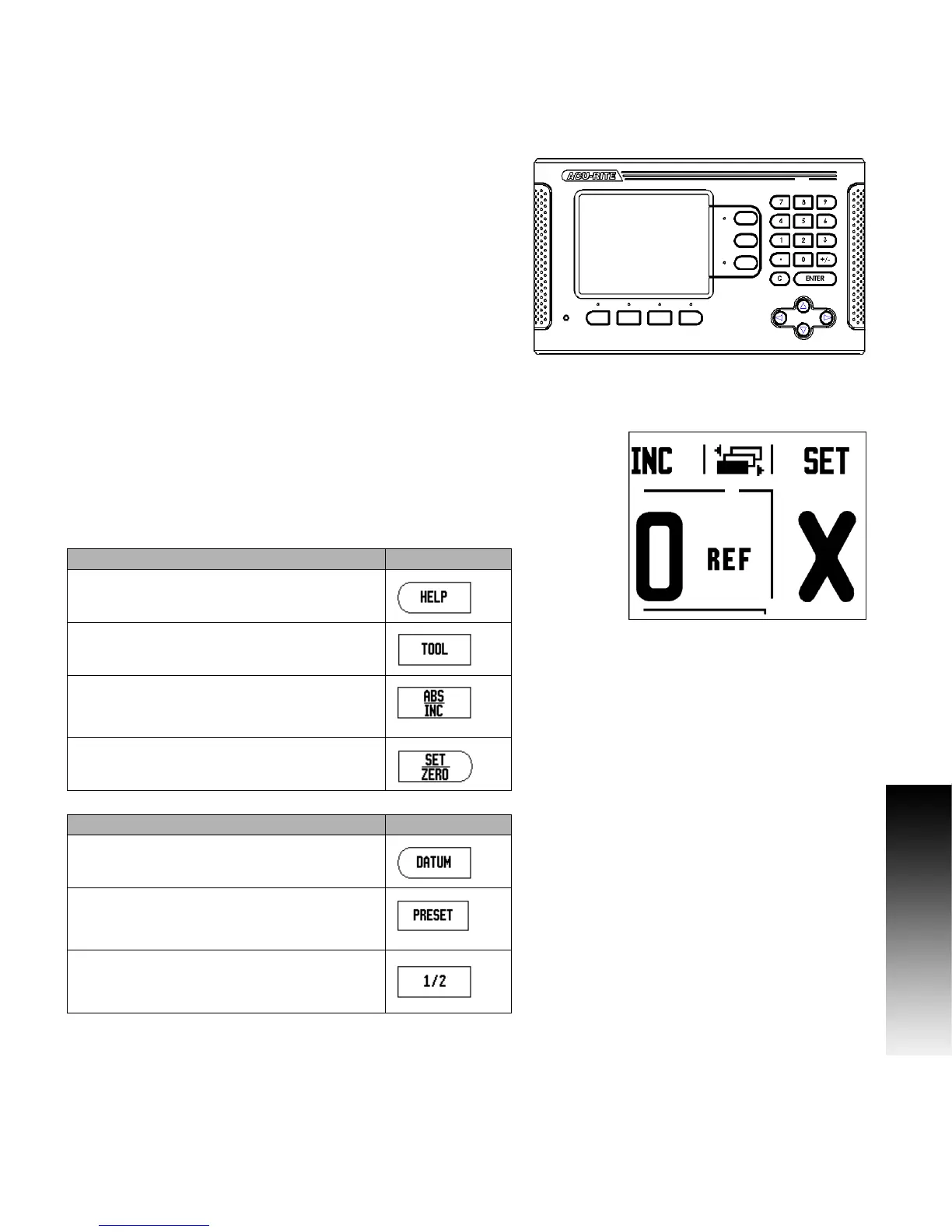

200S Key Layout
200S Soft keys
There are multiple pages of soft key functions to select from the
operating modes. Use the LEFT/RIGHT arrow keys -4- to cursor
through each page. The page indicator in the Status Bar will show the
page orientation. The darkened page indicates the page you are
currently on.
1 Display Area
2 Soft keys
3 Power Indicator light
4 Arrow Keys: Use the UP/DOWN keys to adjust the
screen contrast.
5 Axis Keys
6 Numeric Keypad
7 ENTER key
8 CLEAR key
1 Page Indicator
2 Set Zero Indicator
Soft Key function (Page 1) Soft key
Opens on-screen help instructions.
Opens the Tool Table. Page 18 for Milling, and
page 36 for Turning.
Switches display between operating modes
Actual Value (Absolute) / Distance-to-Go
(incremental). See page 10.
Toggles between Set / Zero functions. Used
with individual axis keys (page 16).
Soft Key function (Page 2) Soft key
Opens the Datum form to set the datum for
each axis (page 20).
Opens the Preset form. This form is used to set
a nominal position. This is a Distance-To-Go
(Incremental) function (page 23).
Used to divide the current position by two. This
function is for Milling applications only
(page 26).
To Next Page
