I - 2 General Operations for 200S
Diameter Axes

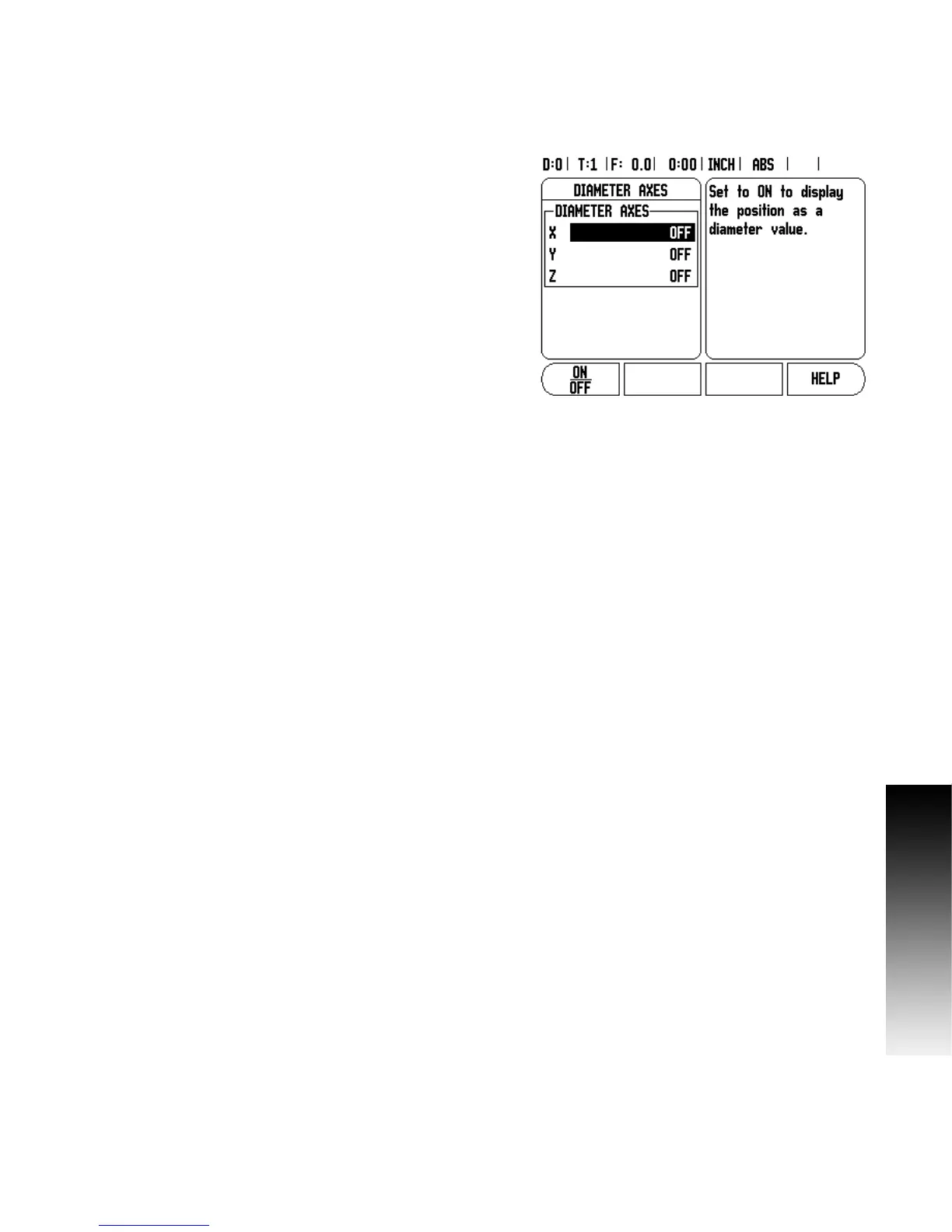

Select Diameter Axes to bring up the diameter screen shown here to
set which axes can be displayed in either radius or diameter values.
ON indicates that the axis position will be displayed as a diameter
value. When OFF, the Radius/Diameter feature does not apply. For
turning applications see "Radius/Diameter Soft Key" on page 41 for the
Radius/Diameter feature.
Cursor to Diameter Axes, and press ENTER.
The cursor will be in the X axis field. Depending on the parameter
needed for that axis, press ON/OFF soft key to turn feature on,
or off.
Press ENTER.
Measured Value Output
With the measured value output feature, probe measurement values
can be sent over the serial port. Also output of the current display
positions is activated via a command (Ctrl B), sent to the 200S over the
serial port.
The Measured Value Output form is used to set data output during
probing operations.
Data Output Probing (Milling Only), may be set to either On, or Off.
When On, the measurement data is output when the probe
operation is completed.
Refer to chapter II "II - 5 Remote Switch Data Output on page 58” for
information on the format of the output data.
Near Zero Warning
The Near Zero Warning form, is used to configure the bar graph. This
is shown below the axes’ display in Distance-To-Go mode. Each axis
has its own range.
Press the ON/OFF soft key to enable, or begin entering values using
the numeric keys. The current position box will begin moving when
the position is within range.
