I - 2 General Operations for 200S
Reference Mark
The 200S reference mark feature automatically re-establishes the
relationship between axis slide positions, and display values last
defined by the datum setting following a power cycle.

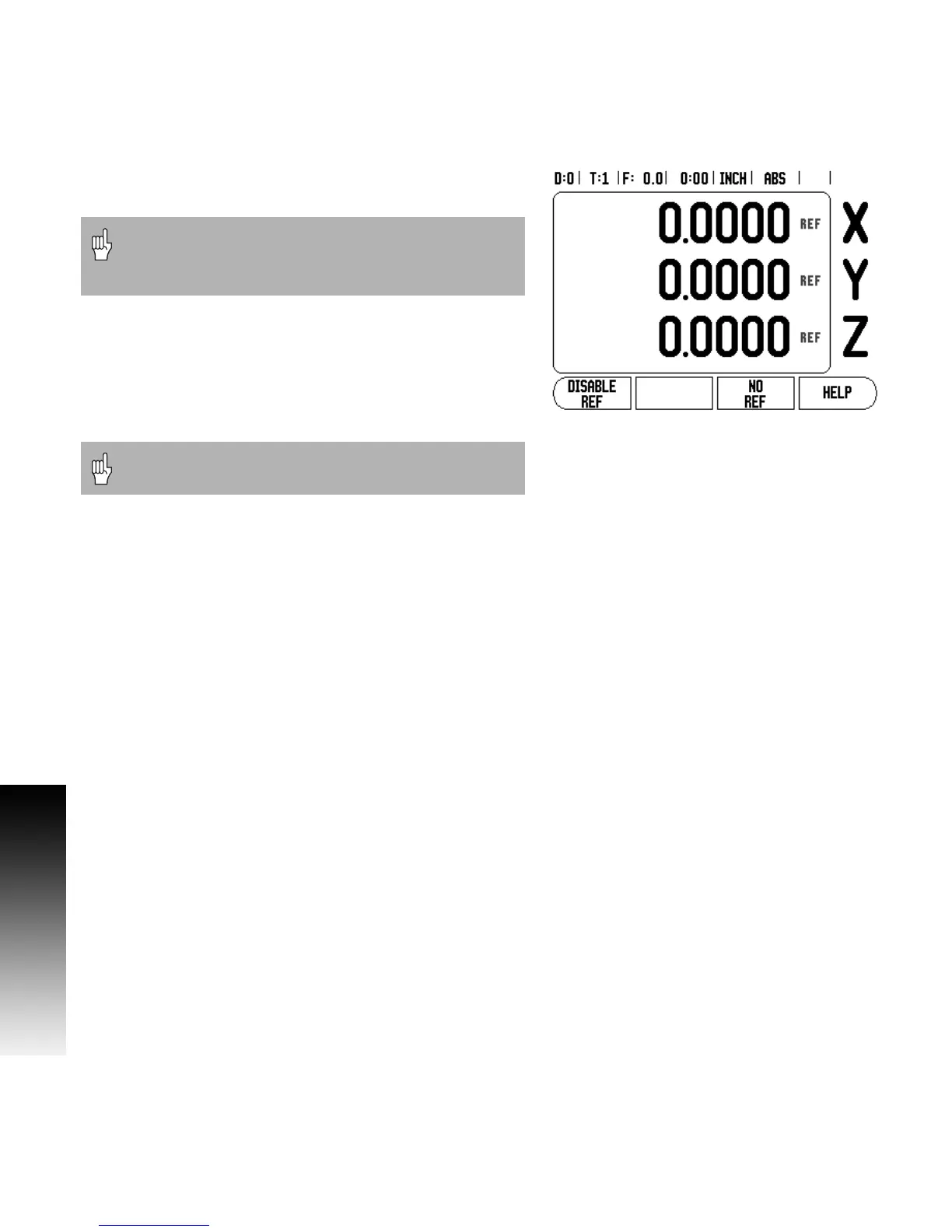

For each axis with an encoder that has reference marks, a grayed out
REF indicator (1), will flash for that axis. The DRO default setting
following a power cycle is “ENABLE REF”. Moving that axis no more
than two inches will re-establish it’s location based on prior datum
settings. The “REF” indicator (1) will stop flashing, and change to
black. This action allows the encoder to cross over it’s reference
marks, and re-establish it’s location.
Press the NO REF soft key to exit the reference mark routine,
and continue.
The DISABLE REF softkey is used for other specific applications
using this screen described later in this manual. This key is not
applicable for this setup.
First time power up require these values to be defined
along with all initial DRO setting. Press the NO REF
softkey, and use the RIGHT, or LEFT arrow keys to
enter SETUP.
It is recommended that the reference marks always be
re-establish following a power cycle before continuing.
