Example A/V Input Linking • Five Source Installation w/DTS

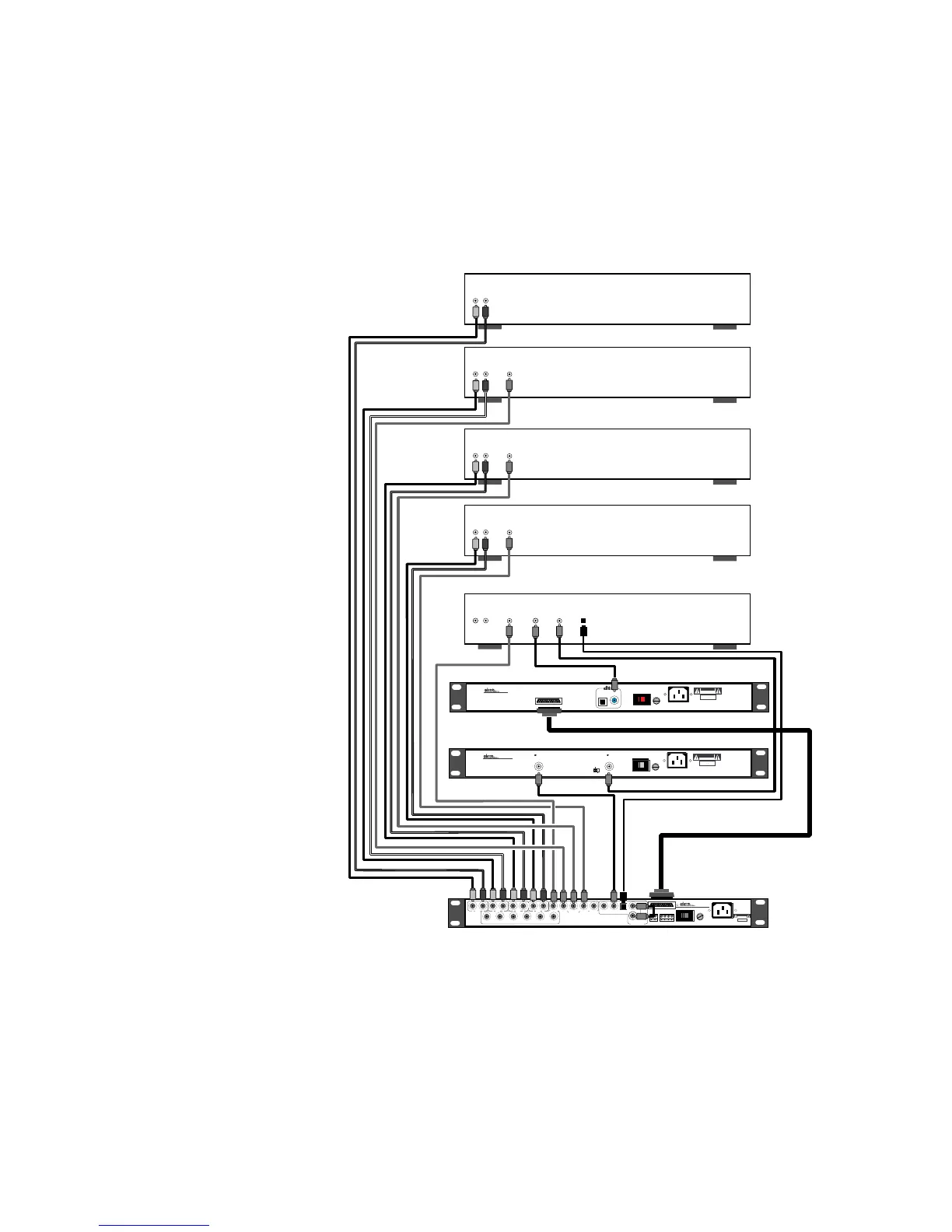

Using the example source configuration as discussed in previous pages, we will program the
audio and video links for the system as layed out in the diagram were five sources are con-
nected with DTS. In this example, two Input Labels will be set to the DTS-1, one for music
and one for video playback. Both Input Labels will share the same A/V Link.
Step 1 Repeatedly press the INPUT SELECT button until the display reads "LASER AC3 1".
Step 2 Repeatedly press the
SETUP MODE button until
the display reads either "OP-
TICAL/V#", "DIGITAL#/V#",
or "ANALOG#/V#". The "#"
refers to either Digital Audio
Input number, Analog Audio
Input number, and the Com-
posite Video Input number.
It should already read "DIGI-
TAL 1/V1".
Step 3 Press the VOL UP or VOL
DN buttons to advance
through the SSD-66 (5.1)'s
available audio and video
links until the display reads
"DIGITAL1/V1".
Step 4 Press the INPUT SELECT
button to lock in this A/V Link
and exit the Setup Mode.
Step 5 Press the INPUT SELECT
button again to advance to
the SSD-66 (5.1) to the next
Input Label, "LASER PCM
2".
Step 6 Press the SETUP MODE
button and the SSD-66 (5.1)
should automatically come
back up with an AV Link. If
the display does not read as
described in Step 2, repeat-
edly press the SETUP
MODE button until an AV
Link does appear.
Step 7 Press the VOL UP or VOL DN buttons to advance through the SSD-66 (5.1)'s available audio and
video links until the display reads "OPTICAL/V1".
Step 8 Press the INPUT SELECT button twice, once to exit the Setup Mode and once to advance the
display to read "TV/CABLE 3". This Input Label will be used for the DTS Decoder and will need to
be reset for both an A/V Link and its label.
Step 9 Again, press the SETUP MODE buton and the display sould read an A/V Link.
Step 10 Use the VOL UP or VOL DN buttons until the display reads "MUTI PIN/V1"
