Example:

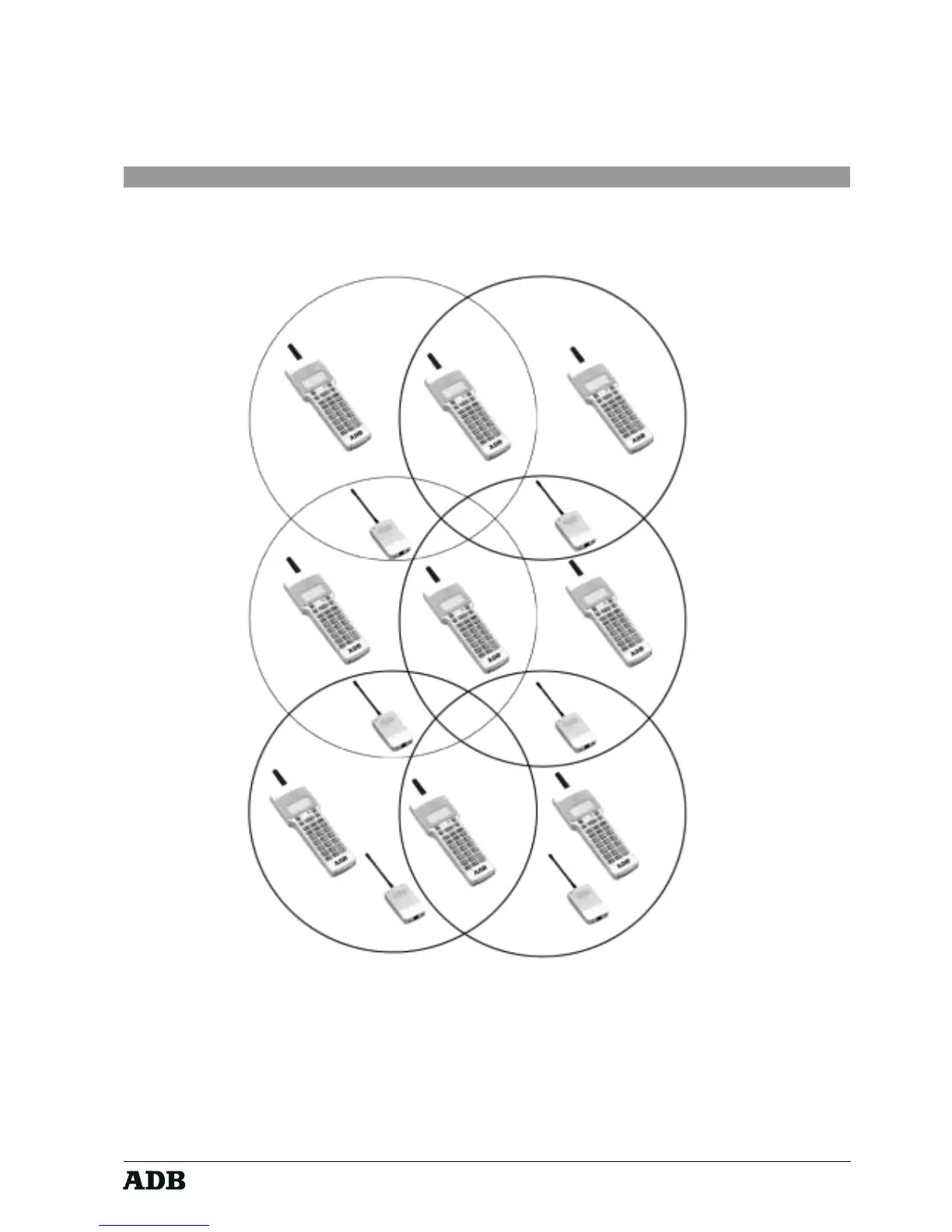

In the above example, the coverage range of each receiver intersects that of the
other two. To create transmission problems, different group numbers are given to
adjacent receivers. As a result, when data transmission takes place between
receivers A and E (wich are not adjacent) and the respective senders, transmission
between receivers B, C, D and F is disabled; it then enables transmission from B and
F and disables transmission from the other receivers and so on.
GROUP 1
GROUP 3
GROUP 1
GROUP 2
GROUP 4
GROUP 2
A
C
E
B
D
F
