1. Connection

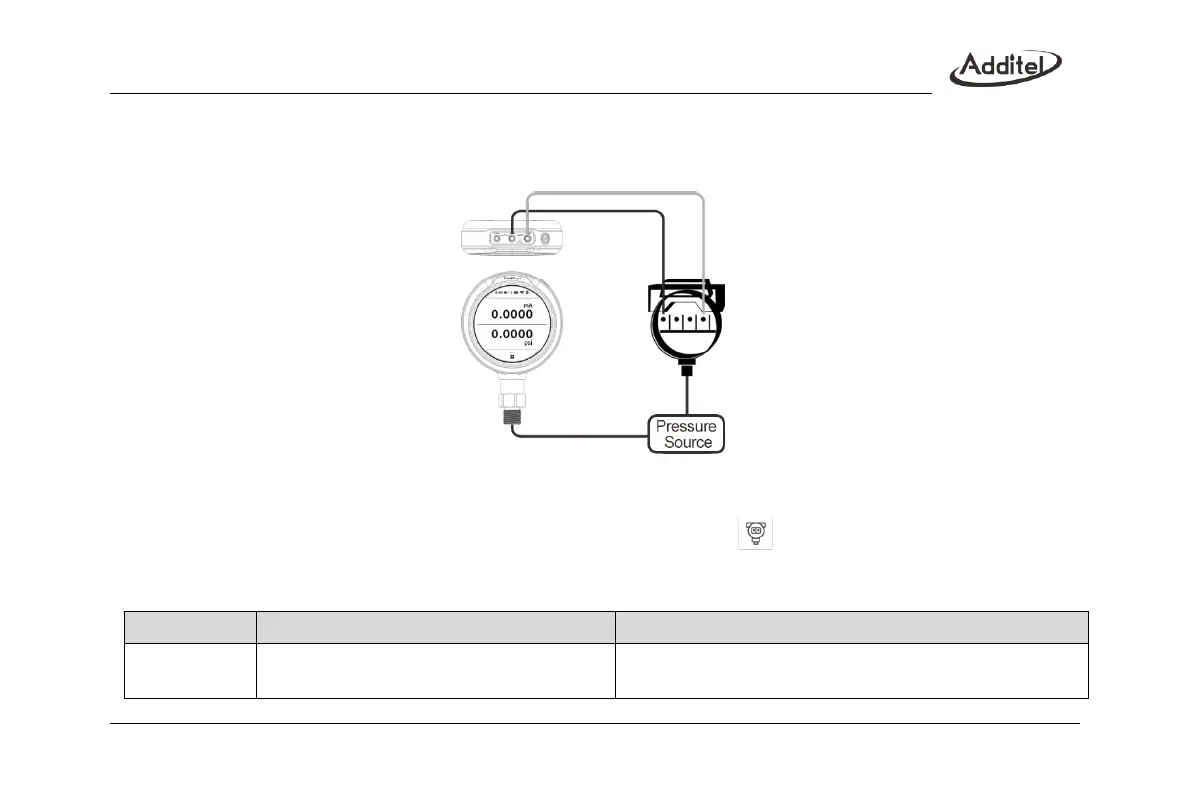

Refer to Figure 13.
Figure 13 Calibrate pressure transmitter
2. New task
According to transmitter select (mA, V, HART), select “transmitter” icon in the calibration list, input transmitter
information:
Table 22 Information for pressure transmitter in task mode
Subject
Valid value
Comment
Pressure type
Gauge pressure, absolute pressure
The type of calibrated transmitter, view support information
according to calibrator’s model
