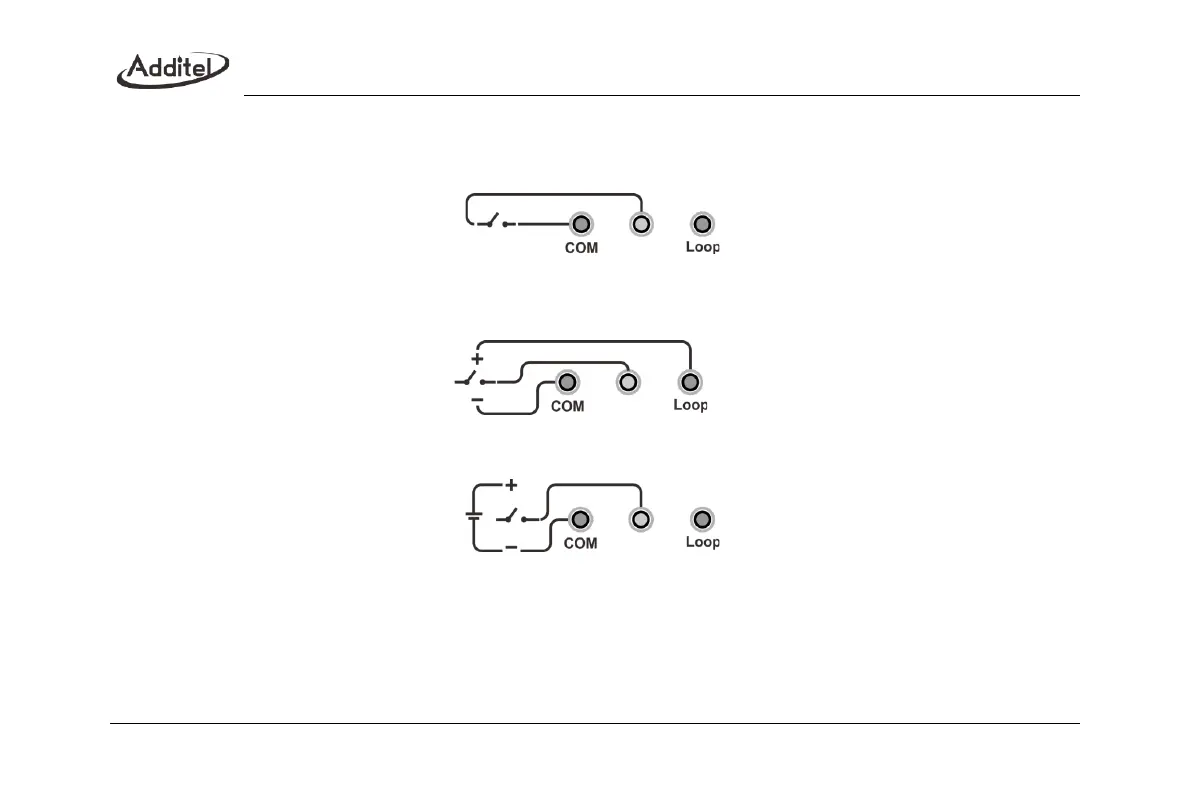

(2) The calibrator supports mechanical switch, NPN and PNP electronic switches. The circuit connection of
mechanical switch is shown in Figure 15. The electronic switches can be connected through internal power
and external power connections. Refer to Figure 16 and Figure 17.
Figure 15 Mechanical switch
Figure 16 Electrical Switch through internal power
Figure 17 Electrical Switch through external power
