ADEEPT PiCar-B - Page 19

www.adeept.com
15

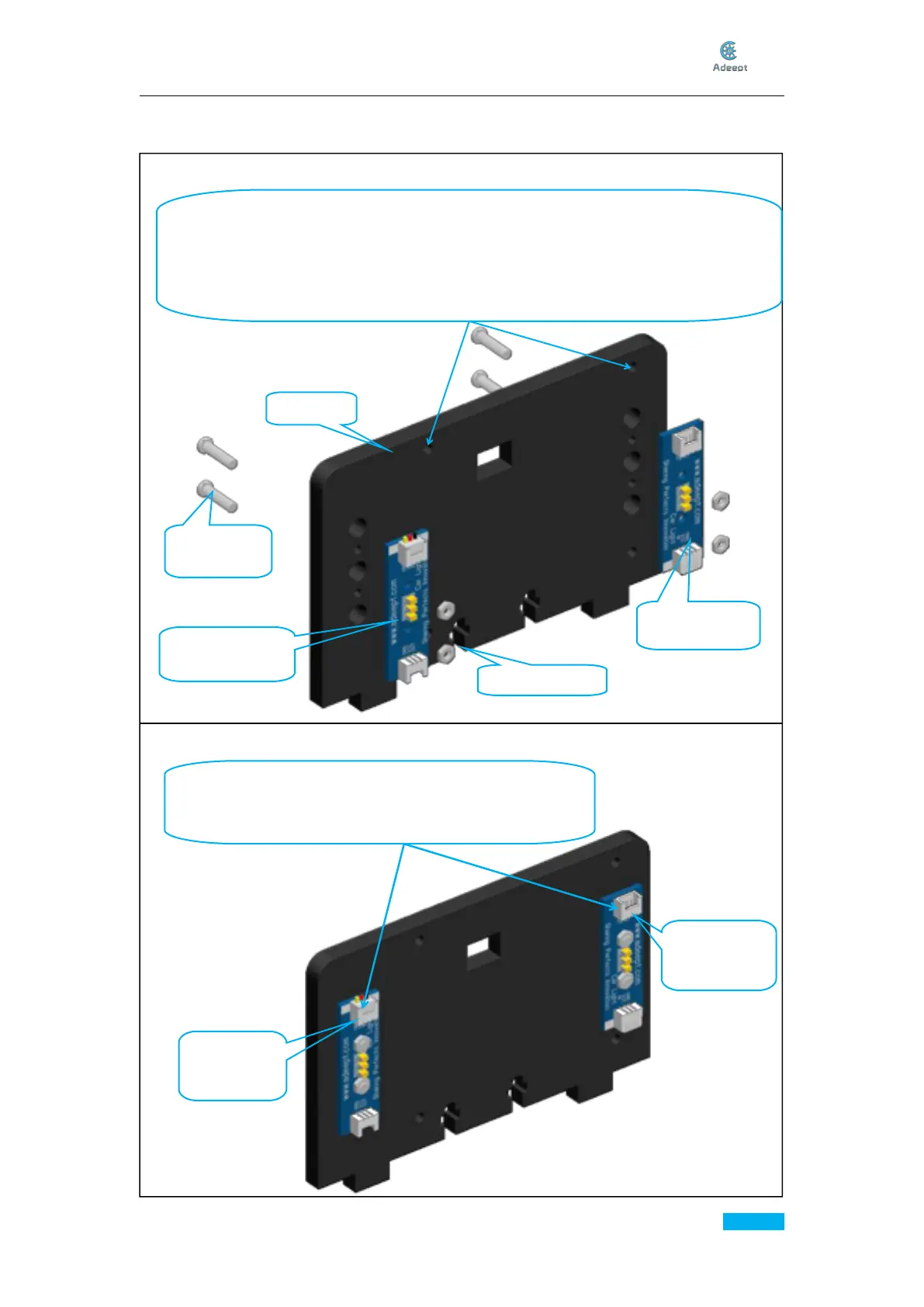

7. Fix one 3-CH WS2812 RGB LED-A and 3-CH WS2812 RGB LED-B respectively on both sides of
the A02 .
Assemble the following components
With reference to the position of the two holes here (to the right), 3-CH WS2812
RGB LED-A and 3-CH WS2812 RGB LED-B cannot be fixed to the othersideofA02.
And 3-CH WS2812 RGB LED-A is on the left side, the input end (theendmarkedwith
awhitestrippattern)facesup,3-CHWS2812RGBLED-Bisontherightside,andthe
input end (the end marked with a white strip pattern) faces down.
A02 x1
M2*10 Screw
x4
3-CH WS2812
RGB LED-B x1
3-CH WS2812
RGB LED-A x1
M2 Nut x4
Effect diagram after assembling
After assembly, connect the wires on the input end of
3-CH WS2812 RGB LED-A to the output end of 3-CH
WS2812 RGB LED-B
Output end of
3-CH WS2812
RGB LED-B
Input end of
3-CH WS2812
RGB LED-A
