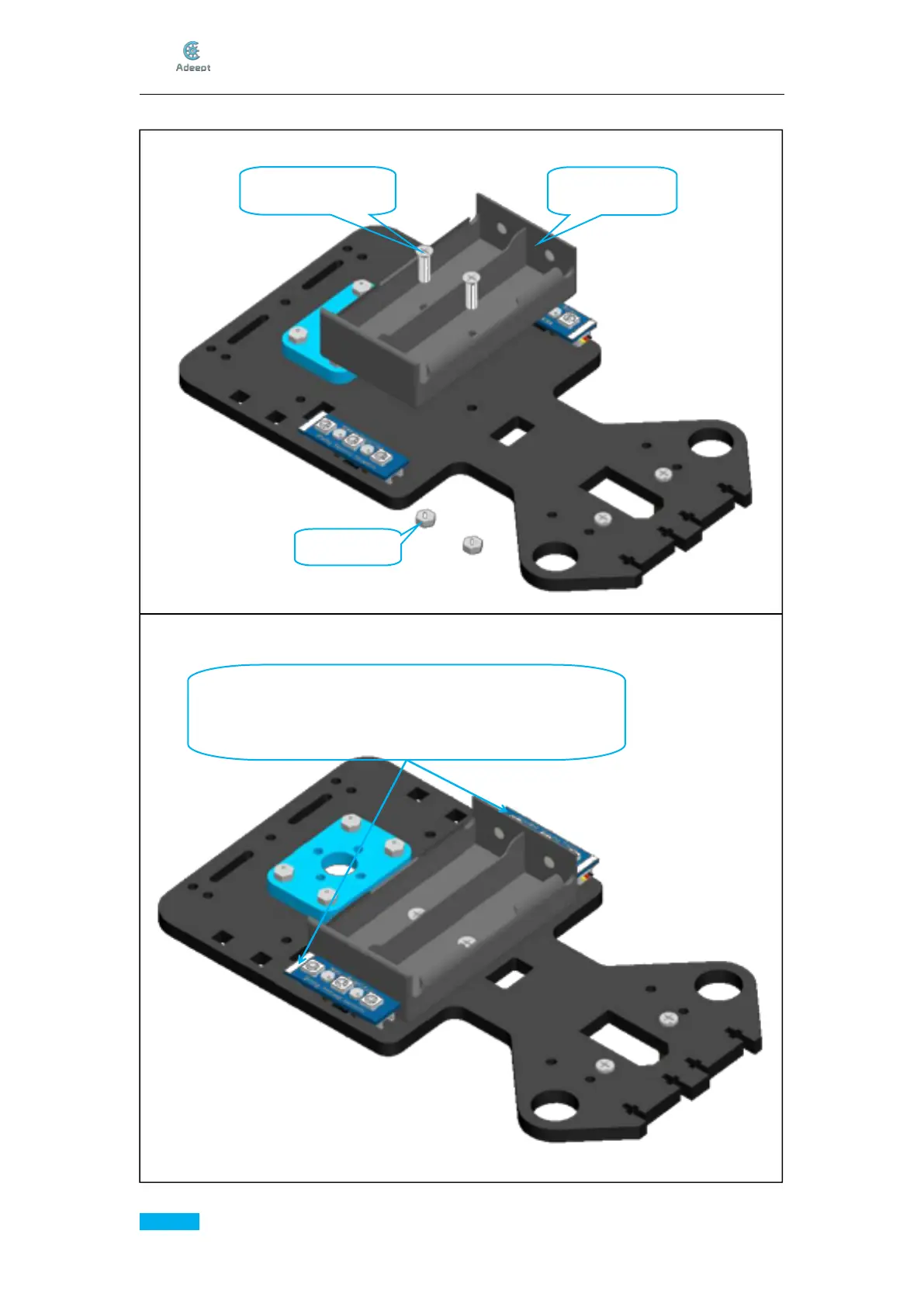

6. Fix 18650x2 Battery Holder on A01.
Assemble the following components
18650x2 Battery
Holder x1
M3*10 Countersunk
Head Screw x2
M3 Nut x2
Effect diagram after assembling
After the 18650x2 Battery Holder is fixed, connect the 3-Pin
Wires -A of 3-CH WS2812 RGB LED-A on the left to the 3-CH
WS2812 RGB LED-A on the right.
