7. Connect the rocker arm of a servo with A07.
8. Two front wheels assembly.

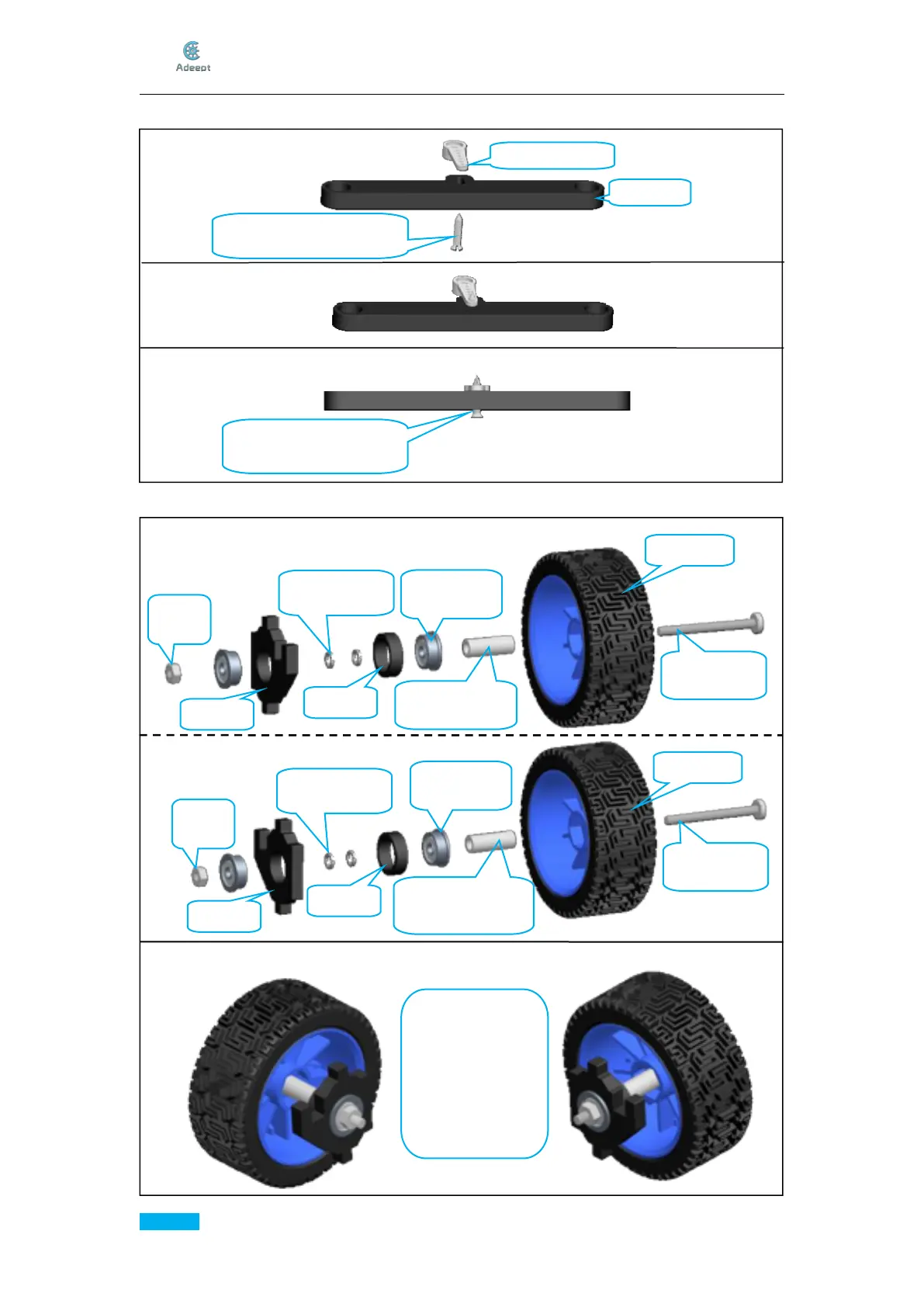

Assemble the following components
Rocker arm x1
A07 x1
Self-tapping screw
packaged with servo x1
Effect diagram after assembling
Pay attention not to tighten the screw, otherwise the A07 can't move freely.
Keep a gap between
the Screw and A07
Wheel x1
Assemble the following components
F624ZZ
Bearing x2
M4 Spring
Washer x2
M4 Nut
x1
M4*40 Screw
x1
Nylon isolation
column x1
A11 x1
A08 x1
Wheel x1
M4 Spring
Washer x2
F624ZZ
Bearing x2
M4 Nut
x1
M4*40 Screw
x1
Nylon isolation
column x1
A08 x1
A11 x1
Effect diagram after assembling
In the two front
wheels, the A08 is
assembled in the
opposite direction.
