9. Fix the rocker arm on the A07 to the servo on the A03.
Insert the rocker arm into the servo in the direction as the following picture and then fix it.
。

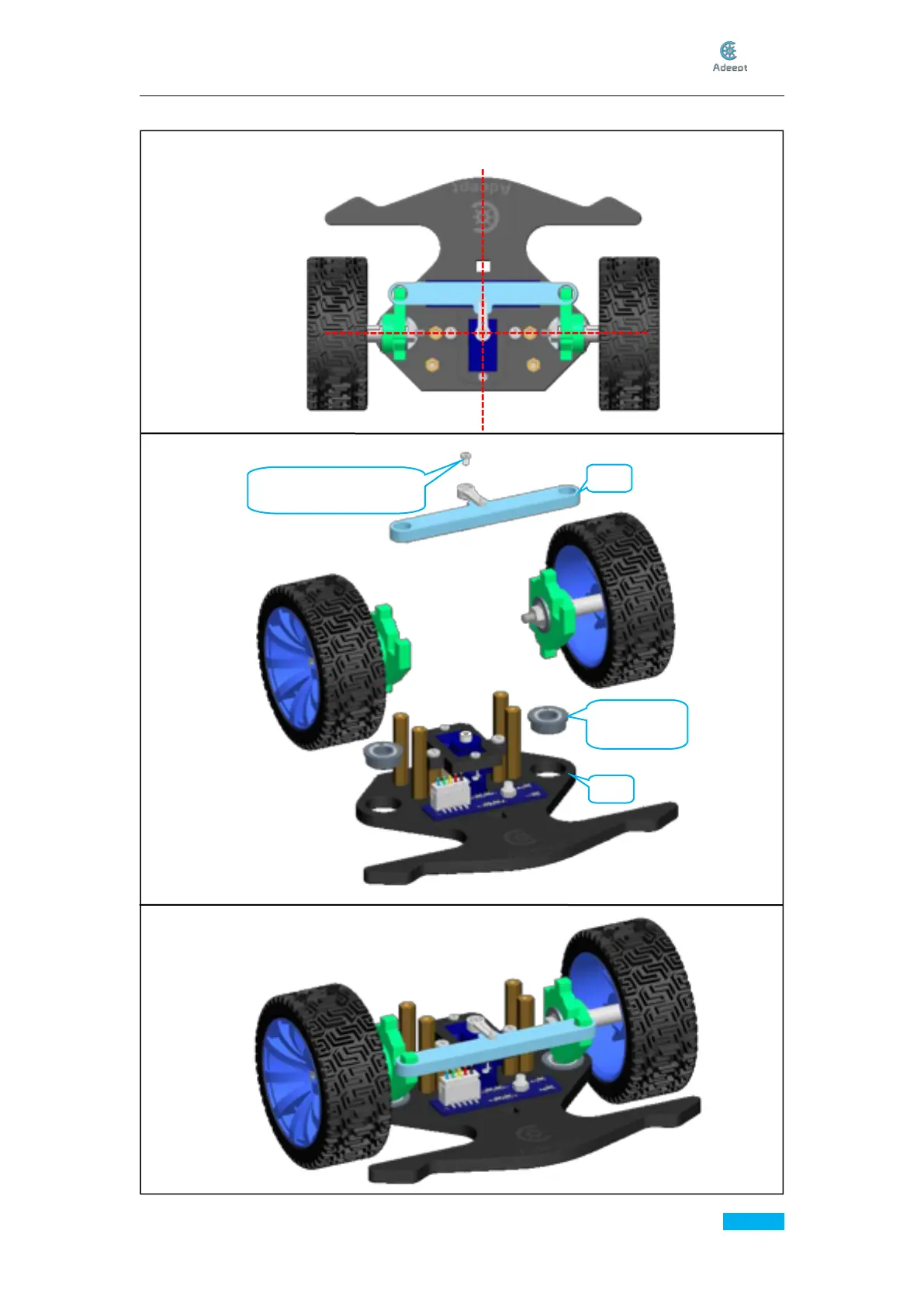

Assemble the following components
A07
Fixing screw packaged
with servo x1
F687ZZ
Bearing x2
A03
Effect diagram after assembling
