10. Fix the M3*30 Copper Standoff on A01 and A03.
Assemble the following components
M3*8 Screw x4
A01
F687ZZ Bearing x2
M3*30 Copper Standoff
A03

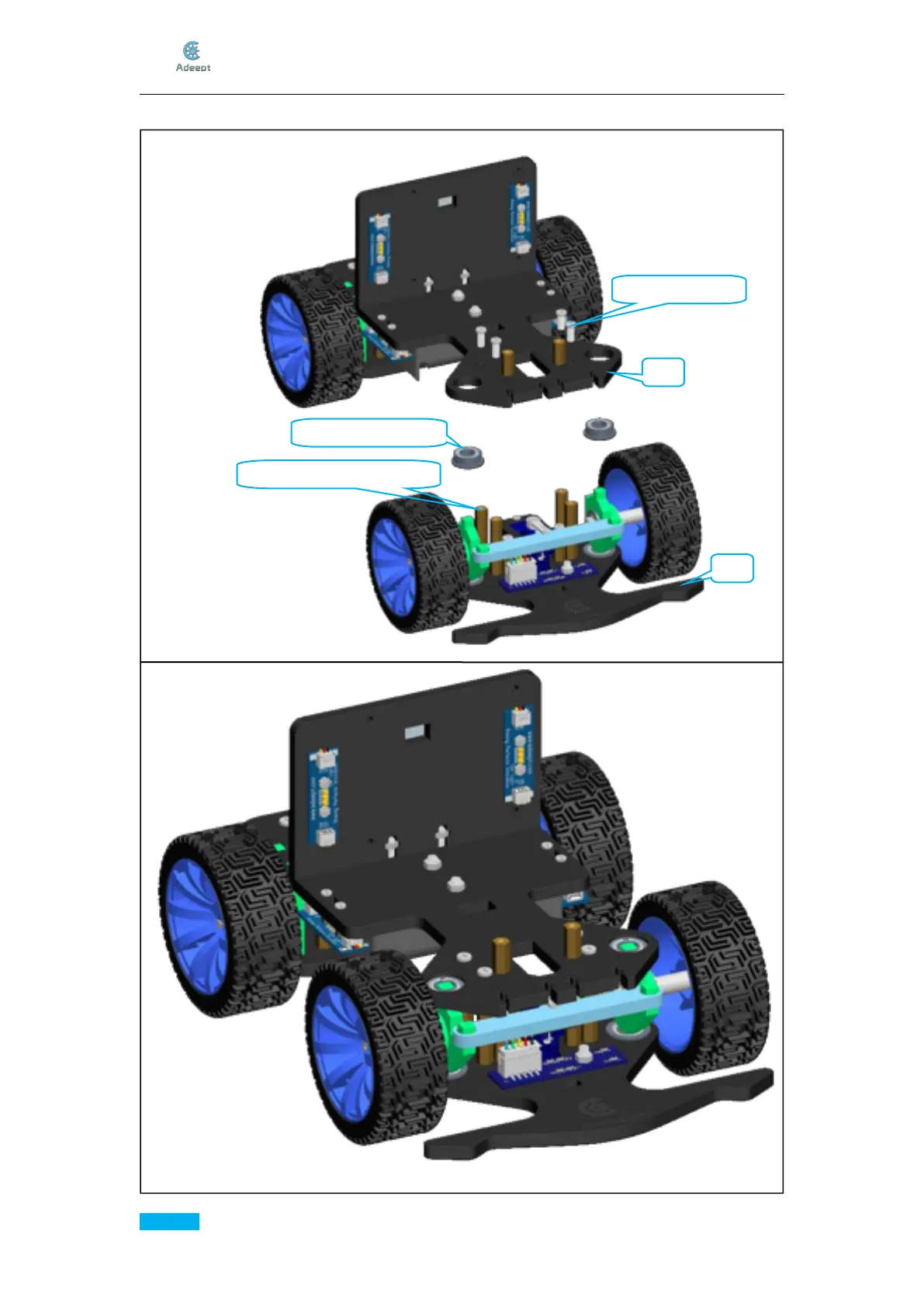

Effect diagram after assembling
