35

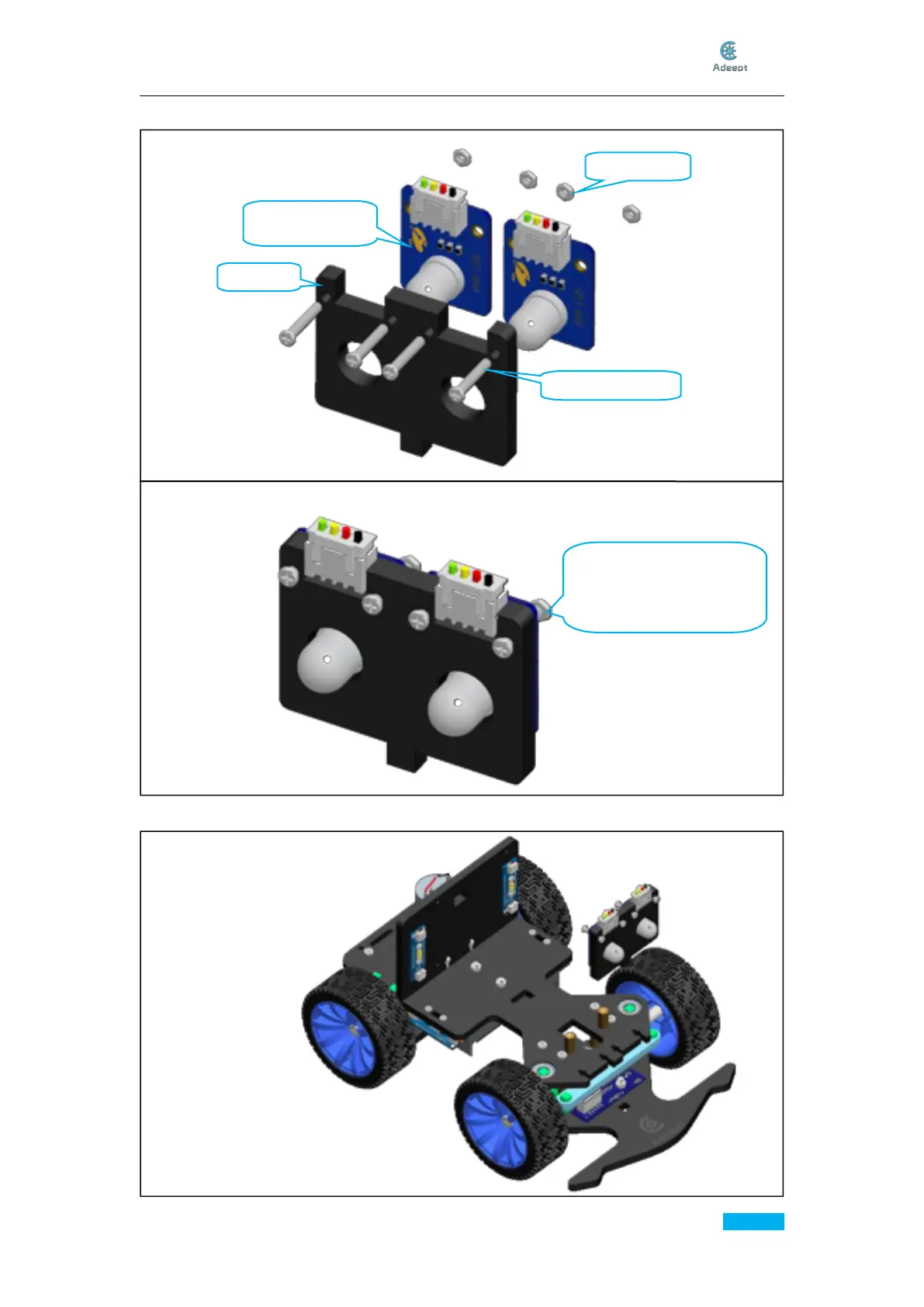

11. Fix Adeept RGB LED Module on A05.
12. Fix Adeept RGB LED Module and A05 on A01.
Assemble the following components
M2 Nut x4
Adeept RGB LED
Module x2
A05 x1
M2*14 Screw x4
Effect diagram after assembling
M2 Nut only needs to be
screwed into the M2*14
Screw, do not tighten.
Assemble the following components
