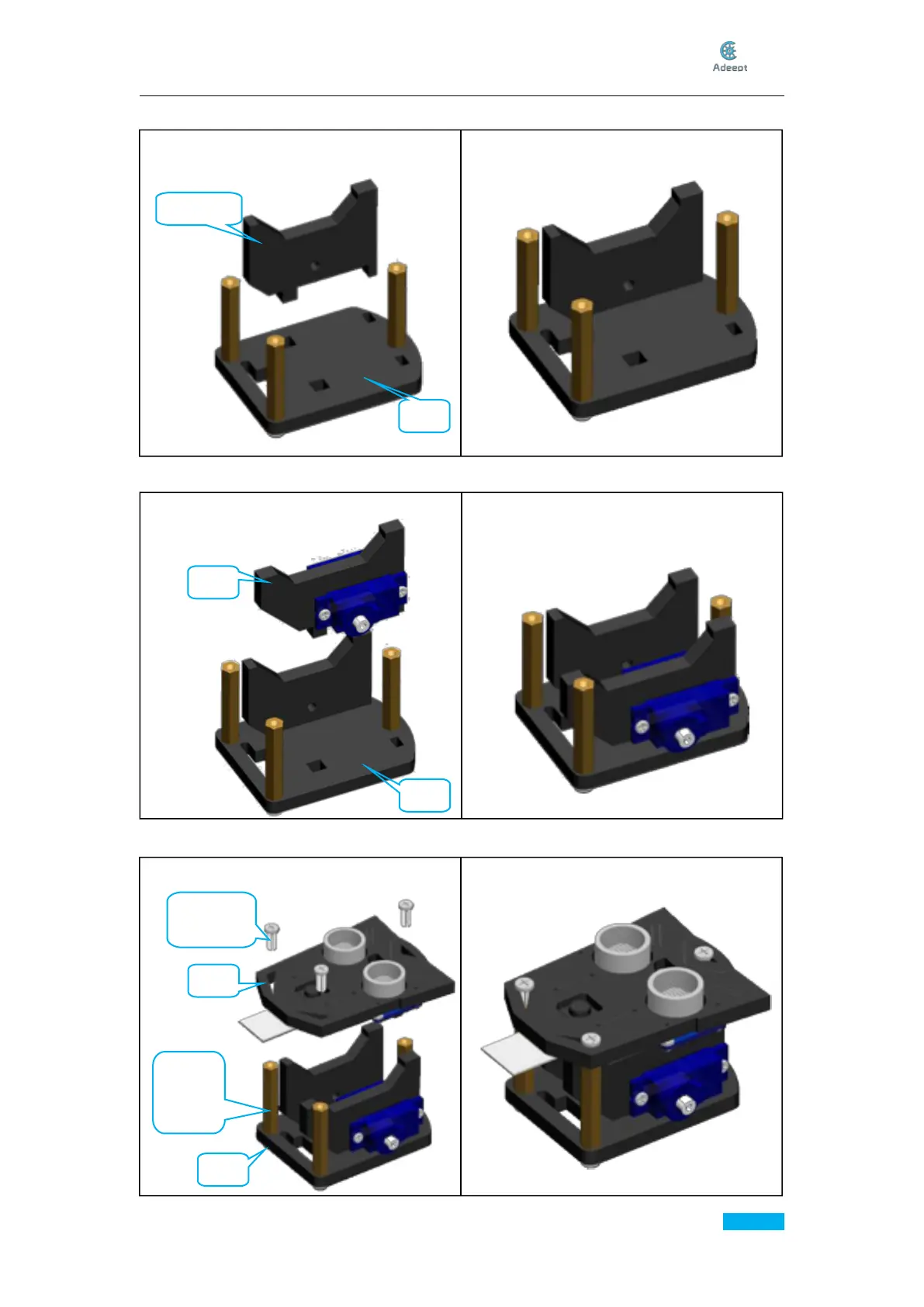

5. Insert A16 into A17.
6. Insert A15 into A17.
7. Fix the A18 to the M3*30 Copper Standoff on the A17.
Assemble the following components
Effect diagram after assembling
A16 X1
A17
Effect diagram after assembling
Assemble the following components
A15
A17
Assemble the following components
Effect diagram after assembling
M3*8
Screw X3
A18
M3*30
Copper
Standoff
A17
