10. Select a 'cross' rocker arm and fix to the A12.
11. Then fix the rocker arm to the servo assembled with A09.

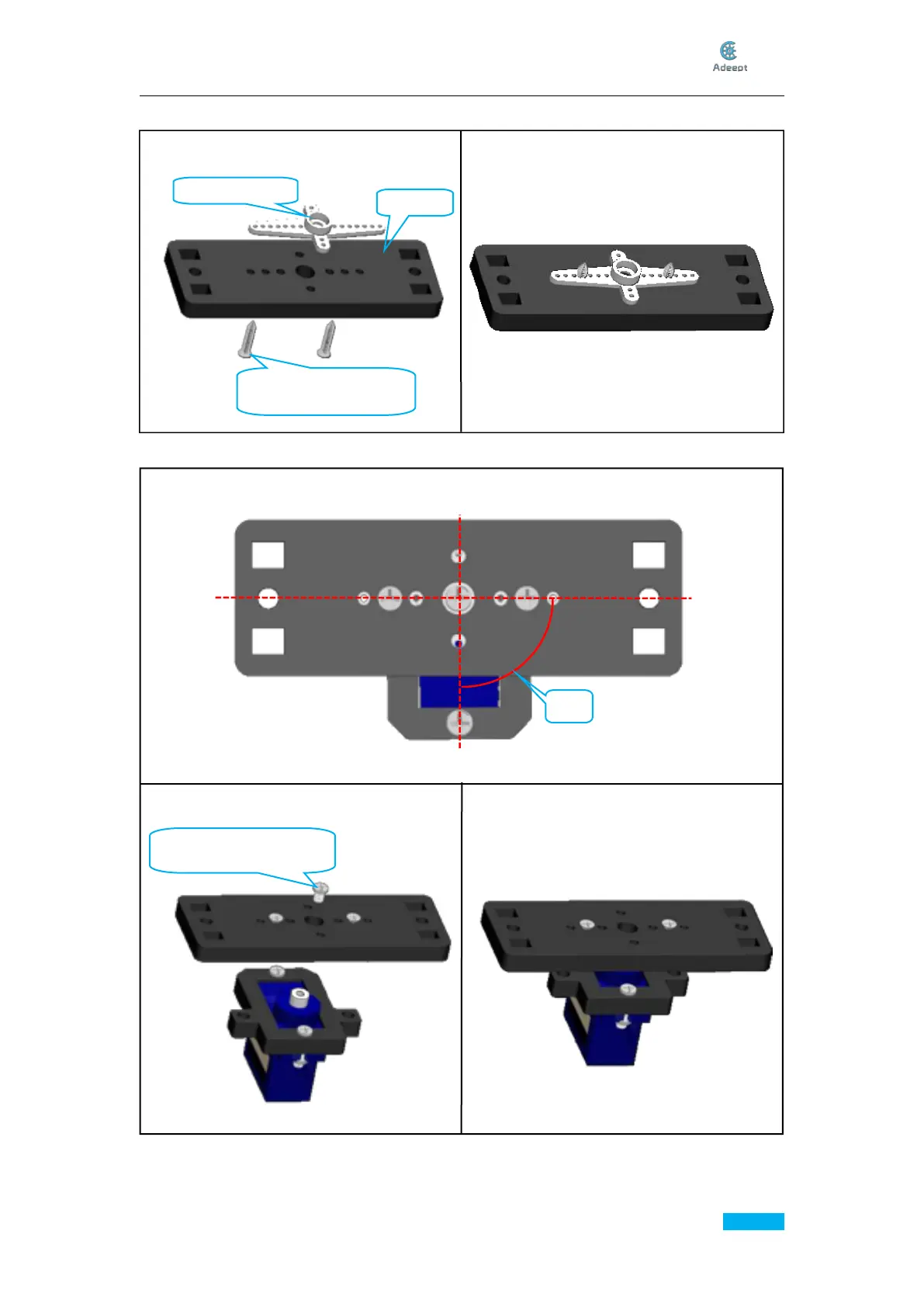

Assemble the following components
Effect diagram after assembling
Rocker arm x1
A12 x1
Self-tapping screw
packaged with servo
x2
Install the rocker arm on the servo at the angle as shown in the picture.
.
90°
Effect diagram after assembling
Assemble the following components
Fixing screw packaged
with servo x1
