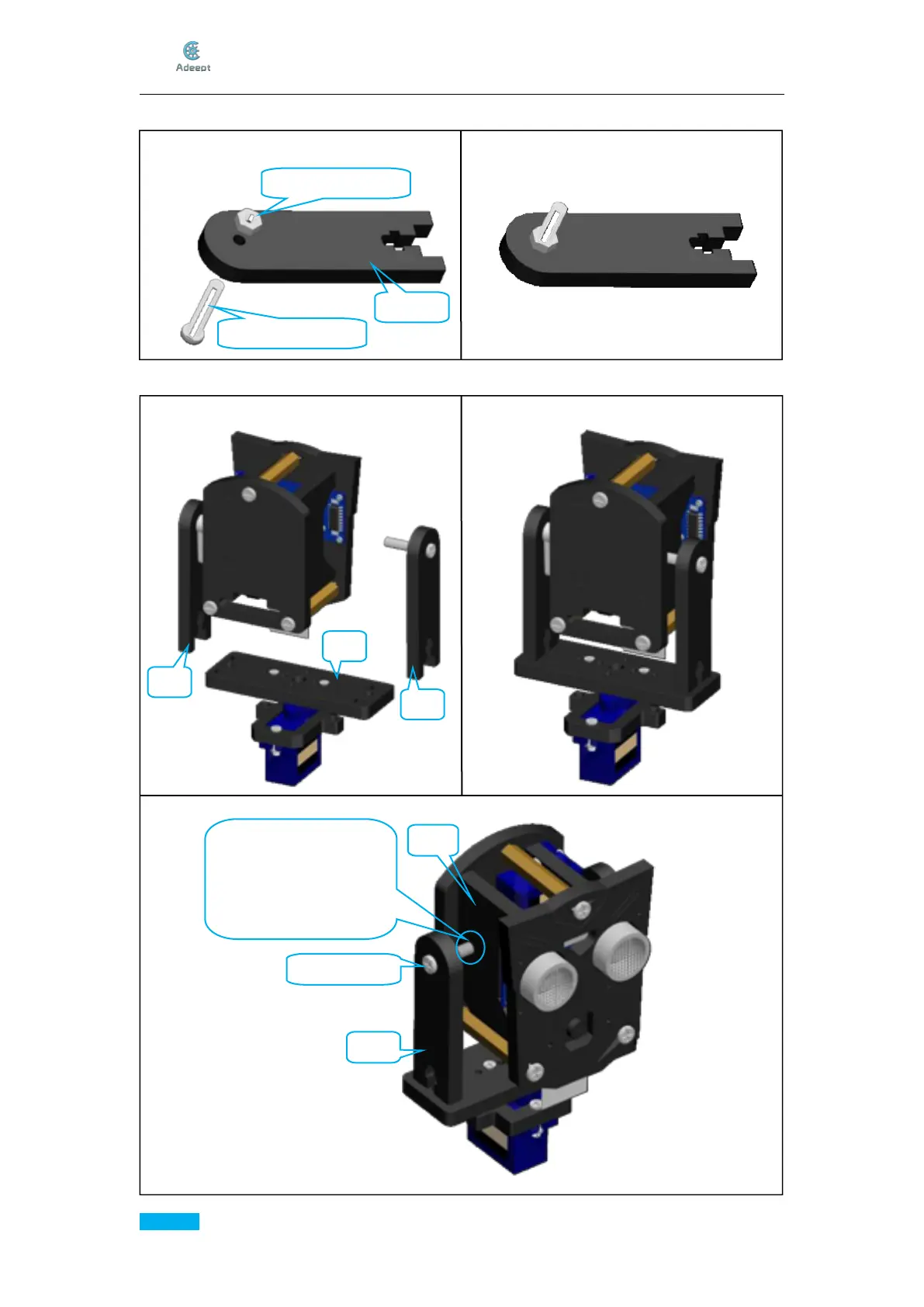

12. Fix M3*18 Screw on A14.
13. Insert A13, A14 into A12.
Effect diagram after assembling
Assemble the following components
M3 Nut x1
A14 x1
M3*18 Screw x1
Effect diagram after assembling
Assemble the following components
A12
A13
A14
A16
Insert the M3*18 Screw
on the A14 into the round
hole on the A16.
M3*18 Screw
A14
