43

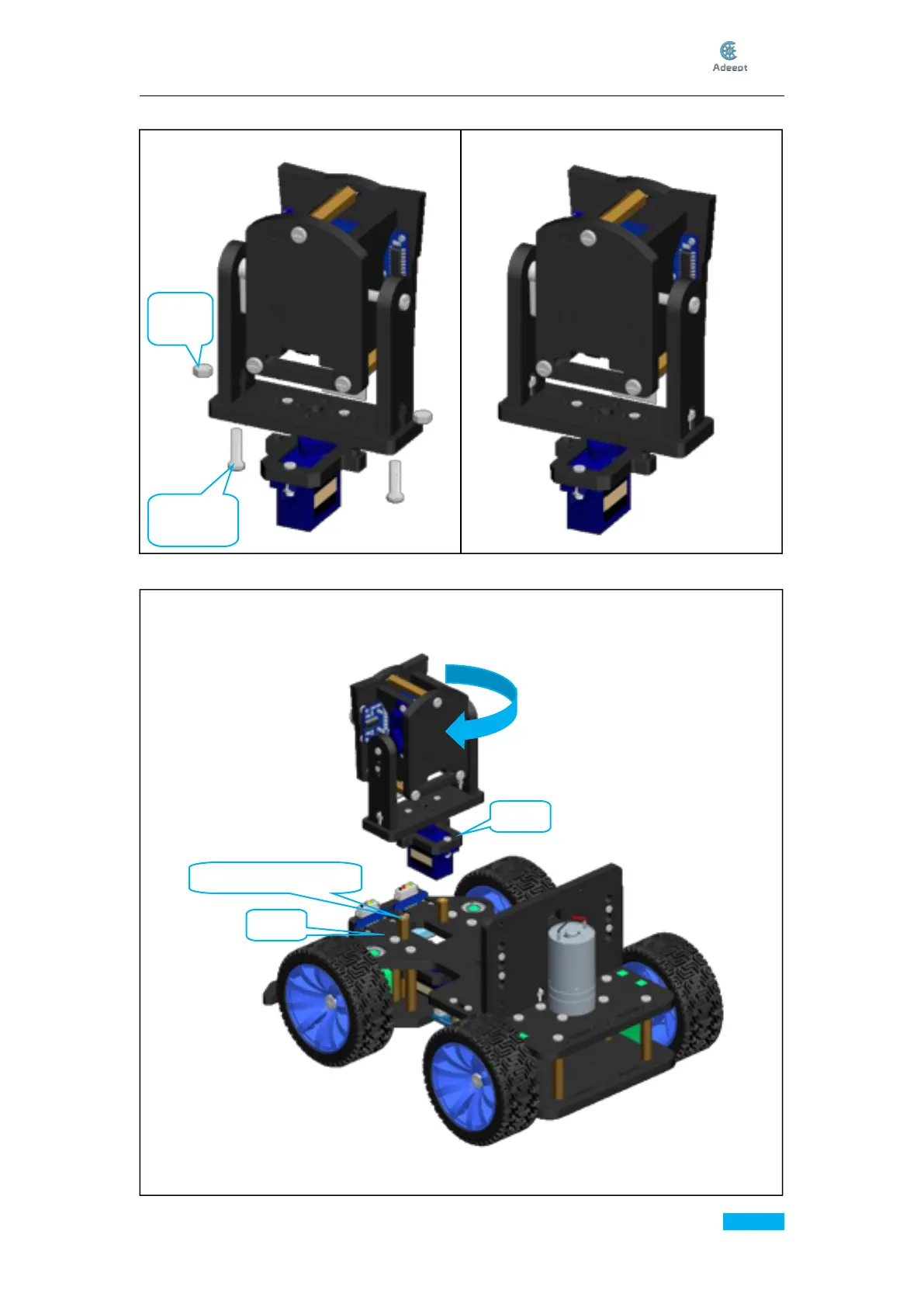

14. Then use A3*12 Screw to fix A13 and A14 to A12.
15. Fix the assembly completed in the previous step on the M3*12 Copper Standoff on the A1.
Assemble the following components
Effect diagram after assembling
M3 Nut
x2
M3*12
Screw x2
First rotate the upper part of the Servo 90° clockwise. Then align the mounting holes on the
A09 with the M3*12 Copper Standoff.
A09
M3*12 Copper
A01
