Adept Lynx Platform User's Guide, Rev D
Page 100 of 126
Chapter 8: Maintenance
The battery compartment door is capable of being locked. You may need to unlock it
before opening.
3.
Disconnect the power and data cables before removing the battery.
See the following figure.

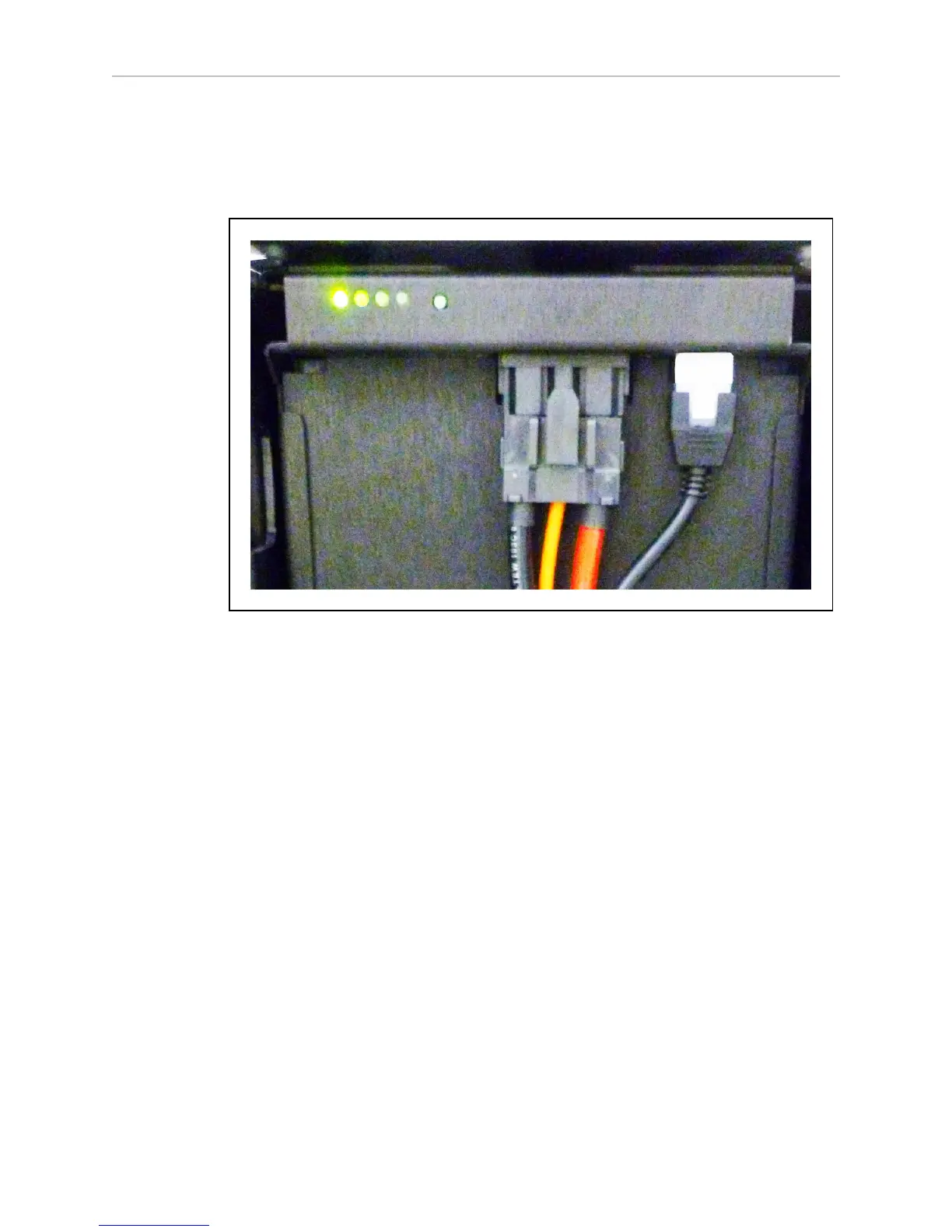

Figure 8-5. Battery Cable Connectors
4.
Slide the battery back and out of the platform.
There is a hand grip at the front and the rear of the battery, to help you lift it.
Installation
Refer to Removing and Installing Covers in the Maintenance section for cover removal and
installation.
1.
Remove the inner rear platform cover.
a.
Pull the bottom of the cover away from the platform chassis.
This is easiest if you grip it with two hands, toward the center.
b.
Lower the cover down, so its top tab clears the rear outer cover.
2.
Unlatch and open the battery compartment door, at the back of the platform.
The battery compartment door is capable of being locked. You may need to unlock it.
