Chapter 2: Setup
Lynx Platform
The docking station, joystick, and platform are shipped in the same crate.
Retain all parts removed for possible reassembly.
1.
Remove the lag screws holding the front of the crate cover to the pallet.
The front can be identified by the four spring-loaded latches holding it to the rest of the
crate cover.
2.
Undo the four spring-loaded latches and remove the front of the crate cover.
Set the front aside. This will be used as a ramp later in this procedure.
3.
Remove the lag screws that attach the remainder of the crate cover to the pallet.
4.
Lift and slide off the crate cover to reveal the crate, pallet, and contents.
5.
Unscrew both eyebolts that screw down through the front and rear braces and into the
chassis support board. There is one at each end of the Lynx platform.
Eyebolt
Hanger Bolts
Chassis
Support
Board
Front Brace
Wing
Nut
Top
Board
Wing
Nut

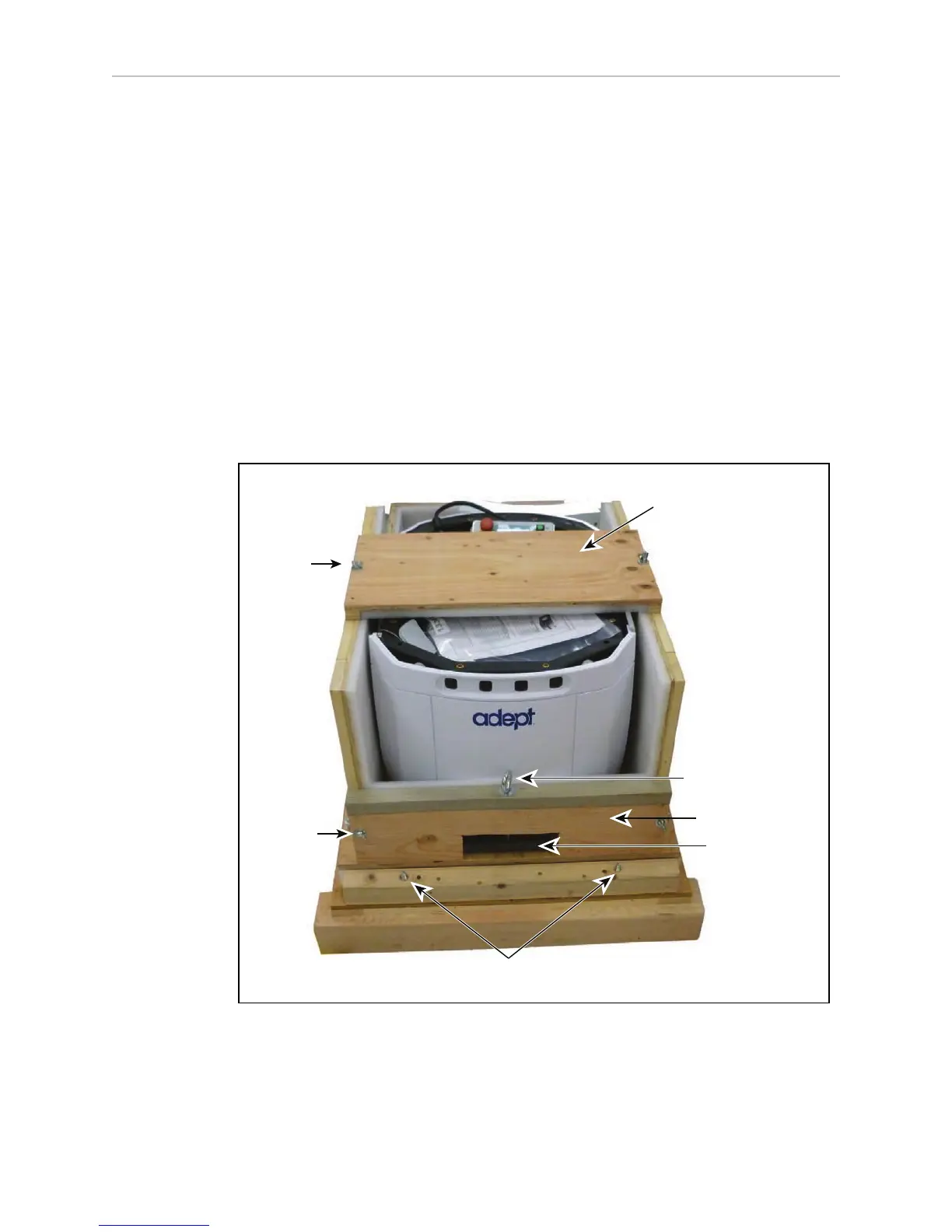

Figure 2-2. Front of Crate, Showing Front Eyebolt and Hanger Bolts
This will lower the platform body so its full weight is on its wheels and casters.
