Adept Lynx Platform User's Guide, Rev D
Page 24 of 126
Chapter 2: Setup
The chassis support board runs between the two Lynx platform drive wheels, and is
used to support the platform during transit.
Completely remove the eyebolt at the front brace (Lynx battery end).
6.
Remove the two wing nuts and washers holding the front brace to the crate.
The front brace is on the end of the crate that houses the Lynx platform, rather than the
docking station and accessories.
7.
Install the battery in the Lynx platform.
Refer to Installing the Battery on page 25.
8.
Remove the two wing nuts from the top board, which spans the width of the crate, over
the platform.
Remove the top board.
9.
Place the front of the crate cover in front of the Lynx platform, to serve as a ramp.
Two holes in one end of the ramp go over hanger bolts that stick up from the crate base.
The other end of the ramp has a short taper at its end.
Ramp/Front of
Crate Cover
Strike for
Spring-loaded
Latch (1 of 4)
Chassis Support Board
Hanger Bolts
visible through
Holes in Ramp

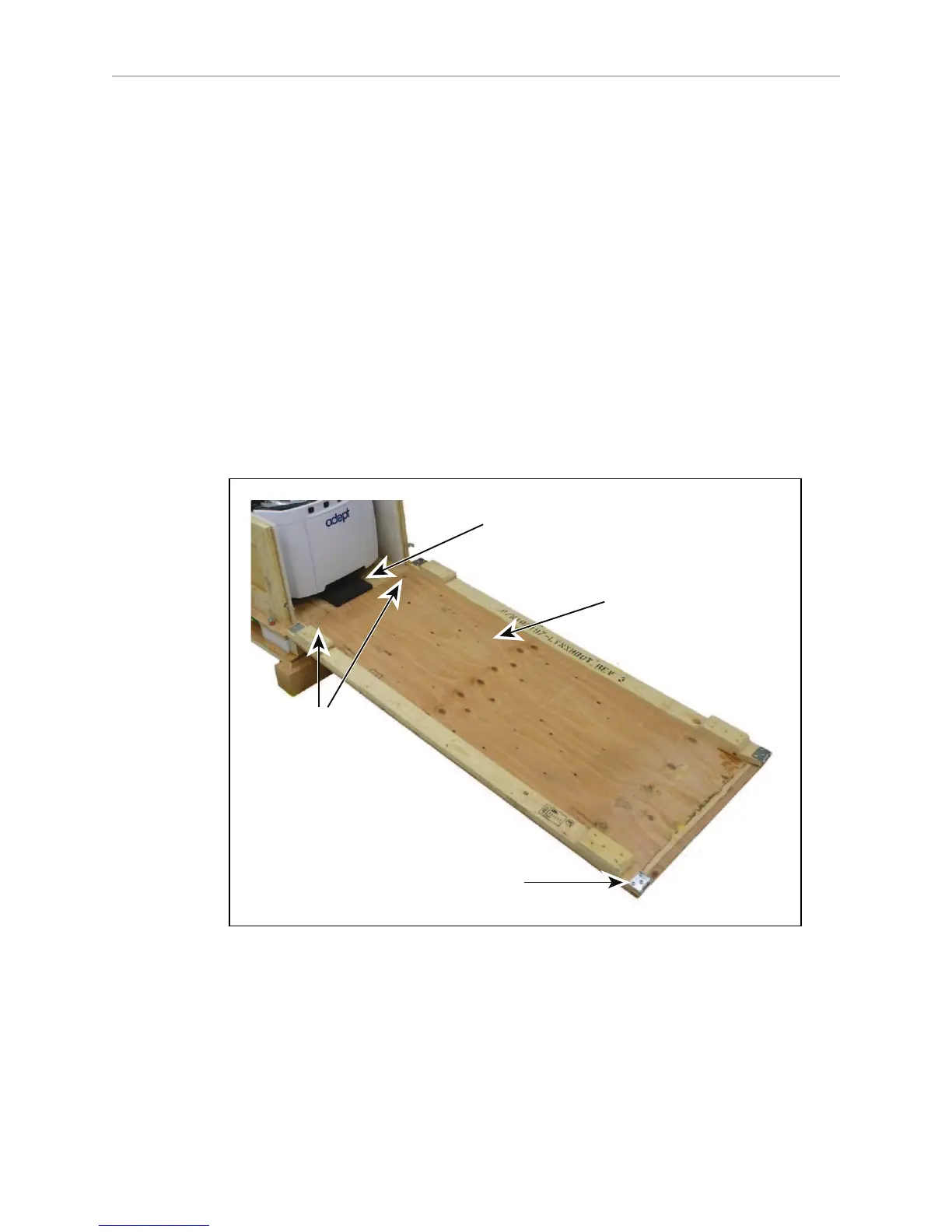

Figure 2-3. Crate with Ramp Attached
10.
Press the E-Stop on the Operator panel, then press and hold the brake release button.
Roll the platform onto the ramp and onto the floor.
To Next Page
