The fuse assembly can be removed by squeezing the two tabs toward each other, and pulling it
away from the docking station. See the following figure.

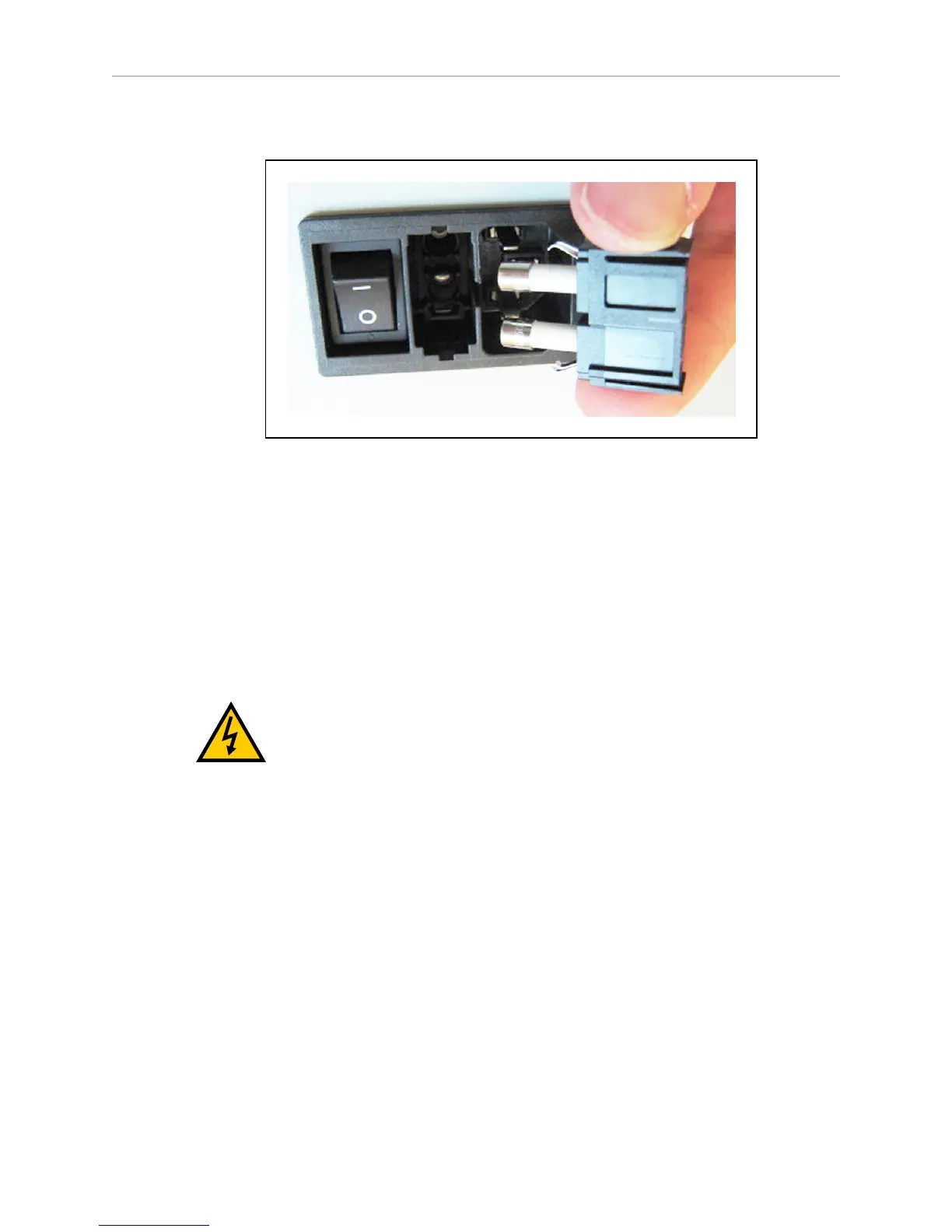

Figure 8-10. Docking Station Fuse
The fuses are available from Adept as p/n 02212-000L. Equivalent fuses are available gen-
erically. The fuses need to be 250 V, 10 A, and Time-lag. An example of a fuse that meets this
is:
LittelFuse 0215010.XP, 5x20 mm cartridge type
Docking Station Internal Fuse
Symptoms: When the docking station is switched on, the blue power light does not come on,
but the docking station can charge a battery manually.
WARNING: Unplug power from the docking station before starting.
The docking station cover is NOT interlocked. Remove the power cord at
the charger.
1.
Remove the ten screws from the back cover of the docking station.
Two of these are on the sides, near the bottom.
