Adept Lynx Platform User's Guide, Rev D

Page 121 of 126

Chapter 9: Technical Specifications

9.1 Dimension Drawings

499

19.6

380

15.0

1.9

200

7.9

Units are in mm [in.]

697

27.4

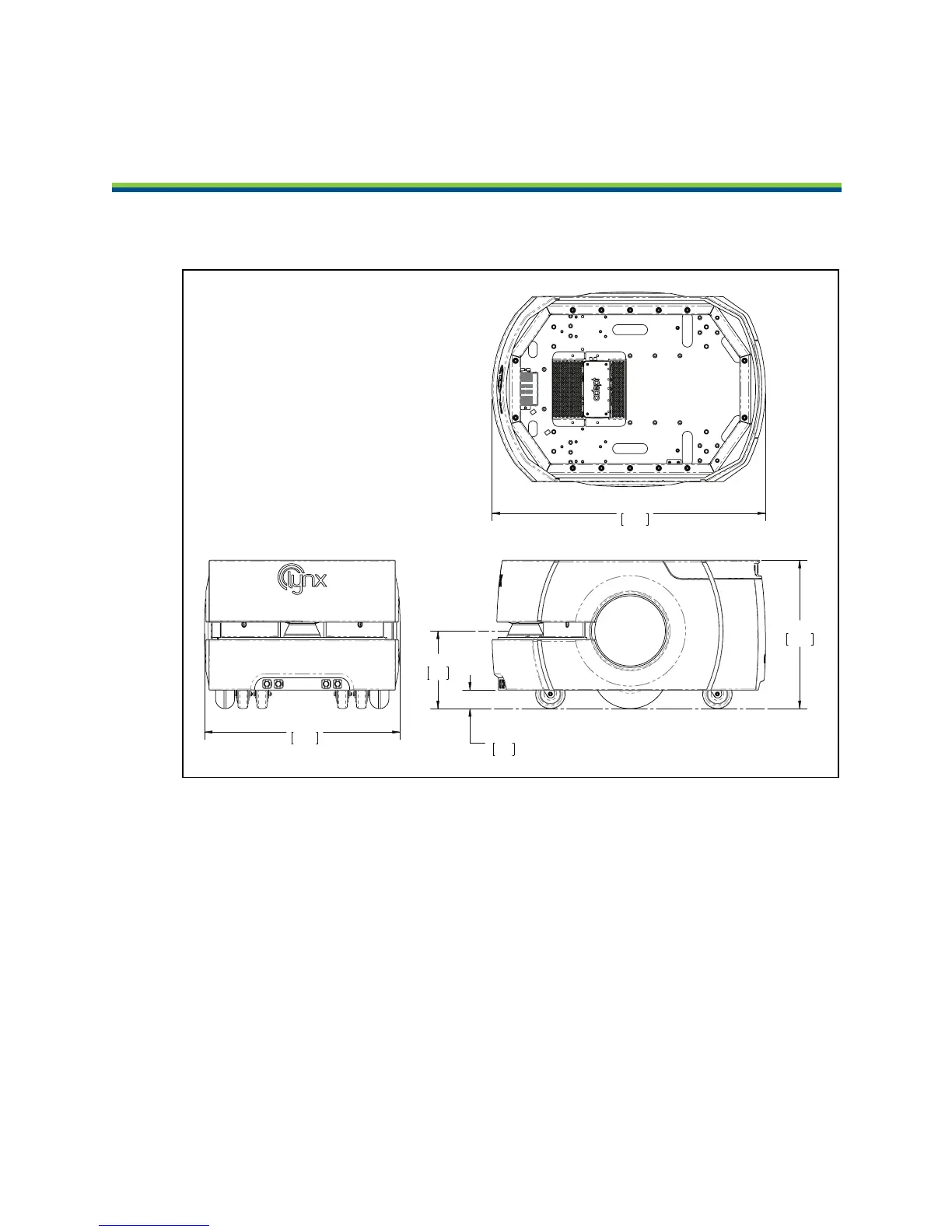

Figure 9-1. Adept Lynx Platform Top, Side, and Front Dimensions
