Adixen ASM 142 D - Configuration

5 /3
C 410
Headphone and loudspeaker
GB 00633
-
Edition 03
- June
08
Configuration The operator can deactivate or not the internal loudspeaker when he
uses a headphone.
In the
same way, he can deactivate or not the internal loudspeaker
when he
uses an external loudspeaker.
The functions are selected on the I/O interface board.
• • ST3
• • ST2
P1
ST 3
ST 2
P1

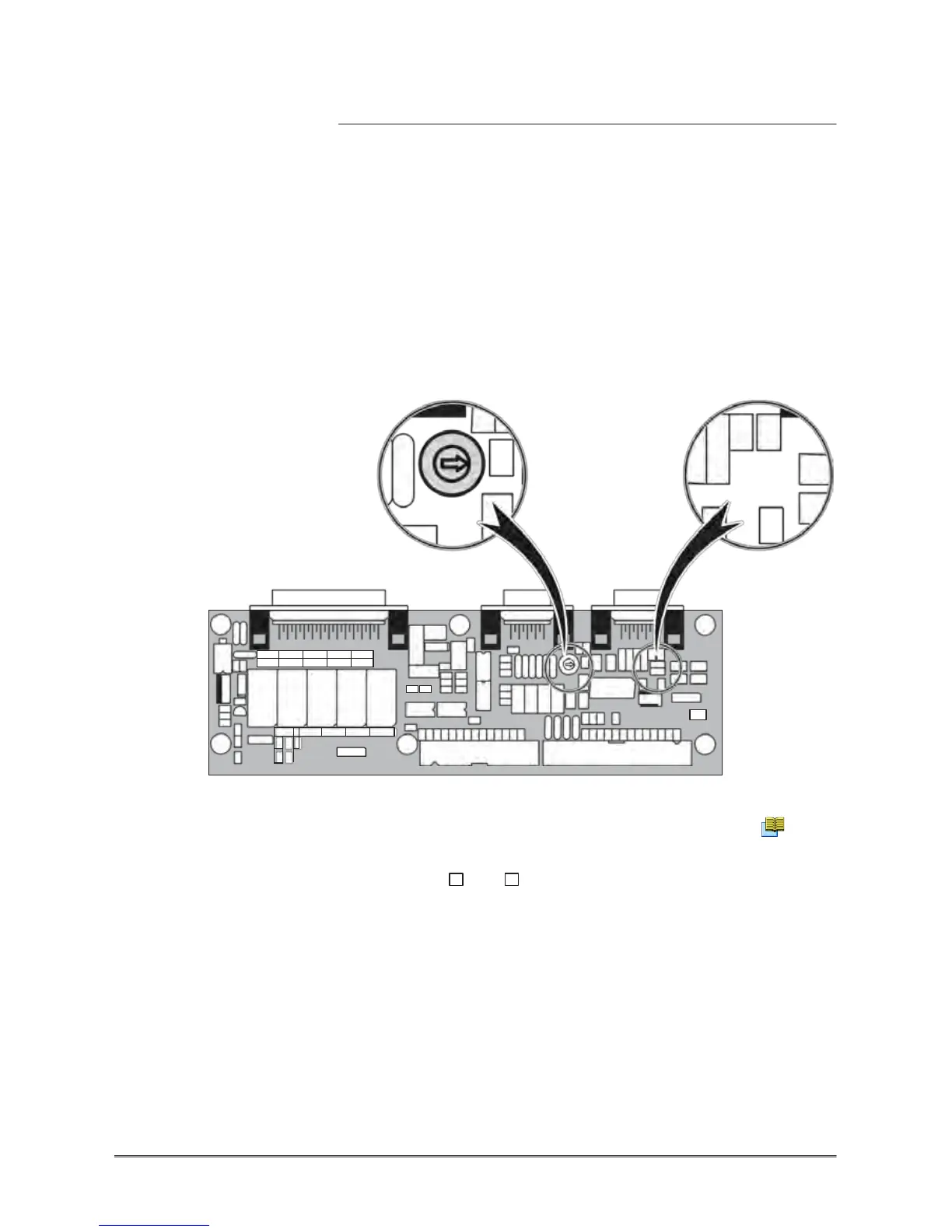

P0307 board
P0307 board localization F 400
• The operator can adjust the headphone audio level with P1 or with
panel control ( + and
- ).
2 /3
