Adixen ASM 142 D - Remove and Change the Oil Mist Eliminator

To Next Page

To Previous Page

750

Primary pump

maintenance

00239

Edition 04

December

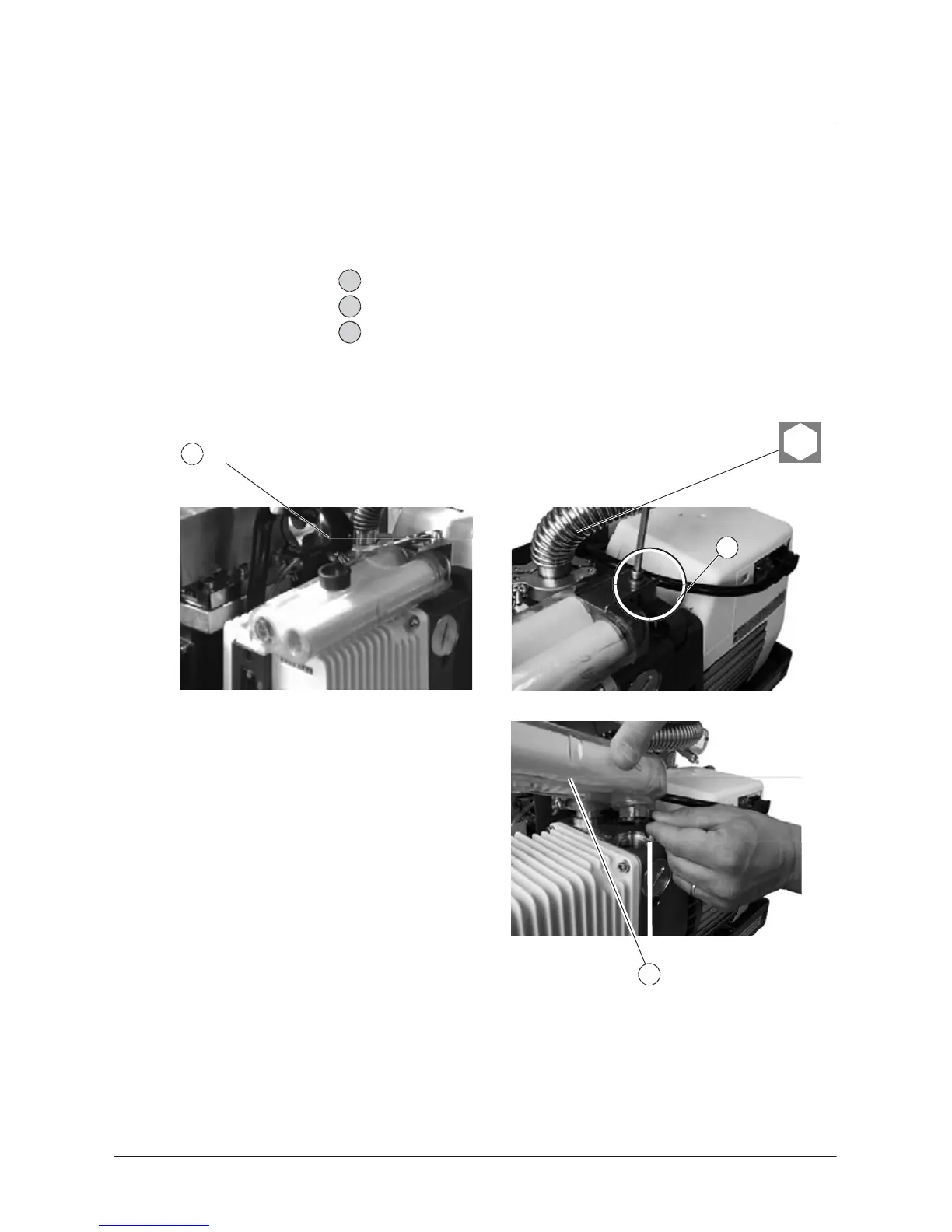

Remove and

change

the oil mist

eliminator

the

cartridge

saturated:

Remove the clamping ring and the exhaust plastic

pipe.

Remove the tightening screw

M5.

Remove and

change

the oil mist eliminator and

seal.

Exhaust plastic tube

Oil mist eliminator and

seal
