Adixen ASM 142 D - Disassemble the Filaments; Disassemble the Electron Collector

To Next Page

To Previous Page

400

Basic maintenance

of the analyzer cell

GB 00046 -

Edition

07 -

June

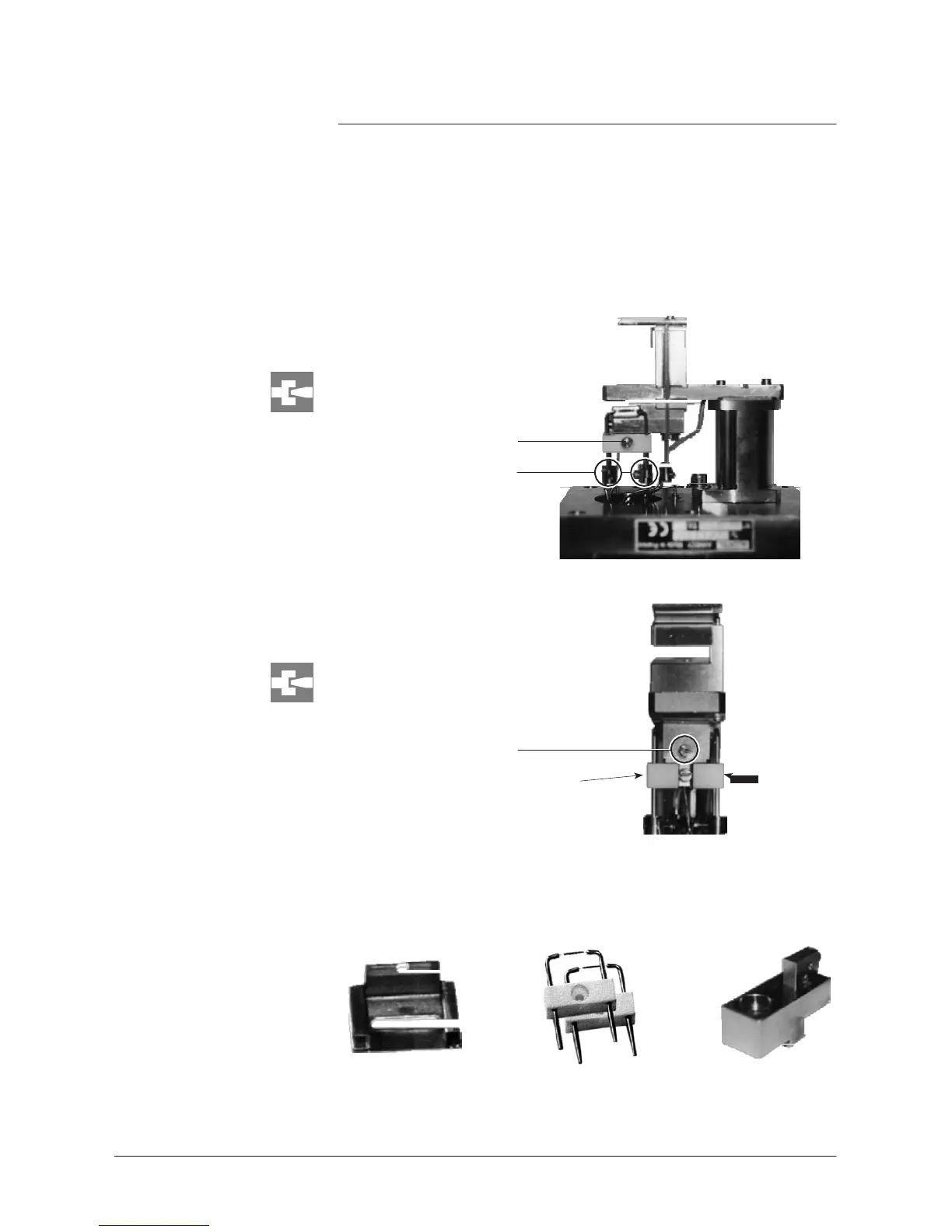

Disassemble

the

filaments

For each filament:

Remove

the

attachment

screw

and

unfasten

the 2 connection

screws.

Attachment screw

Connection

screws

Disassemble

the

electron

collector

Remove

the

attachment

screw.

Attachment

screw

Filament

Electron

collector Filaments Ion emitter

3/8
