Adixen ASM 142 D - Access Level 1; Access to the Internal Components ASM 142; ASM 142 S; Removable Cover

E 110
Access to the internal components
ASM 142 / ASM 142 S
GB
00238
-
Edition 04
-
February
06
Access level 1
Removable cover

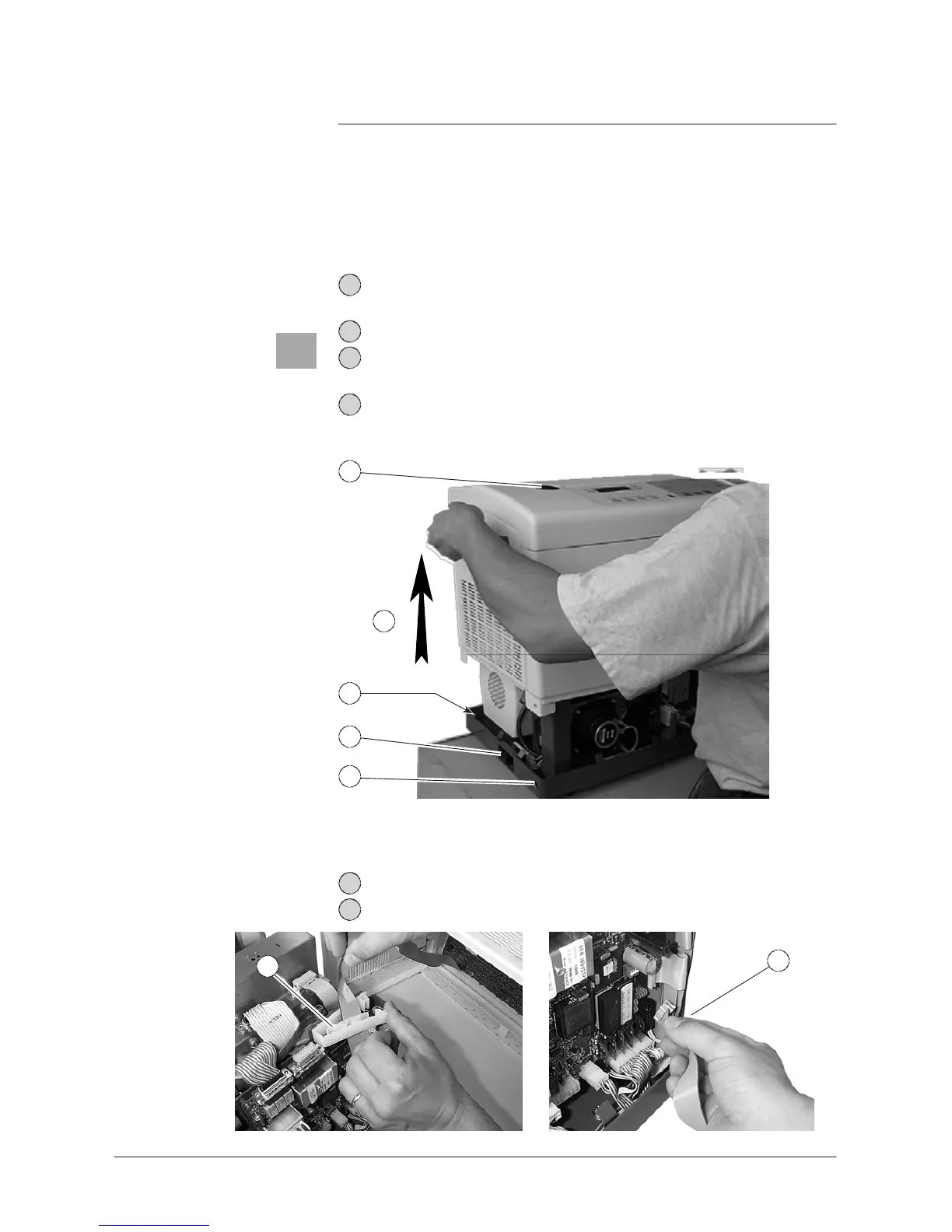

1 Switch off the machine by setting the main switch to «0» and
disconnecting the main power .
2 Remove the inlet port clamp.
5
3 Unfasten the 4 securing screws and their washers using a 5 mm
Allen key. Use
a 5mm Allen wrench.
4 Remove upper the cover. Be careful of the front panel cable.
2
4
3
1
3
Put the cover near the detector .
5 Open the «clip» for ribbon cable.
6 If necessary, disconnect the 20 points connector .
5
6
/4
