Adixen ASM 142 D - Graphic Interface Description; Selection Keys

C
440
Control panel with graphic inter face
6 / 14
GB 02669
-
Edition 03
- June
08

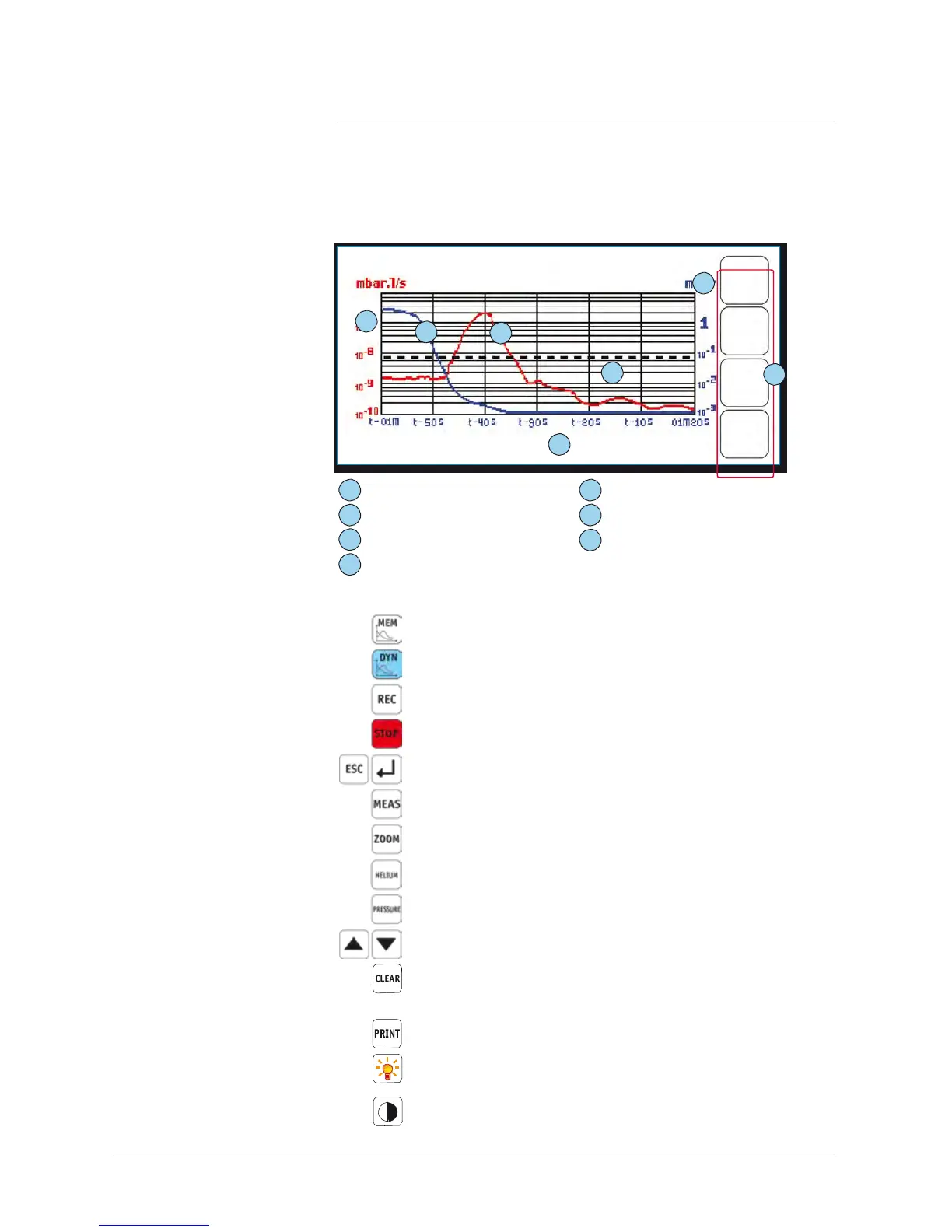

Graphic inter face
description
3
1
4
2
5
7
6
1
Helium signal scale
2 Helium signal (red curve)
3
Inlet pressure scale
4
Inlet pressure (blue curve)
5
Reject threshold (black curve)
6
Time scale
7 Selection keys: see details
below
Selection keys
Access to the memorized graph display
Access to the dynamic graph display
Start recording a graph
Stop recording a graph
Return to the previous screen or the standard interface
Exact value display for a selected point
Zoom on the
selected area
Helium signal curve selection
Inlet
pressure curve selection
T arget moving
Deletion of the curve displayed on the screen
A
message is displayed in order to confirm the operation.
Memorized graph recording
Access to the leak detector vacuum diagram
Contrast adjustment
