Adixen ASM 192 T2D PLUS - 24 V DC Power Supply

B 300
Controlling the detector with the I/O
interface
2/2
Alcatel Vacuum Technology France - ATH 200 User’s Manual
GB 00979 - Edition 05 - March 04

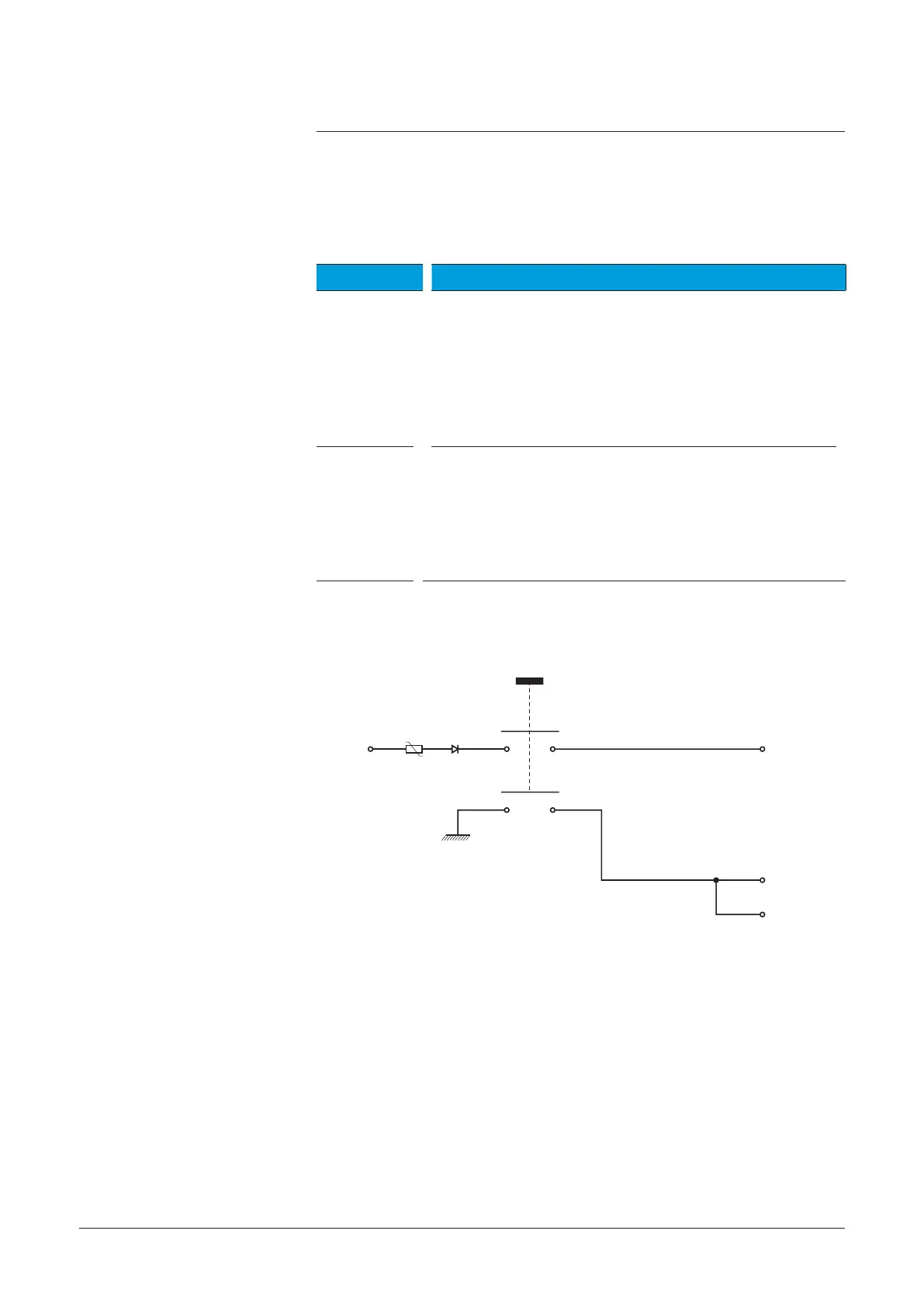

24 V DC Power supply
J3.25
SW2
+ 24 V
F1
350 mA
J3.21
J3.24
GND
detector
Pin No
24 V DC power supply
25 If SW1 on P0344 interface board is closed
(upper position)
 +24V DC (maximum current 350 mA)
supplied by leak detector
If SW2 is open (lower position)
 (+) point for customer external power supply (24 V)
24, 21
If SW2 on P0344 interface board is closed (upper
position)
 External ground
If SW2 is open (lower position)
 (-) point for customer external power supply
