Adixen ASM 192 T2D PLUS - Connecting the Detector Directly to a Printer or Another Device; Purpose of the Printer Interface; Location of the Printer Interface; Connector Description

GB 00216 - Edition 02 - September 04
1/5
Alcatel Vacuum Technology France - ATH 200 User’s Manual
B 320
Connecting the detector directly to a printer
or another device

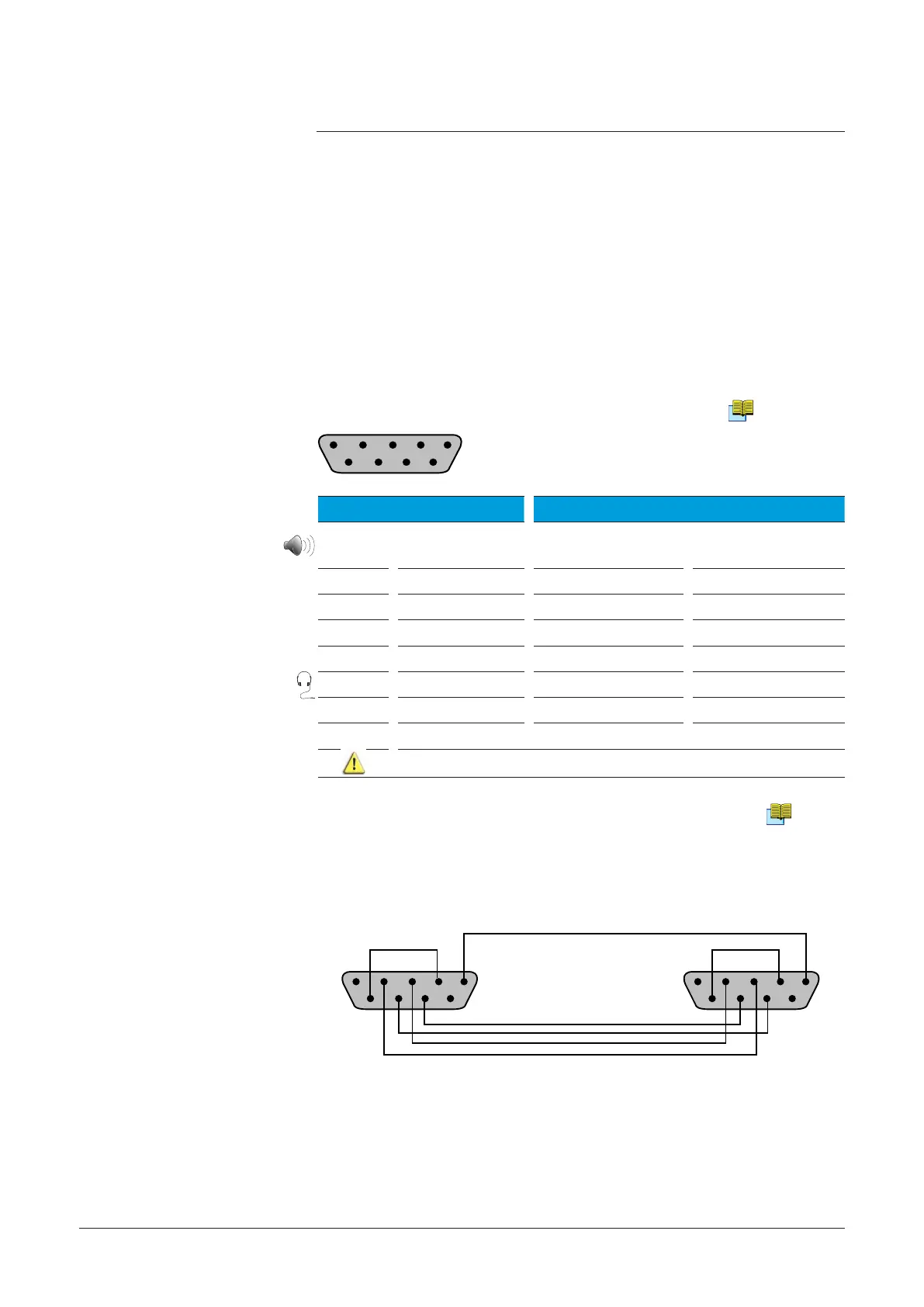

The Printer interface makes it possible to connect the leak detector to
a printer, an external loudspeaker or a headphone.
Configuration tickets are sent out.
1 5
6 9
1 5
6 9
Leak detector
Printer serial port
1 2 3 4 5
6 7 8 9
Pin # Function Communication protocol
1 External
loudspeaker
Mode Asynchronous
2 Rx Bauds 9600
3 Tx Bits 8
4 NA Parity None
5 Ground Stop bit 1
6 Headphone Parity control None
7 RTS
8 CTS
9
Internal use only. Don’t connect it
It is a Sub D 9 pin Male connector.
B 210/211
Purpose of the printer
interface
Location of the printer
interface
Communication mode
description
Connection
to the printer
Connector description
Headphone and loudspeaker C 410
Alcatel Vacuum Technology France - User's Manual ASM 182/192 TD+ - ASM 192 T2D+
