Adixen ASM 192 T2D PLUS - Pre-Operation Checks

GB 01667 - Edition 02 - September 04
1/2
B 400
Before starting up the leak detector
ASM 182 series
Fuse: 100 - 130 V…… 6.3 A
200 - 240 V…… 3.15 A
10
mbar mbar.l/s
-3
10
-12
10
-11
10
-10
10
-9
10
-8
10
-7
10
-6
10
-5
10
-4
10
-3
10
-2
10
-2
10
-1
1
10
1
10
2
10
3
CYCLE
INLET
VENT
SNIF
HIGH
TEST
ZEROCOR
AUTO CAL
ZERO

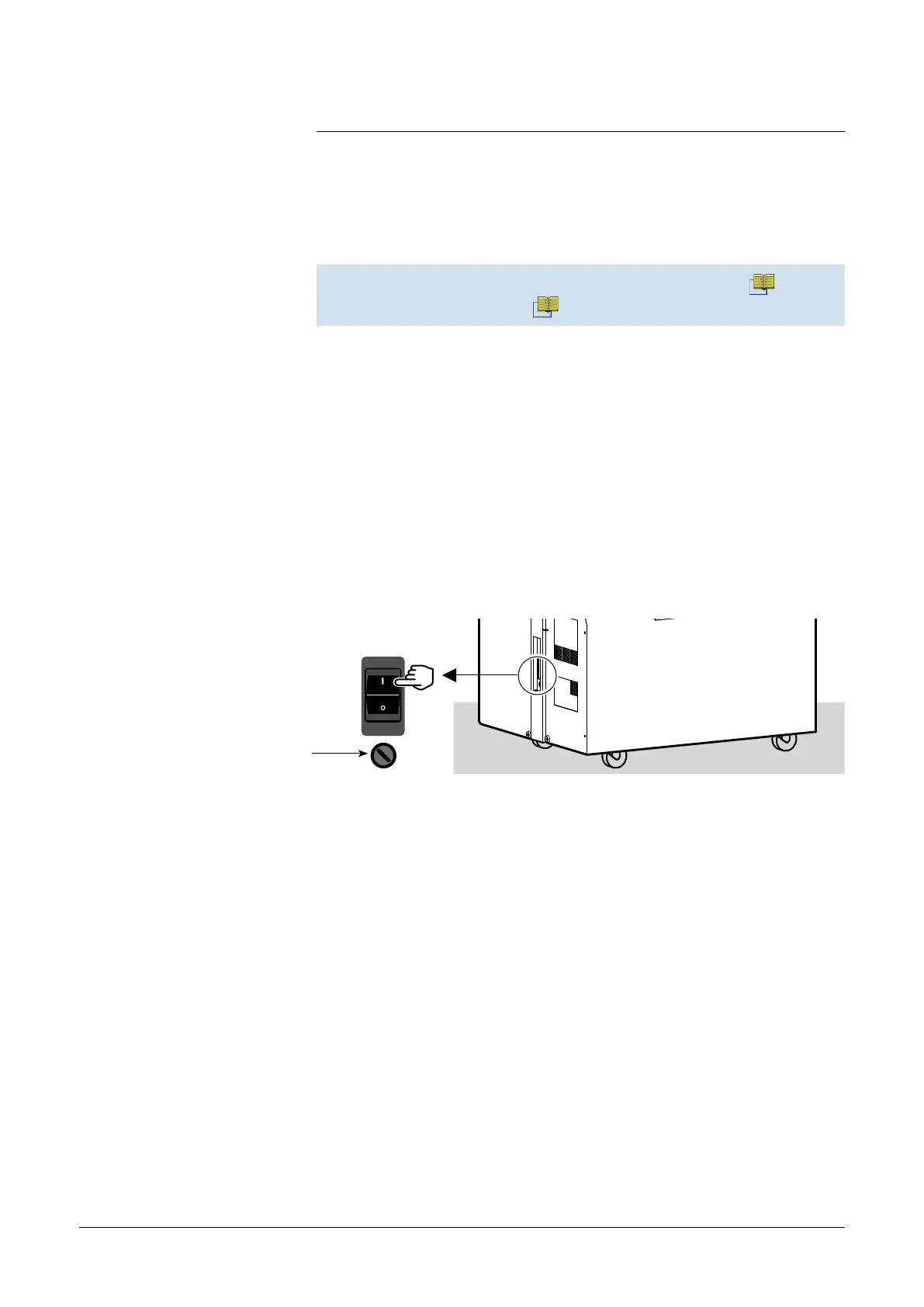

Main power switch
Fuse location
Position the unit so there is no possible risk of it falling or tilting.
The leak detector is equipped with 4 pivoting wheels without brake,
(2 wheels with brake on the console version).
So:
If the detector is placed on a high surface, the operator should take
care to lock the wheels of the detector.
It’s forbidden to place the leak detector on a sloping surface (> 1 %)
without take precautions for its translation stop.
Check power voltage
The performance of the detector (pumping speed, accuracy and
reliability) depends on:
- the vacuum connections
- the frequency and quality of maintenance
- the helium calibration.
Check that the power voltage is compatible with the power
configuration of the leak detector: check the indications of the label
located close to the power switch.
Installation
 

 
Alcatel Vacuum Technology France - User's Manual ASM 182/192 TD+ - ASM 192 T2D+
