ADTRAN MX2820 - Figure 2-4. Futurebus-To-Stub Cable Connector; Table 2-16. Futurebus Connector Map

Section 2, Engineering Guidelines - DSX-1 Connections
61186003L1-1D 2-19
The information in Figure 2-4 and Table 2-16 may be used to cross-reference the wire color
information in Table 2-14 with the pins of the FutureBus connector.

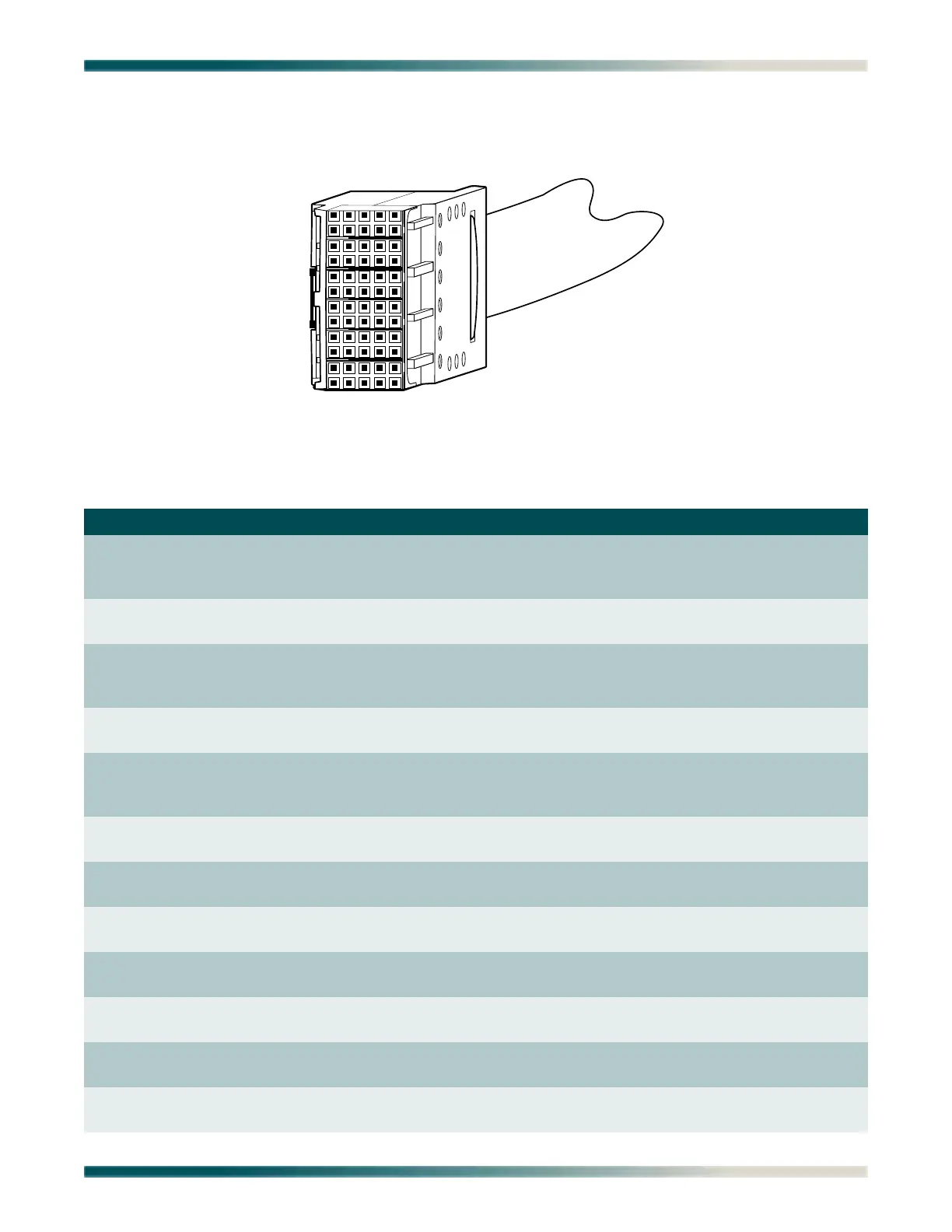

Figure 2-4. FutureBus-to-Stub Cable Connector
Table 2-16. FutureBus Connector Map
Future Bus A B C D E
1 Amphenol #28
Green (RNG28)
Amphenol #27
Orange (RNG27)
Amphenol #26
Blue (RNG26)
Amphenol #25
Slate (RNG25)
Amphenol #24
Brown
(RNG24)
2 Amphenol #60
White (TIP28)
Amphenol #59
White (TIP27)
Amphenol #58
White (TIP26)
Amphenol #57
Violet (TIP25)
Amphenol #56
Violet (TIP24)
3 Amphenol #23
Green (RNG23)
Amphenol #22
Orange (RNG22)
Amphenol #21
Blue (RNG21)
Amphenol #20
Slate (RNG20)
Amphenol #19
Brown
(RNG19)
4 Amphenol #55
Violet (TIP23)
Amphenol #54
Violet (TIP22)
Amphenol #53
Violet (TIP21)
Amphenol #52
Yellow (TIP20)
Amphenol #51
Yellow (TIP19)
5 Amphenol #18
Green (RNG18)
Amphenol #17
Orange (RNG17)
Amphenol #16
Blue (RNG16)
Amphenol #15
Slate (RNG15)
Amphenol #14
Brown
(RNG14)
6 Amphenol #50
Yellow (TIP18)
Amphenol #49
Yellow (TIP17)
Amphenol #48
Yellow (TIP16)
Amphenol #47
Black (TIP15)
Amphenol #46
Black (TIP14)
7 Amphenol #13
Green (RNG13)
Amphenol #12
Orange (RNG12)
Amphenol #11
Blue (RNG11)
Amphenol #10
Slate (RNG10)
Amphenol #9
Brown (RNG9)
8 Amphenol #45
Black (TIP13)
Amphenol #44
Black (TIP12)
Amphenol #43
Black (TIP11)
Amphenol #42
Red (TIP10)
Amphenol #41
Red (TIP9)
9 Amphenol #8
Green (RNG8)
Amphenol #7
Orange (RNG7)
Amphenol #6
Blue (RNG6)
Amphenol #5
Slate (RNG5)
Amphenol #4
Brown (RNG4)
10 Amphenol #40
Red (TIP8)
Amphenol #39
Red (TIP7)
Amphenol #38
Red (TIP6)
Amphenol #37
White (TIP5)
Amphenol #36
White (TIP4)
11 Amphenol #3
Green (RNG3)
Amphenol #2
Orange (RNG2)
Amphenol #1
Blue (RNG1)
12 Amphenol #64
Drain Wire
Amphenol #35
White (TIP3)
Amphenol #34
White (TIP2)
Amphenol #33
White (TIP1)
EDCBA
12
11
10
9
8
7
6
5
4
3
2
1
